CHM1DNXU

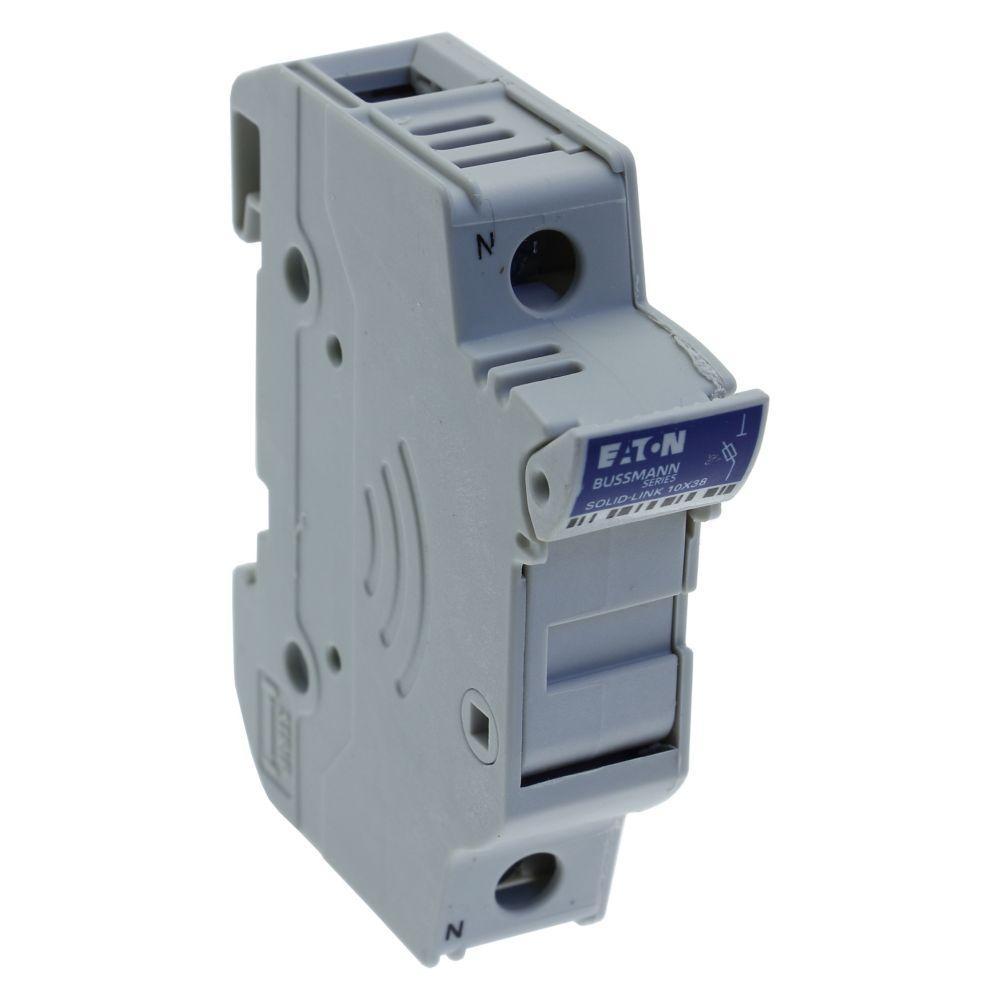

Bussmann CHM1DNXU Fuse Holder
Part Number # CHM1DNXU
SKU # 2234300
$469.92 / 12Each
Typical price:$955.56 / Each
Bussmann CHM1DNXU Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | CHM1DNXU |
| SKU #: | 2234300 |
| Amperage Rating: | 32, 32 A |
| Class: | CC/Midget |
| Dimensions: | 0.689 in W x 3.275 in D x 2.909 in H, 2.909 in H x 0.689 W x 3.275 in D |
| Fuse Diameter: | 10, 10 mm |
| Fuse Length: | 38, 38 mm |
| Number of Poles: | 1+N |
| Series: | CH Series, CHM |
| Suitable For Use With: | UL Class CC and Supplemental Fuses and IEC 10x38 Fuses |
| Temperature Rating (Degrees F): | -20 to 120, -20 to 120 deg C |
| Type: | Modular |
| Wire Size: | 18 to 4, 18 to 4 AWG |
| Connection type: | Screw |
| Country of origin: | CN |
| Mounting type: | DIN Rail |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121624 |
| UPC: | 00051712362580 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$469.92 / 12Each
Typical price:$955.56 / Each
Quantity:
- Bussmann Fuse Holder, Modular, Series: CHM, 690 V, 32 A, 1+N Pole, Class: CC/Midget, Screw, 18 to 4 AWG Wire, DIN Rail Mount, 38 mm Fuse Length, 10 mm Fuse Dia, -20 to 120 deg C, For Use With: UL Class CC and Supplemental Fuses and IEC 10x38 Fuses, 0.689 in W x 3.275 in D x 2.909 in H
CHM1DNXU Application
Electrical Assemblies, Panels and OEMs ApplicationsCHM1DNXU Item Features
- Enhanced safety with IP20 finger-safe construction
- Wiring flexibility with terminals rated for use with 75 deg C or 90 deg C solid, stranded and fine stranded wire, and spade terminals and comb busbars
- Fuse access door accommodates 4 mm lockout/tagout device
- Captive Phillips slot or optional hex head terminal screw
- Tool less ganging for multiple poles
- Wire strip gauge
- Dual conductor rated box lug clamp
- Without indication
- https://www.youtube.com/watch?v=YMvqUyoETXk
CHM1DNXU Standards
Contact Manufacturer,RoHS Compliant,Contact factorySKU #2234300Part Number #CHM1DNXUUNSPSC39121624UPC00051712362580
