Part Number # CHM2DIU
SKU # 2302970
Image Disclaimers Message
CHM2DIU

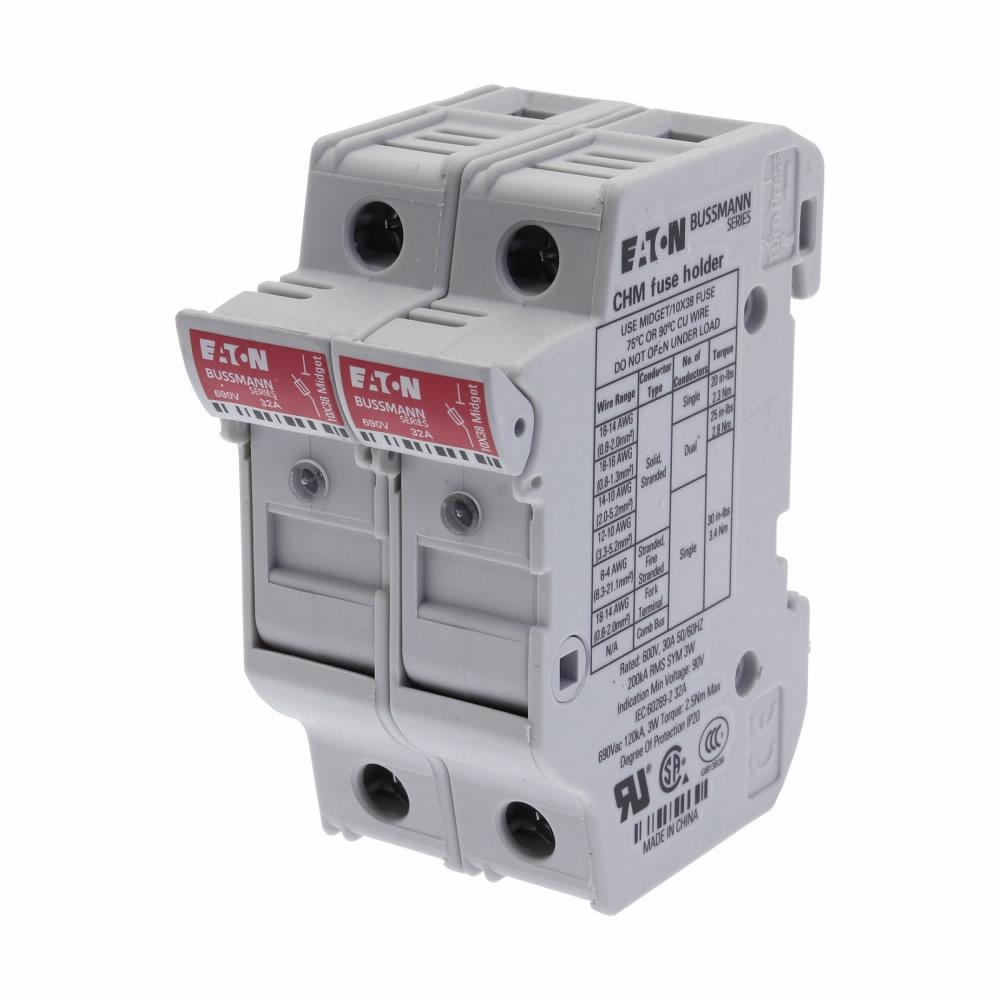

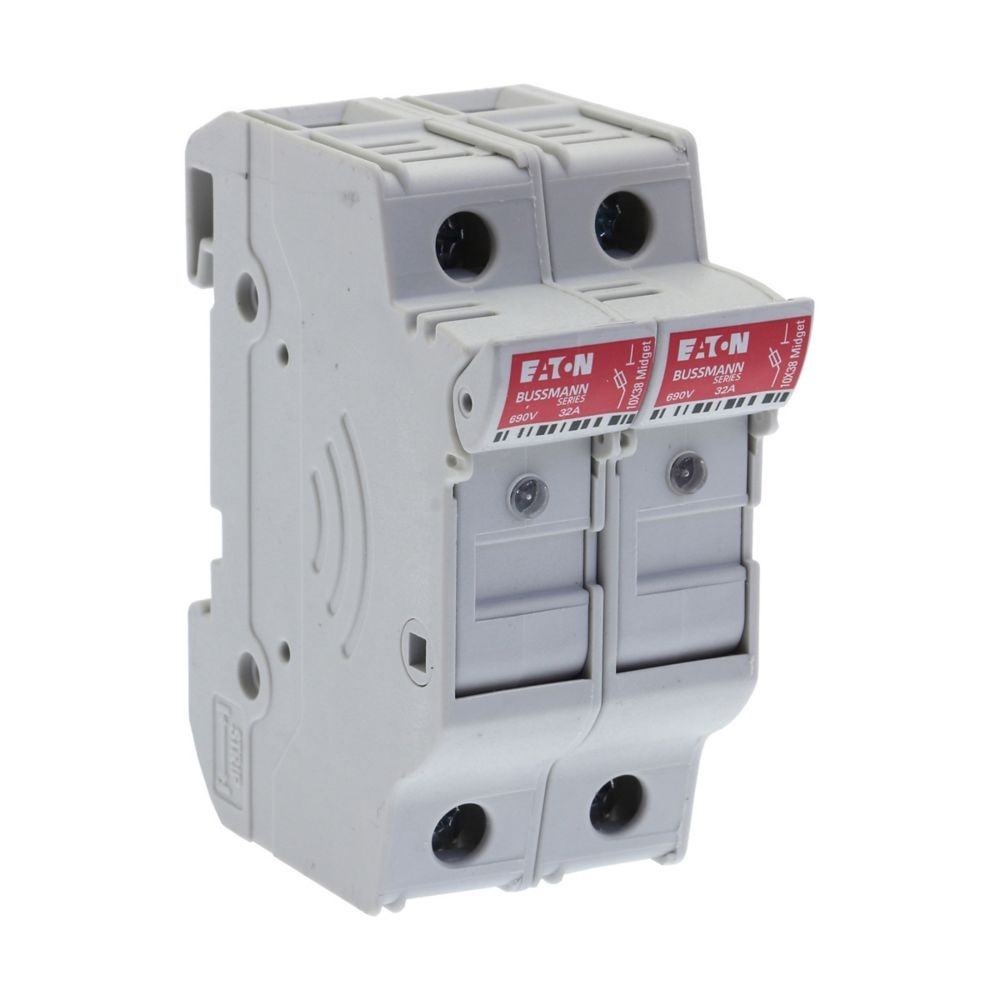

Bussmann CHM2DIU Fuse Holder
Part Number # CHM2DIU
SKU # 2302970
$693.54 / 6Each
Typical price:$1410.24 / Each
Bussmann CHM2DIU Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | CHM2DIU |
| SKU #: | 2302970 |
| Amperage Rating: | 30/32, 30/32 A |
| Class: | CC/Midget, Midget |
| Dimensions: | 1.378 in W x 3.275 in D x 2.909 in H, 2.909 in H x 1.378 in W x 3.275 in D |
| Fuse Diameter: | 10, 10 mm |
| Fuse Length: | 38, 38 mm |
| Number of Poles: | 2 |
| Series: | CH Series, CHM |
| Suitable For Use With: | AGU, C10G, C10M, BAF, BAN, FNM, FNQ, FWA, FWC, KLM, KTK, CHM Fuse, AGU/C10G/C10M/BAF/BAN/FNM/FNQ/FWA/FWC/KLM/KTK/CHM Fuse, FNQ, KLM, FNM, KTK, BAF, FWA, DCM, C10, AGU, BAN and FWC Series 10 x 38 mm Midget Fuse |
| Temperature Rating (Degrees F): | -20 to 90, -20 to 90 deg C |
| Type: | Modular |
| Wire Size: | 18 to 4, 18 to 4 AWG |
| Mounting type: | DIN Rail |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121624 |
| UPC: | 00051712362771 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$693.54 / 6Each
Typical price:$1410.24 / Each
Quantity:
- Bussmann Fuse Holder, Modular, Series: CHM, 600/690 V, 30/32 A, 2 Pole, Class: Midget, 18 to 4 AWG Wire, 38 mm Fuse Length, 10 mm Fuse Dia, -20 to 90 deg C, For Use With: AGU/C10G/C10M/BAF/BAN/FNM/FNQ/FWA/FWC/KLM/KTK/CHM Fuse, 1.378 in W x 3.275 in D x 2.909 in H
CHM2DIU Application
Electrical Assemblies, Panels and OEMs ApplicationsCHM2DIU Item Features
- UL Recognized midget and 10 x 38 holders with factory assembled neutral pole option
- Complete range of UL listed and high SCCR rated 1/3 ph finger safe combination busbars and power feed lugs
- 30 A, 600 VAC UL, 32 A, 690 VAC IEC rated
- https://www.youtube.com/watch?v=YMvqUyoETXk
CHM2DIU Standards
Contact Manufacturer,Contact factory,RoHS CompliantSKU #2302970Part Number #CHM2DIUUNSPSC39121624UPC00051712362771
