Part Number # CHM2DU
SKU # 2232171
CHM2DU

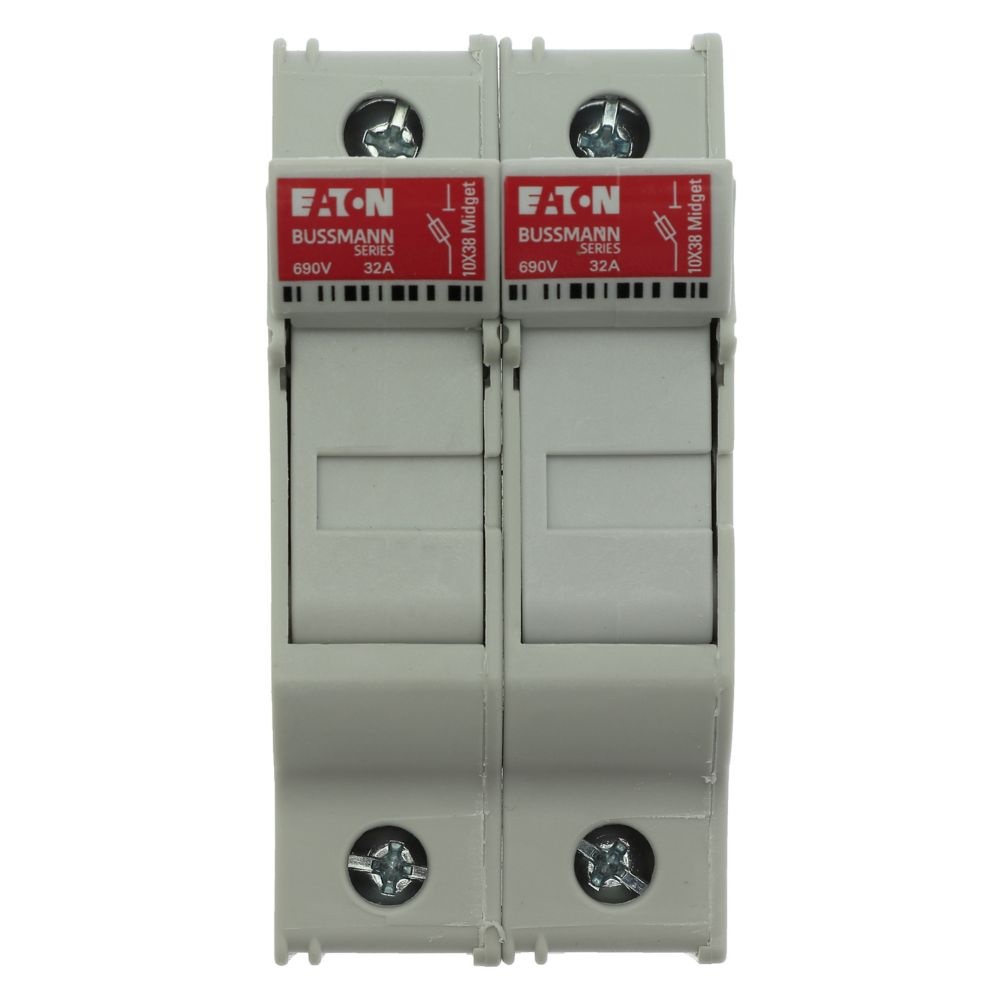

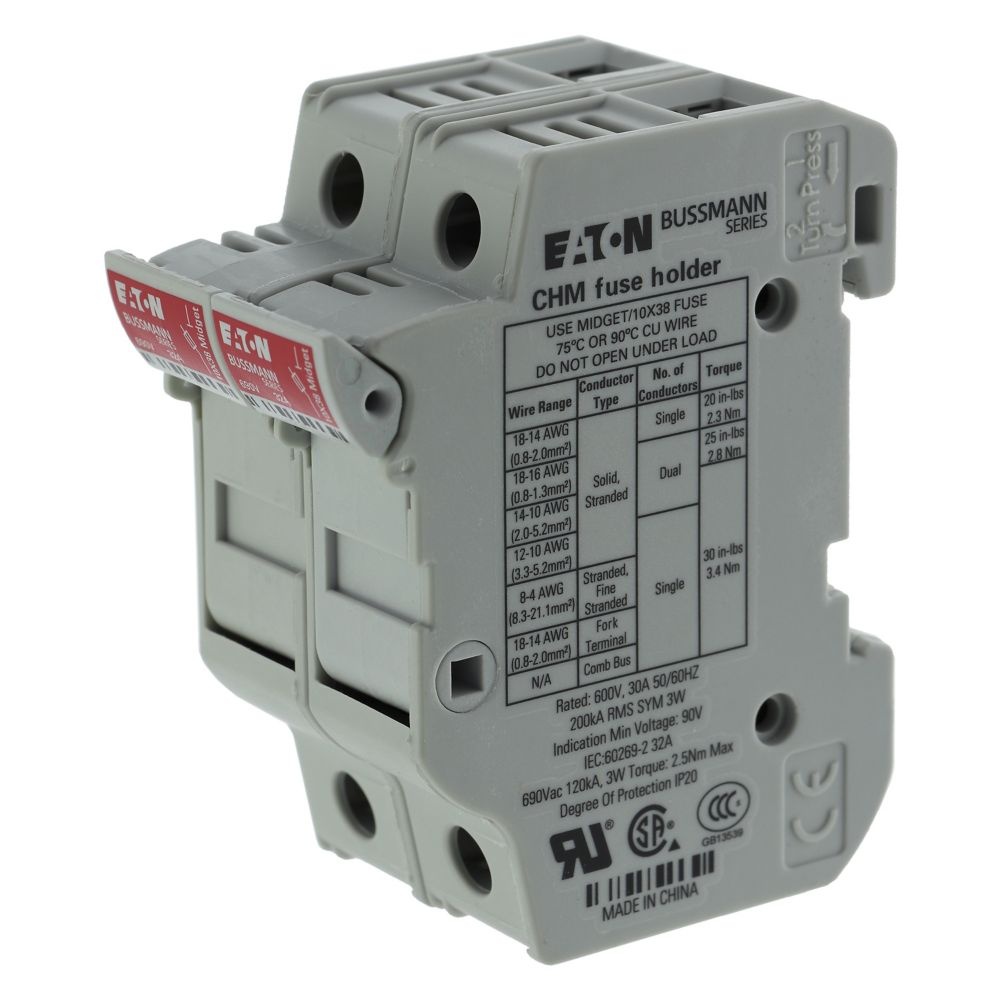

Bussmann CHM2DU Fuse Holder
Part Number # CHM2DU
SKU # 2232171
Bussmann CHM2DU Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | CHM2DU |
| SKU #: | 2232171 |
| Class: | Midget |
| Dimensions: | 1.378 in W x 3.275 in D x 2.909 in H, 2.909 in H x 1.378 in W x 3.275 in D |
| Number of Phases: | 1/3 |
| Series: | CH Series |
| Suitable For Use With: | AGU, C10G, C10M, BAF, BAN, FNM, FNQ, FWA, FWC, KLM, KTK, CHM Fuse, AGU/C10G/C10M/BAF/BAN/FNM/FNQ/FWA/FWC/KLM/KTK/CHM Fuse, FNQ/KLM/FNM/KTK/BAF/FWA/PVM/C10/AGU/BAN/FWC Series Midget Fuse |
| Temperature Rating (Degrees F): | -20 to 120 deg C |
| Type: | Finger Safe Modular |
| Wire Size: | 18 to 4, 18 to 4 AWG |
| Connection type: | Spade Lug |
| UNSPSC: | 39121624 |
| UPC: | 00051712362610 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann CHM2DU Fuse Holder
Brand: Bussmann
Part Number: CHM2DU
Bussmann Fuse Holder, Modular, Series: CH Series, 600/690 V, 30/32 A, 2 Pole, Class: Midget, 18 to 4 AWG Wire, 38 mm Fuse Length, 10 mm Fuse Dia, -20 to 120 deg C, For Use With: AGU/C10G/C10M/BAF/BAN/FNM/FNQ/FWA/FWC/KLM/KTK/CHM Fuse, 1.378 in W x 3.275 in D x 2.909 in H
Additional Description: BUSS-CHM2DU MODULAR FUSE HOLDER, MODULAR, 30A (UL), fuse (UL) fuse
Catalog Description: Eaton Bussmann series CHM modular fuse holder, 600V (UL), 690V (IEC), 30A (UL), 32A (IEC), Modular fuse holder, Two-pole - CHM2DU
CHM2DU Application
Electrical Assemblies, Panels and OEMs ApplicationsCHM2DU Item Features
- UL Recognized midget and 10 x 38 holders with factory assembled neutral pole option
- Complete range of UL listed and high SCCR rated 1/3 ph finger safe combination busbars and power feed lugs
- 30 A, 600 VAC UL, 32 A, 690 VAC IEC rated
- https://www.youtube.com/watch?v=YMvqUyoETXk
CHM2DU Standards
CCC Certified|CSA Certified|IEC 60269-2|RoHS Compliant|UL 94-V-0 Flammability Rating|UL Listed|UL RecognizedSKU #2232171Part Number #CHM2DUUNSPSC39121624UPC00051712362610
Image provided may only be a representation of final product and may include optional equipment
