Part Number # CHM3DU
SKU # 2238247
Image Disclaimers Message
Brand: Bussmann
CHM3DU

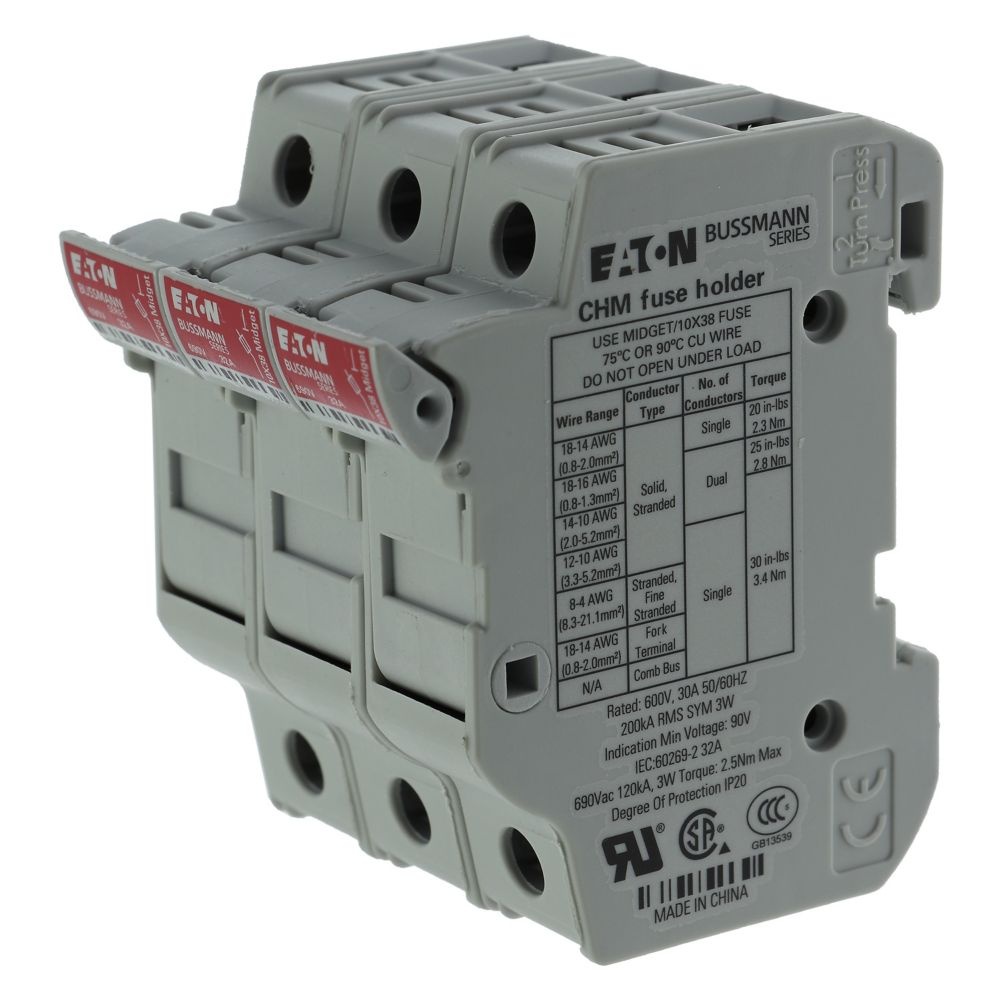

Bussmann CHM3DU Fuse Holder
Part Number # CHM3DU
SKU # 2238247
$472.12 / 4Each
Typical price:$960.04 / Each
Bussmann CHM3DU Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | CHM3DU |
| SKU #: | 2238247 |
| Amperage Rating: | 30/32, 30/32 A |
| Class: | CC, Midget |
| Dimensions: | 2.067 in W x 3.275 in D x 2.909 in H, 2.909 in H x 2.067 in W x 3.275 in D |
| Fuse Diameter: | 10, 10 mm |
| Fuse Length: | 38, 38 mm |
| Number of Phases: | 1/3 |
| Number of Poles: | 3 |
| Series: | CH Series |
| Suitable For Use With: | AGU, C10G, C10M, BAF, BAN, FNM, FNQ, FWA, FWC, KLM, KTK, CHM Fuse, AGU/C10G/C10M/BAF/BAN/FNM/FNQ/FWA/FWC/KLM/KTK/CHM Fuse, FNQ/KLM/FNM/KTK/BAF/FWA/PVM/C10/AGU/BAN/FWC Series Midget Fuse |
| Temperature Rating (Degrees F): | -20 to 120, -20 to 120 deg C |
| Type: | Finger Safe Modular, Modular |
| Wire Size: | 18 to 4, 18 to 4 AWG |
| Color: | White |
| Connection type: | Spade Lug |
| Material: | Polyester |
| Mounting type: | DIN Rail |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121624 |
| UPC: | 00051712362627 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$472.12 / 4Each
Typical price:$960.04 / Each
Quantity:
- Bussmann Fuse Holder, Modular, Series: CH Series, 600/690 V, 30/32 A, 3 Pole, Class: Midget, 18 to 4 AWG Wire, 38 mm Fuse Length, 10 mm Fuse Dia, -20 to 120 deg C, For Use With: AGU/C10G/C10M/BAF/BAN/FNM/FNQ/FWA/FWC/KLM/KTK/CHM Fuse, 2.067 in W x 3.275 in D x 2.909 in H
CHM3DU Application
Electrical Assemblies, Panels and OEMs ApplicationsCHM3DU Item Features
- UL Recognized midget and 10 x 38 holders with factory assembled neutral pole option
- Complete range of UL listed and high SCCR rated 1/3 ph finger safe combination busbars and power feed lugs
- 30 A, 600 VAC UL, 32 A, 690 VAC IEC rated
- https://www.youtube.com/watch?v=YMvqUyoETXk
CHM3DU Standards
CCC Certified|CSA Certified|IEC 60269-2|RoHS Compliant|UL 94-V-0 Flammability Rating|UL Listed|UL RecognizedSKU #2238247Part Number #CHM3DUUNSPSC39121624UPC00051712362627
