Part Number # CHPV141U
SKU # 2354638
CHPV141U

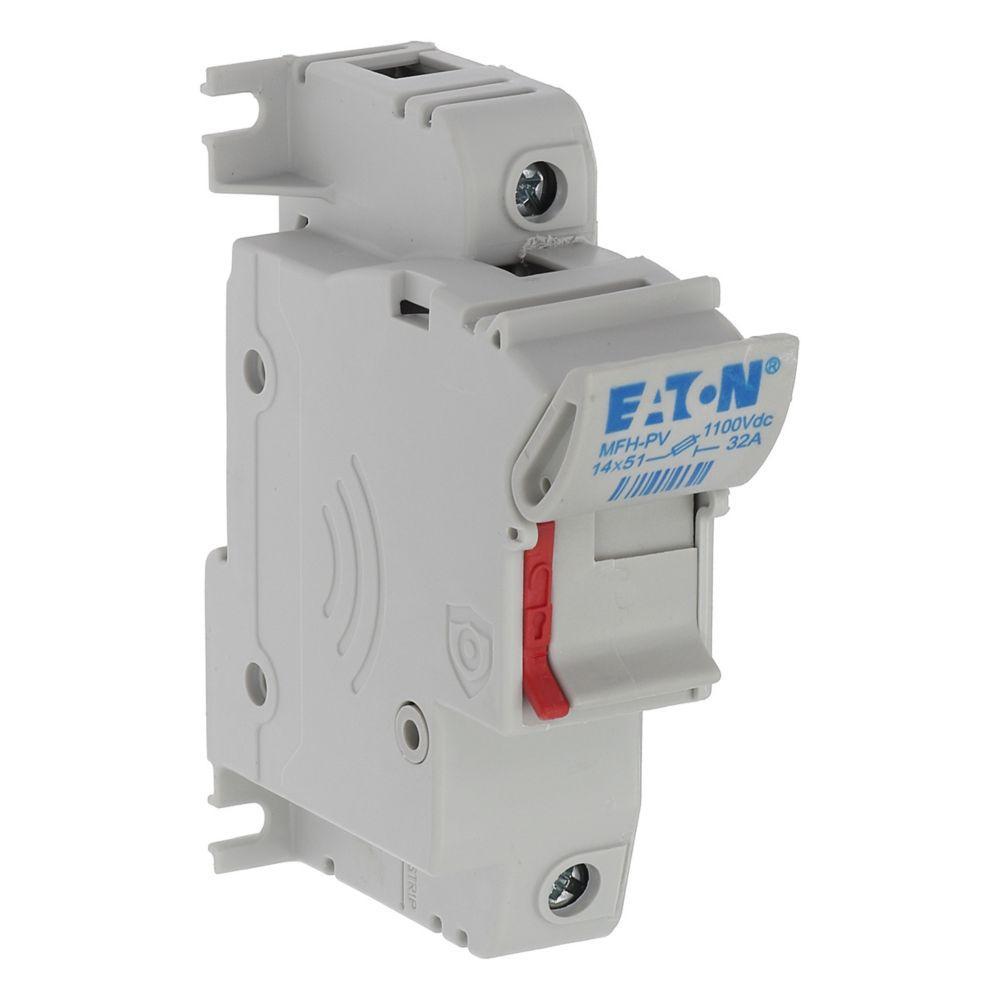

Bussmann CHPV141U Modular Fuse Holder
Part Number # CHPV141U
SKU # 2354638
Bussmann CHPV141U Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | CHPV141U |
| SKU #: | 2354638 |
| Amperage Rating: | 32 A |
| Dimensions: | 76 mm L x 27 mm W x 92 mm H |
| Fuse Diameter: | 14 mm |
| Fuse Length: | 51 mm |
| Number of Poles: | 1 |
| Suitable For Use With: | Standard Cylindrical Fuse-Links and FW Type Ferrule Fuse-Links |
| Temperature Rating (Degrees F): | -20 to 90 deg C |
| Type: | High Speed |
| Country of origin: | CN |
| Mounting type: | DIN Rail |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121624 |
| UPC: | 00051712685252 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann CHPV141U Modular Fuse Holder
Brand: Bussmann
Part Number: CHPV141U
Bussmann Modular Fuse Holder, High Speed, 1500 VDC, 32 A, 1 Pole, DIN Rail Mounting, 51 mm Fuse Length, 14 mm Diameter Fuse, -20 to 90 deg C, For Use With: Standard Cylindrical Fuse-Links and FW Type Ferrule Fuse-Links, 76 mm L x 27 mm W x 92 mm H Dimensions
Additional Description: BUSS-CHPV141U (N) 1P 14x51 PV Fuse Holder NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Fuse-holder, high speed, 32 A, DC 1500 V, 14 x 51 mm, 1P, IEC, UL
CHPV141U Application
Generation, Renewable Energy - Storage Systems and SolarCHPV141U Item Features
- Compact dimensions
- Ventilation zones optimized for a better heat dissipation
- Inbuilt padlocking facility
- IP20 degree of protection
- Photovoltaic version rated at 1500 VDC (IEC only) for use with gPV fuse links
- Flexibility to mount on DIN rail and/or screw mounting
- Toolless DIN rail mounting, improves ease of use and reduces installation time and costs
- https://www.youtube.com/watch?v=YMvqUyoETXk
CHPV141U Standards
CE,CESKU #2354638Part Number #CHPV141UUNSPSC39121624UPC00051712685252
Image provided may only be a representation of final product and may include optional equipment
