Part Number # DFJ-100
SKU # 2332495
Image provided may only be a representation of
final product and may include optional equipment
DFJ-100

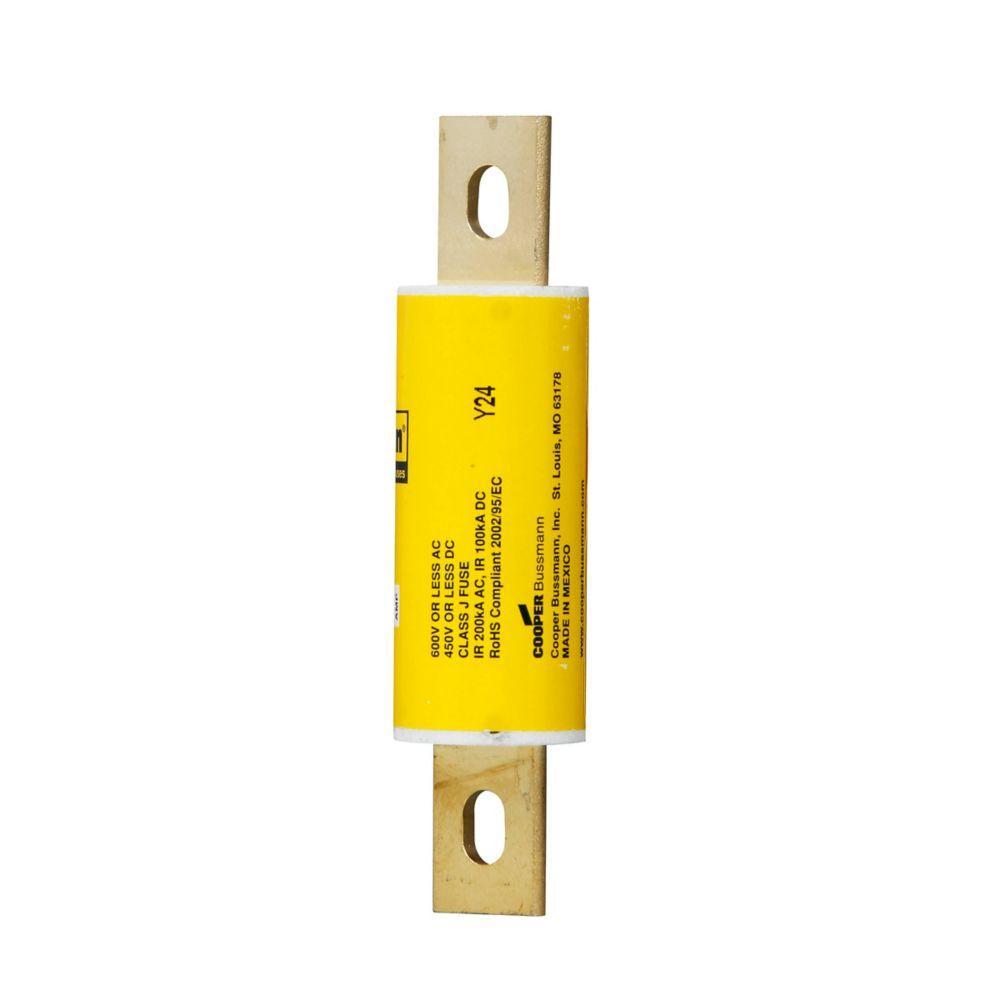

Bussmann DFJ-100 Drive Fuse
Part Number # DFJ-100
SKU # 2332495
Bussmann DFJ-100 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | DFJ-100 |
| SKU #: | 2332495 |
| Amperage Rating: | 100, 100 A |
| Body Type: | Cartridge |
| Class: | J |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 200/100, 200/100 kAIC |
| Rejection/Non-Rejection: | Non-Rejection |
| Series: | DFJ |
| Terminal Type: | Blade, Ferrule End |
| Type: | Current Limiting, Current Limiting High Speed |
| Material: | Melamine |
| Mounting type: | Stud |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121626 |
| UPC: | 00051712653411 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann DFJ-100 Drive Fuse
Brand: Bussmann
Part Number: DFJ-100
Bussmann High Speed Drive Fuse, Current Limiting, Series: DFJ, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 100 A, 600 VAC/450 VDC, 200/100 kAIC Interrupt, Class: J, Ferrule End Terminal, Stud Mount, Cartridge Body Type, Silver Element, Melamine, 1.13 in Dia x 4.63 in L Body Size
Additional Description: BUSS-DFJ-100 DRIVE FUSE
Catalog Description: Eaton Bussmann series DFJ high speed fuse, 600 Vac or less, 450 Vdc or less, 100A, 200 kAIC at 600 Vac, 100 kAIC 450 Vdc, Non Indicating, High speed fuse, Ferrule end X ferrule end, Class J, Melamine tube
DFJ-100 Application
Industrial Facilities and Factories, Safety and Security Systems, AC/DC Drives and Equipment Power Semiconductor Devices Protection ApplicationsDFJ-100 Item Features
- Easily coordinated with existing and new variable speed drives and electric controllers
- Standard class J dimensions allow using readily available fuse blocks, holders and switches
- Allows the lowest let through energy of any branch circuit overcurrent protective device
- Silver fuse element
- https://www.youtube.com/watch?v=YMvqUyoETXk
DFJ-100 Standards
UL Listed ,CSA Certified,CE Marked,RoHS CompliantSKU #2332495Part Number #DFJ-100UNSPSC39121626UPC00051712653411
