Part Number # ECSR60
SKU # 2458075

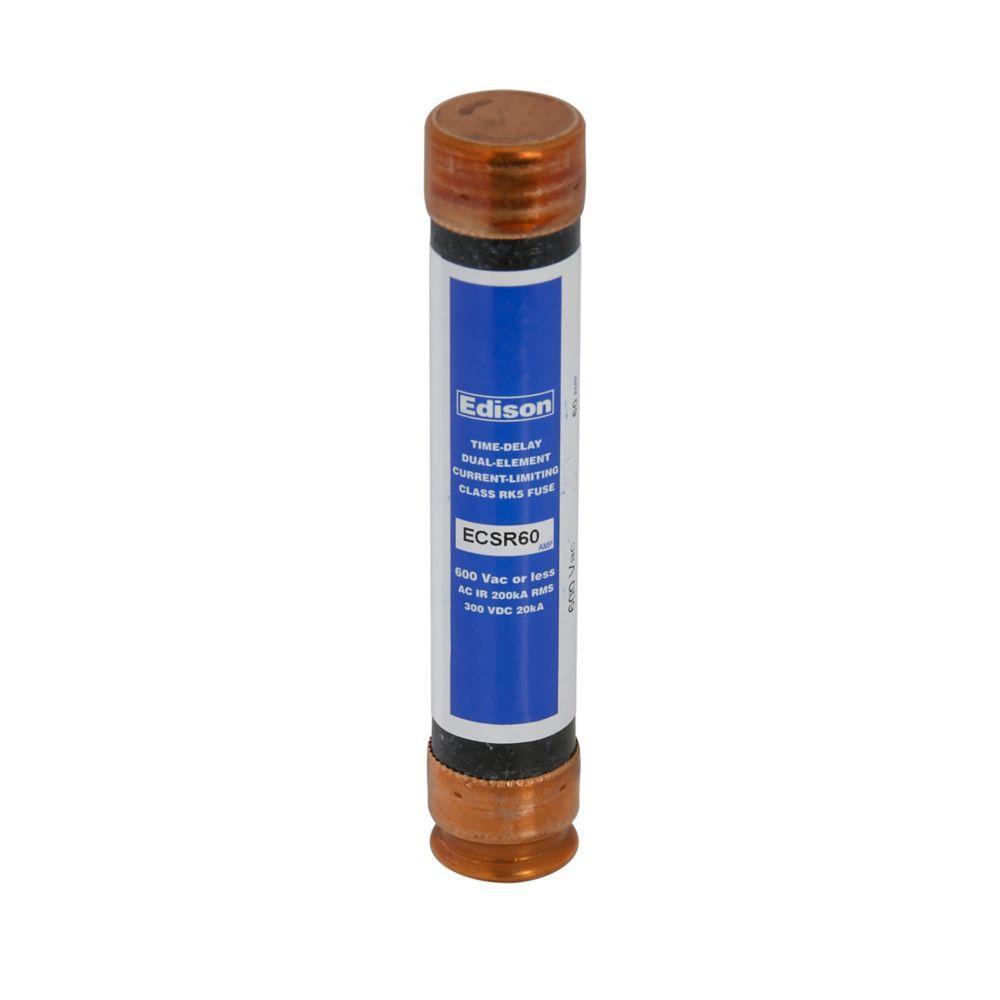

Image provided may only be a representation of
final product and may include optional equipment
ECSR60
Bussmann ECSR60
Part Number # ECSR60
SKU # 2458075
$670.60 / 10Each
Typical price:$985.70 / Each
Bussmann ECSR60 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | ECSR60 |
| SKU #: | 2458075 |
| Amperage Rating: | 60 A |
| Body Type: | Cartridge |
| Class: | RK5 |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 200 kAIC |
| Rejection/Non-Rejection: | Rejection |
| Response Time: | 10 s at 500% |
| Series: | ECSR |
| Terminal Type: | Ferrule End |
| Type: | Current Limiting Time Delay |
| Country of origin: | MX |
| Material: | Fiberglass |
| Mounting type: | Holder |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121606 |
| UPC: | 00782634508397 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$670.60 / 10Each
Typical price:$985.70 / Each
Quantity:
- Edison, ECSR60, Fuse, Current Limiting Time Delay, Series: ECSR, Non-Indicating, Rejection, 60 A, 600 V, 200 kAIC Interrupt, Class: RK5, 10 s at 500% Response, Ferrule End Terminal, Holder Mounting, Cartridge Body, Dual Element, Fiberglass, 1.06 in Dia x 5.5 in L Body
ECSR60 Application
Industrial Facilities and Factories, Safety and Security Systems, AC Power Distribution System Mains, Feeders, Branch Circuits, Motor, Motor Branch Circuits, Transformers and Other Inductive Loads ApplicationsECSR60 Item Features
- Provides motor overload, ground fault and short circuit protection
- When used in circuits subject to surge currents such as those caused by motors, transformers and other inductive components, these fuses can be sized close to full load amps to give maximum overcurrent protection
- The time delay feature makes it possible to use fuse amp ratings which are much smaller than those of non-time delay fuses
- Considerable cost savings occur by permitting the use of smaller size switches, panels and fuses themselves
- Provides a higher degree of short circuit protection (greater current limitation) in circuits in which surge currents or temporary overloads occur
- Gives motor running back-up protection to motors without extra costs
- Helps protect motors against burnout from 1 ph on 3 ph systems
- Simplifies and improves blackout prevention (selective co-ordination ratios)
- Dual element fuses can be applied in circuits subject to temporary motor overloads and surge currents to provide both high performance short circuit and overload protection
- Superior overload and cycling capabilities
- True dual element construction allows sizing of 125% FLA for motor backup protection
- Current limiting provides component short circuit protection
- For all general purpose applications including lighting, heating and other non-inductive loads
- Tin plated copper brass terminal and zinc plated steel screws
- https://www.youtube.com/watch?v=YMvqUyoETXk
ECSR60 Standards
CE MarkedSKU #2458075Part Number #ECSR60UNSPSC39121606UPC00782634508397
