Part Number # FCF20RN
SKU # 2352118
FCF20RN

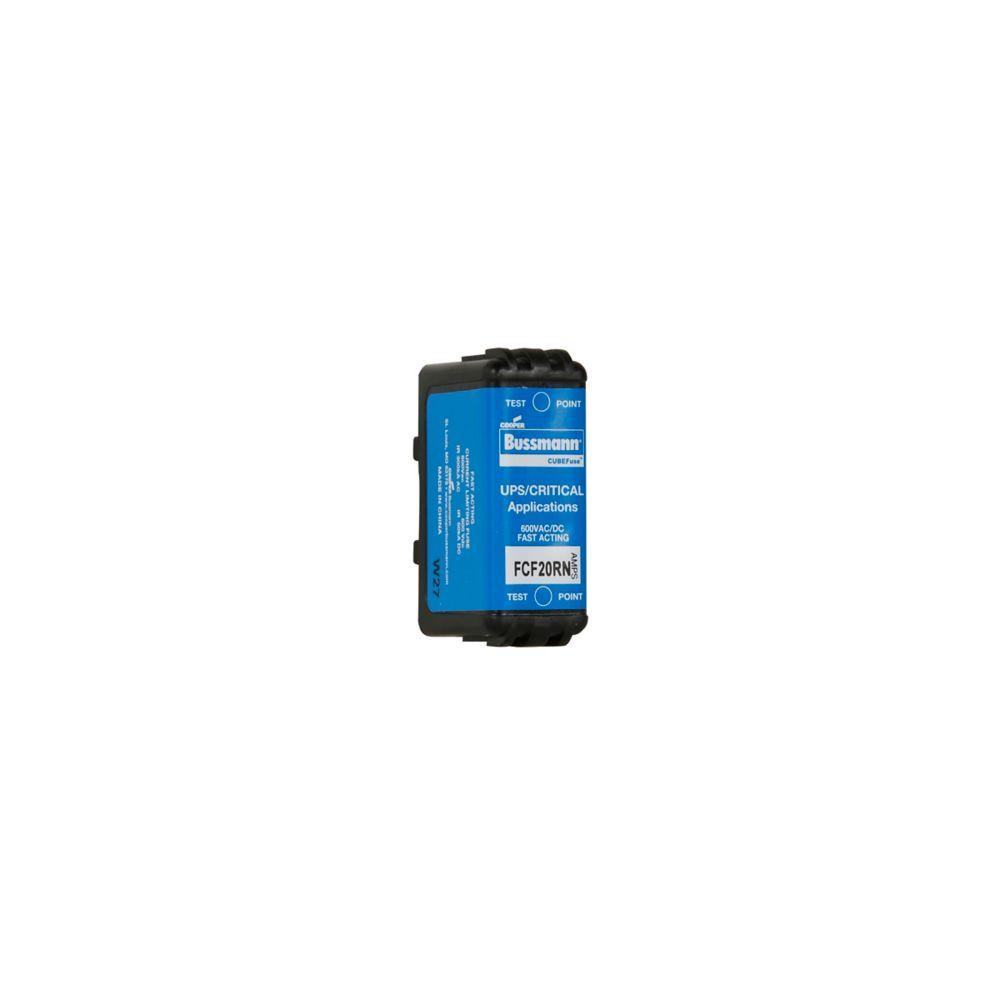

Bussmann FCF20RN Fuse
Part Number # FCF20RN
SKU # 2352118
Bussmann FCF20RN Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | FCF20RN |
| SKU #: | 2352118 |
| Body Type: | Square Blade |
| Class: | CF |
| Interrupt Rating: | 50/300 kA |
| Response Time: | 4 min at 200% |
| Series: | FCF |
| UNSPSC: | 39121606 |
| UPC: | 00051712362467 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann FCF20RN Fuse
Brand: Bussmann
Part Number: FCF20RN
Bussmann CUBEFuse Fuse, Fast Acting Non-Indicating, Series: FCF, 20 A, 600 VAC/VDC, 50/300 kA Interrupt, Class: CF, 50/60 Hz, 4 min at 200% Response, Blade Terminal, Holder Mount, Square Blade Body Type, Single Element, Glass Filled Polyethersulfone, Black, 1.88 in L x 0.75 in W Body Size
Additional Description: BUSS-FCF20RN (N) Fast Acting CUBEFuse 20A Non-indication NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Bussmann Series UL Class CF, FCF fuse, fast-acting, single-element cube fuse, 20 A, non-idicating fuse, interrupting rating of 50 kA at 600 Vdc and 300 kA at 600 Vac
FCF20RN Application
Commercial/Institutional Buildings/structures, Power Distribution and Control, UPS and Critical Applications, Safety and Security Systems, Stationary Machinery and Equipment Outside FactoryFCF20RN Item Features
- Class CF meets class J fast acting electrical performance requirements
- Faster response to damaging faults to help reduce destructive thermal and magnetic forces
- True fast acting fuse construction
- High interrupt rating to safely interrupt faults up to 300 kA
- No venting of arc or molten metal and gases during opening
- Low let through currents under fault conditions
- Smallest footprint of any class fuse including class J, CC, T and RK
- The worlds first finger safe power fuse system
- https://www.youtube.com/watch?v=YMvqUyoETXk
FCF20RN Standards
CSA Certified ,UL Listed,CE Marked,RoHS CompliantSKU #2352118Part Number #FCF20RNUNSPSC39121606UPC00051712362467
Image provided may only be a representation of final product and may include optional equipment
