Part Number # FCF60RN
SKU # 2448430
FCF60RN
Bussmann FCF60RN
Part Number # FCF60RN
SKU # 2448430
Bussmann FCF60RN Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | FCF60RN |
| SKU #: | 2448430 |
| Amperage Rating: | 60 A |
| Body Type: | Rectangular |
| Class: | CF |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 50/300 kA |
| Response Time: | 6 min at 200% |
| Series: | FCF |
| Terminal Type: | Blade |
| Type: | Fast Acting Current Limiting Finger Safe Low Voltage |
| Country of origin: | CN |
| Material: | Glass Filled Polyethersulfone |
| Mounting type: | Through Hole |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121606 |
| UPC: | 00051712362535 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann FCF60RN
Brand: Bussmann
Part Number: FCF60RN
Bussmann CUBEFuse™ Fuse, Fast Acting Current Limiting Finger Safe Low Voltage, Series: FCF, Indicating/Non-Indicating: Non-Indicating, 60 A, 600 VAC/VDC, 50/300 kA Interrupt, Class: CF, 6 min at 200% Response, Blade Terminal, Through Hole Mount, Rectangular Body Type, Glass Filled Polyethersulfone, 2.13 in L x 1 in W Body Size
Additional Description: BUSS-FCF60RN (N) Fast Acting CUBEFuse 60A Non-indication NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Bussmann Series UL Class CF, FCF fuse, fast-acting, single-element cube fuse, 60 A, non-idicating fuse, interrupting rating of 50 kA at 600 Vdc and 300 kA at 600 Vac
FCF60RN Application
Commercial/Institutional Buildings/structures, Power Distribution and Control, UPS, Critical, Electrical and Industrial Applications, Safety and Security Systems, Stationary Machinery and Equipment Outside FactoryFCF60RN Item Features
- The worlds first finger safe power fuse system
- UL class CF meets class J fast acting electrical performance requirements
- Faster response to damaging faults to help reduce destructive thermal and magnetic forces
- True fast acting fuse construction
- High interrupt rating to safely interrupt faults up to 300 kA
- No venting of arc or molten metal and gases during opening
- Low let through currents under fault conditions
- 6 min maximum clearing time at 200% rated current for 35 to 60 A fuses
- https://www.youtube.com/watch?v=YMvqUyoETXk
FCF60RN Standards
CE Certified|CSA 1422- 02/File No. 53787|RoHS Compliant|UL File No. E4273|UL Guide JDDZSKU #2448430Part Number #FCF60RNUNSPSC39121606UPC00051712362535

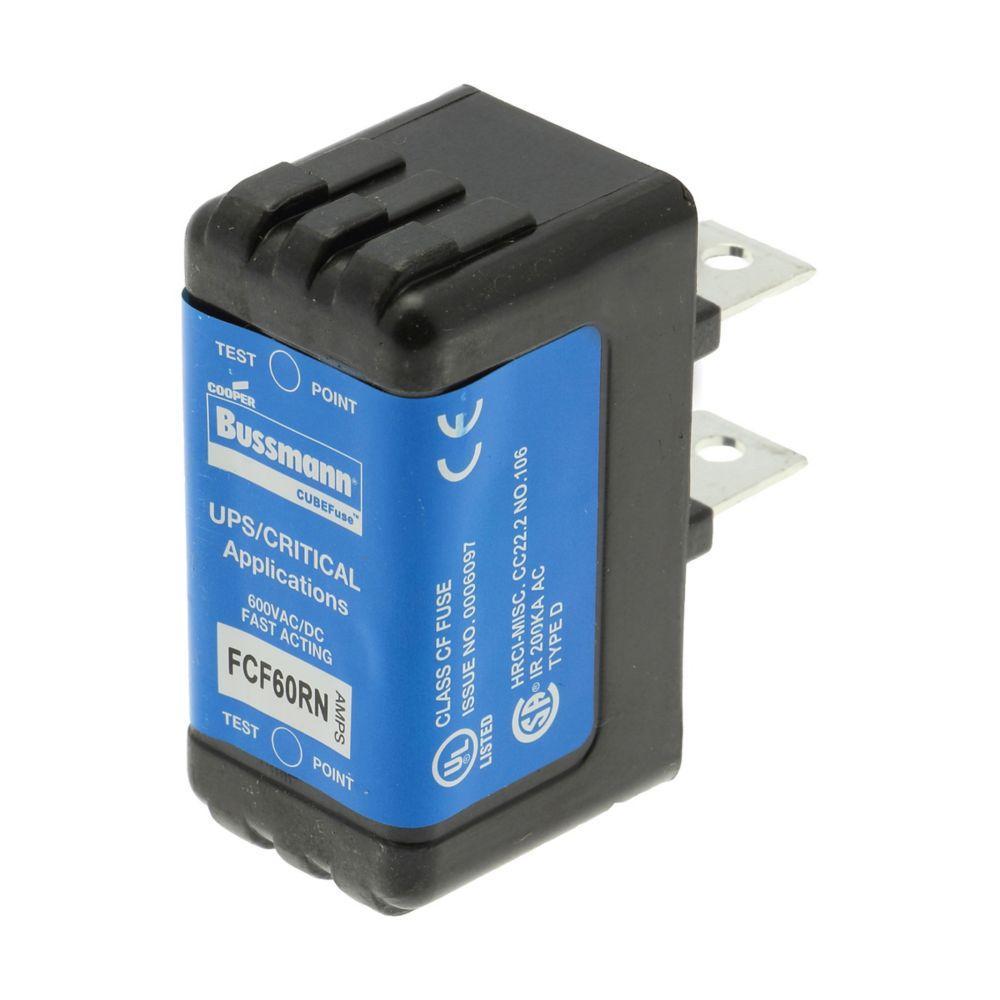

Image provided may only be a representation of final product and may include optional equipment
