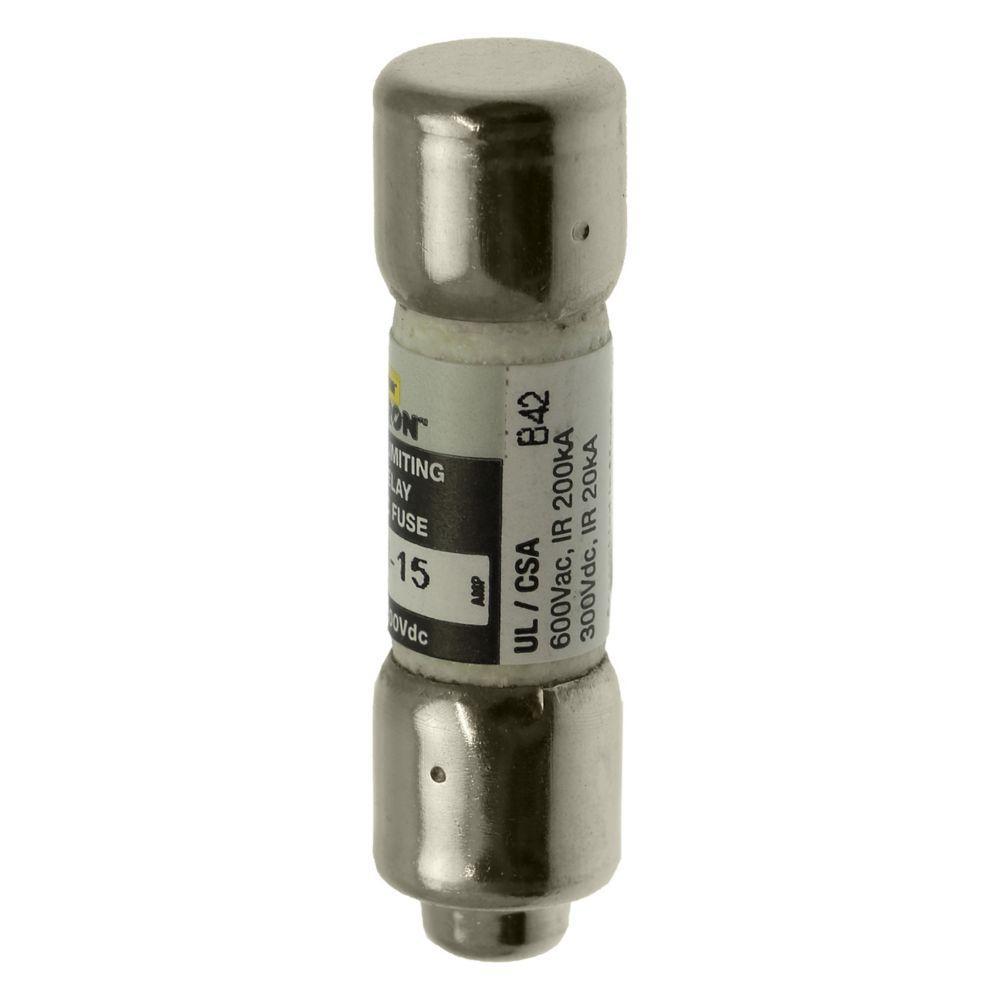

Bussmann FNQ-R-15 Time Delay Fuse
Part Number # FNQ-R-15
SKU # 7602
$49.83 / Each
18 In Stock
Ships in 1 Business Day
Bussmann FNQ-R-15 Key Features
Brand: Bussmann
Part Number # FNQ-R-15
SKU #7602
Amperage Rating: 15, 15 A
Body Type: Cylindrical
Class: CC
Indicating/Non-Indicating: Non-Indicating
Interrupt Rating: 20/200 kA, 200/20
Rejection/Non-Rejection: Rejection
Response Time: 12, 12 s at 200%
Series: FNQ-R
Terminal Type: Ferrule
Voltage Rating: 600 VAC/300 VDC
Country of origin: MX
Material: Melamine
Mounting type: Holder
Manufacturer Name: Eaton
UNSPSC: 39121606
UPC: 00051712497114
$49.83 / Each
Bussmann FNQ-R-15 Time Delay Fuse
Brand: Bussmann
Part Number: FNQ-R-15
Bussmann CC-Tron Time Delay Fuse, Series: FNQ-R, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 15 A, 600 VAC/300 VDC, 20/200 kA Interrupt, Class: CC, 12 s at 200% Response, Ferrule Terminal, Holder Mount, Cylindrical Body Type, Dual Element, Melamine, 13/32 in Dia x 1-1/2 in L Body Size
Additional Description: BUSS-FNQ-R-15 CLASS CC TIME DELAY REJECTION FUSE DELAY
Catalog Description: Eaton Bussmann Series Class CC fuse, FNQ, time-delay, dual-element current limiting fuse, 15 A, rejection style fuse, interrupting rating of 200kA at 600Vac and 20 kA at 300 Vdc
FNQ-R-15 Application
Line Protection, Small Control Transformers, Industrial Control and Isolated/In-Line Fuse Holders Applications, Safety and Security SystemsFNQ-R-15 Item Features
- Time delay compatible with inrush characteristic of small control transformers
- Current limitation at class CC levels provides maximum component short circuit current rating protection
- 200 kA interrupt rating provides high ratings for control circuit locations
- Class CC rejection feature with appropriate fuse block, prevents inserting lesser rated supplementary fuse
- Nickel plated brass end caps
- https://www.youtube.com/watch?v=YMvqUyoETXk
FNQ-R-15 Standards
CE Certified|CSA 1422-01|CSA File No. 53787-HRC-MISC|RoHS Compliant|UL 248-4|UL File No. E4273|UL Guide JDDZSKU #7602Part Number #FNQ-R-15UNSPSC39121606UPC00051712497114
