Part Number # FNQ-R-2-1/2
SKU # 7604
FNQ-R-2-1/2

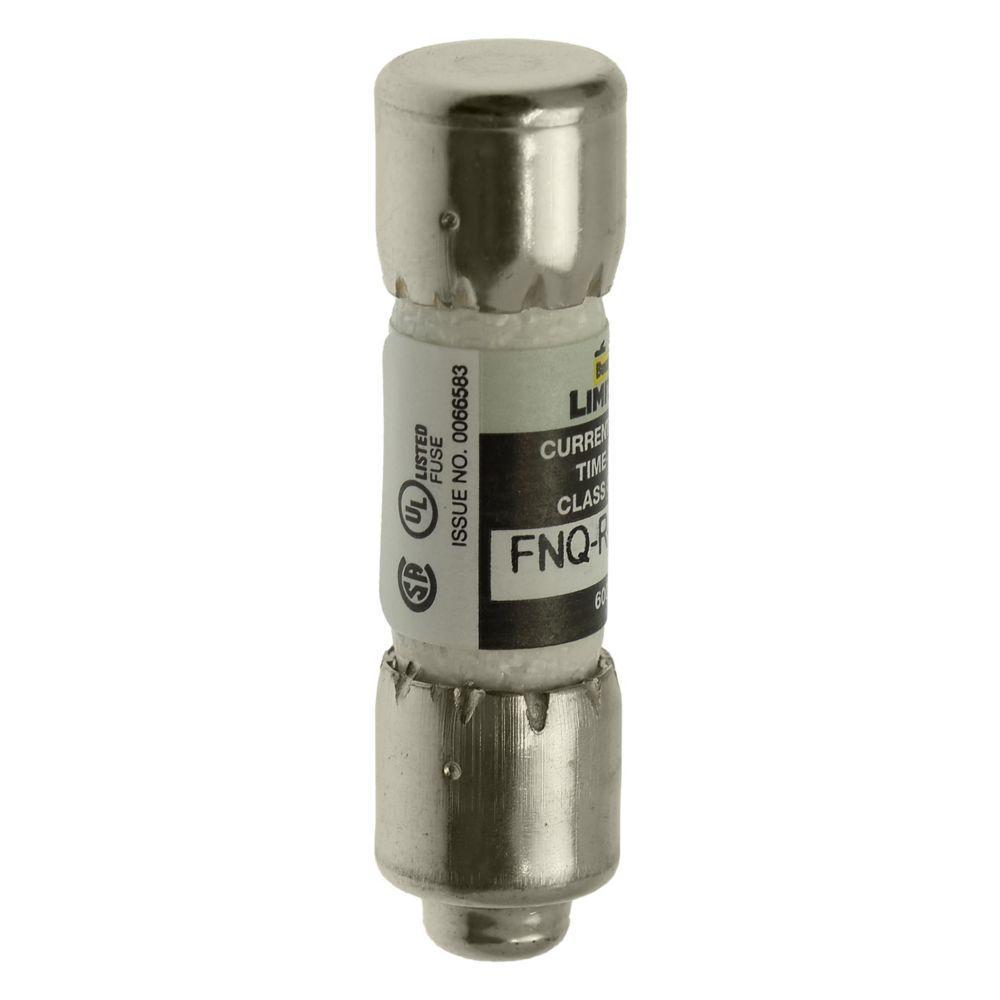

Bussmann FNQ-R-2-1/2 Time Delay Fuse
Part Number # FNQ-R-2-1/2
SKU # 7604
Bussmann FNQ-R-2-1/2 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | FNQ-R-2-1/2 |
| SKU #: | 7604 |
| Response Time: | 12, 12 s at 200% |
| Series: | FNQ-R |
| Type: | Current Limiting High Inrush |
| UNSPSC: | 39121606 |
| UPC: | 00051712147071 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann FNQ-R-2-1/2 Time Delay Fuse
Brand: Bussmann
Part Number: FNQ-R-2-1/2
Bussmann CC-Tron Time Delay Fuse, Current Limiting High Inrush, Series: FNQ-R, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 2.5 A, 600 V, 200 kA Interrupt, Class: CC, 12 s at 200% Response, Ferrule Terminal, Holder Mount, Cylindrical Body Type, Dual Element, Melamine, 13/32 in Dia x 1-1/2 in L Body Size
Additional Description: BUSS-FNQ-R-2-1/2 (N) CLASS CC TIME DELAY DELA NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Bussmann Series Class CC fuse, FNQ, time-delay, dual-element current limiting fuse, 2.5 A, rejection style fuse, interrupting rating of 200kA at 600Vac
FNQ-R-2-1/2 Application
Line Protection, Small Control Transformers, Industrial Control, Isolated and In-Line Fuse Holders Applications, Safety and Security SystemsFNQ-R-2-1/2 Item Features
- Time delay compatible with inrush characteristic of small control transformers
- Current limitation at class CC levels provides maximum component short circuit current rating protection
- 200 kA interrupting rating provides high ratings for control circuit locations
- Class CC rejection feature with appropriate fuse block, prevents inserting lesser rated supplementary fuse
- 12 s at 200% response time
- Nickel plated brass end caps
- https://www.youtube.com/watch?v=YMvqUyoETXk
FNQ-R-2-1/2 Standards
RoHS Compliant,CE MarkedSKU #7604Part Number #FNQ-R-2-1/2UNSPSC39121606UPC00051712147071
Image provided may only be a representation of final product and may include optional equipment
