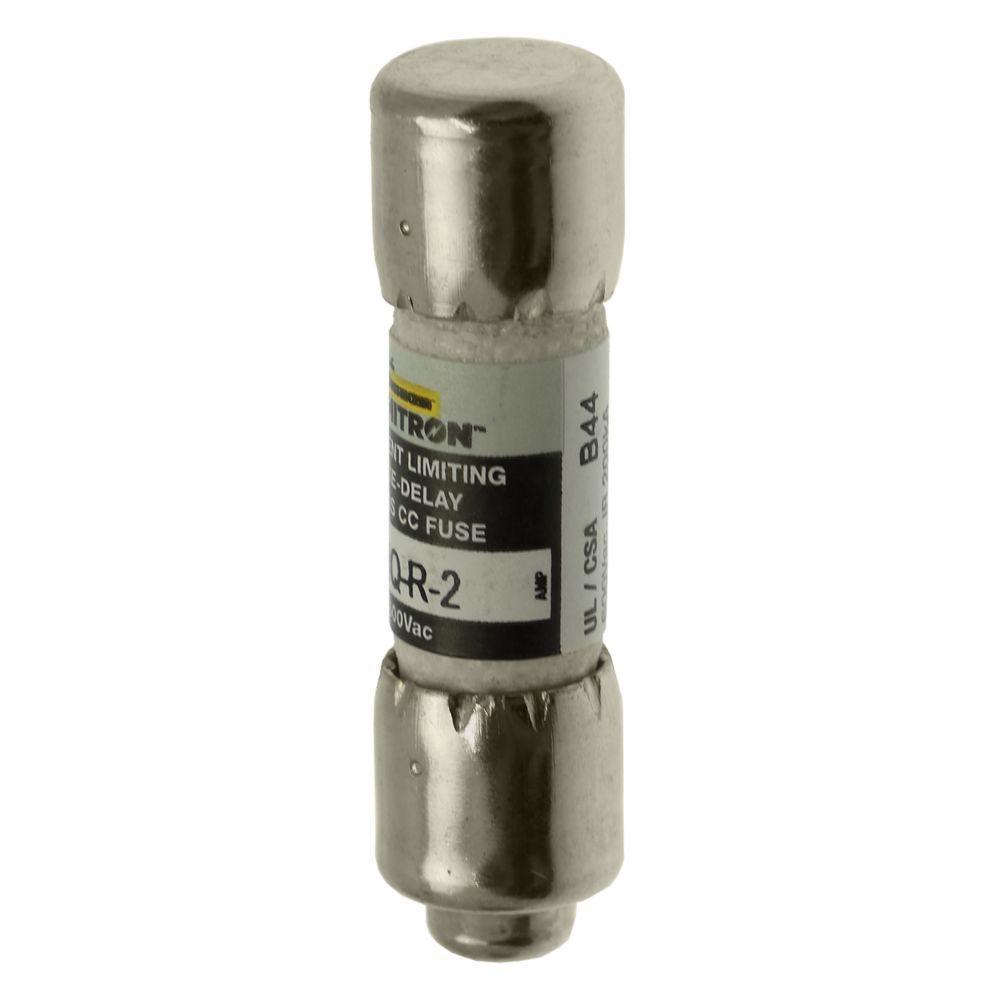

Bussmann FNQ-R-2 Time Delay Fuse
Part Number # FNQ-R-2
SKU # 7603
$471.30 / 10Each
Bussmann FNQ-R-2 Key Features
Brand: Bussmann
Part Number # FNQ-R-2
SKU #7603
Amperage Rating: 2, 2 A
Body Type: Cylindrical
Class: CC
Indicating/Non-Indicating: Non-Indicating
Interrupt Rating: 200, 200 kA
Rejection/Non-Rejection: Rejection
Response Time: 12, 12 s at 200%
Series: FNQ-R
Terminal Type: Ferrule
Type: Current Limiting High Inrush
Voltage Rating: 600, 600 V
Country of origin: MX
Material: Melamine
Mounting type: Holder
Manufacturer Name: Eaton
UNSPSC: 39121606
UPC: 00051712147064
$471.30 / 10Each
Bussmann FNQ-R-2 Time Delay Fuse
Brand: Bussmann
Part Number: FNQ-R-2
Bussmann CC-Tron Time Delay Fuse, Current Limiting High Inrush, Series: FNQ-R, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 2 A, 600 V, 200 kA Interrupt, Class: CC, 12 s at 200% Response, Ferrule Terminal, Holder Mount, Cylindrical Body Type, Dual Element, Melamine, 13/32 in Dia x 1-1/2 in L Body Size
Additional Description: BUSS-FNQ-R-2 CLASS CC TIME DELAY
Catalog Description: Eaton Bussmann Series Class CC fuse, FNQ, time-delay, dual-element current limiting fuse, 2 A, rejection style fuse, interrupting rating of 200kA at 600Vac
FNQ-R-2 Application
Line Protection, Small Control Transformers, Industrial Control, Isolated and In-Line Fuse Holders Applications, Safety and Security SystemsFNQ-R-2 Item Features
- Time delay compatible with inrush characteristic of small control transformers
- Current limitation at class CC levels provides maximum component short circuit current rating protection
- 200 kA interrupting rating provides high ratings for control circuit locations
- Class CC rejection feature with appropriate fuse block, prevents inserting lesser rated supplementary fuse
- 12 s at 200% response time
- Nickel plated brass end caps
- https://www.youtube.com/watch?v=YMvqUyoETXk
FNQ-R-2 Standards
CE Certified|CSA 1422-01/File No. 53787|RoHS Compliant|UL 248-4|UL File No. E4273|UL Guide JDDZSKU #7603Part Number #FNQ-R-2UNSPSC39121606UPC00051712147064
