FNQ-R-3/10

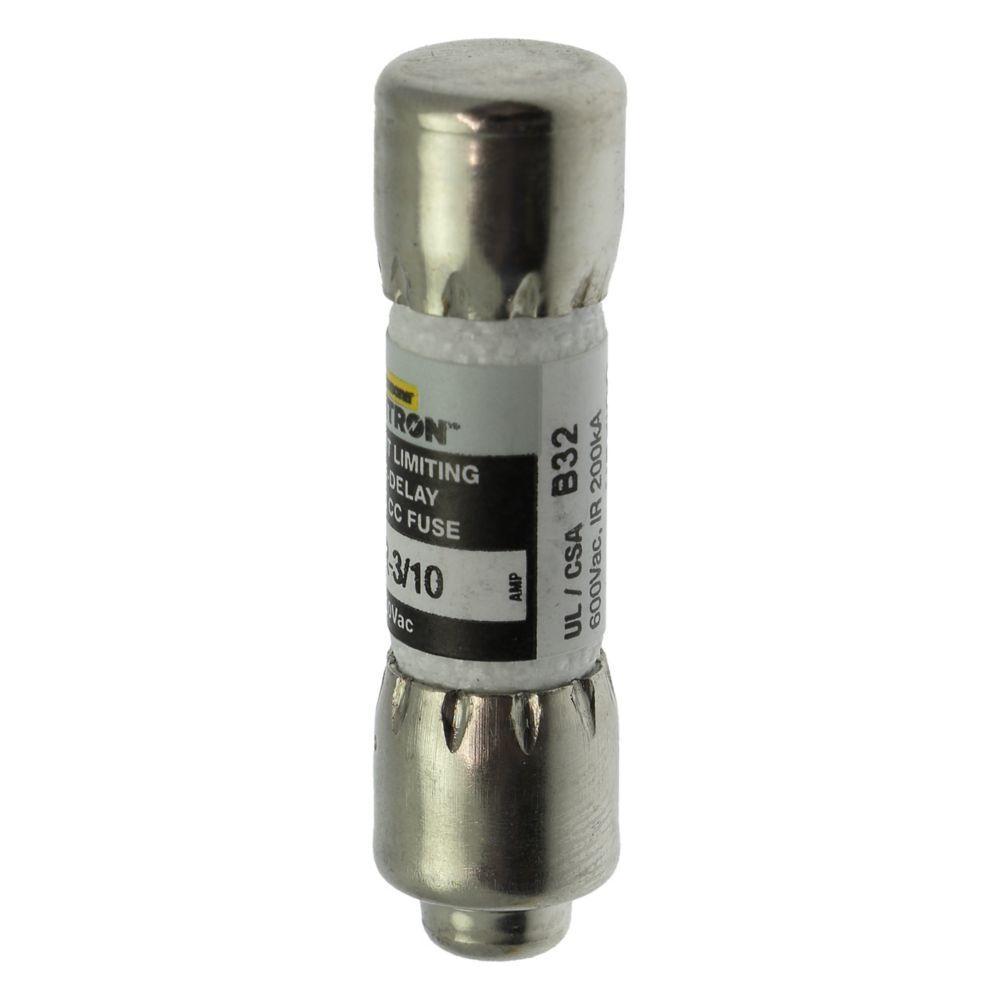

Bussmann FNQ-R-3/10 Time Delay Fuse
Part Number # FNQ-R-3/10
SKU # 2258922
Bussmann FNQ-R-3/10 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | FNQ-R-3/10 |
| SKU #: | 2258922 |
| UNSPSC: | 39121606 |
| UPC: | 00051712496902 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann FNQ-R-3/10 Time Delay Fuse
Brand: Bussmann
Part Number: FNQ-R-3/10
Bussmann CC-Tron Fuse, Current Limiting Time Delay, Series: FNQ-R, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 0.3 A, 600 V, 200 kAIC Interrupt, Class: CC, 12 s at 200% Response, Ferrule End Terminal, Holder Mount, Cylindrical Body Type, Dual Element, Melamine Tube, 13/32 in Dia x 1-1/2 in L Body Size
Additional Description: BUSS-FNQ-R-3/10 CLASS CC TIME DELAY
Catalog Description: Eaton Bussmann Series Class CC fuse, FNQ, time-delay, dual-element current limiting fuse, 0.3 A, rejection style fuse, interrupting rating of 200kA at 600Vac
FNQ-R-3/10 Application
Industrial Facilities and Factories, Safety and Security Systems, Line Protection, Small Control Transformers, Isolated and In-Line Fuse Holders ApplicationsFNQ-R-3/10 Item Features
- Time delay compatible with inrush characteristic of small control transformers
- Current limitation at class CC levels provides maximum component short circuit current protection
- 200 kA interrupt rating provides high ratings at all circuit locations
- Class CC rejection feature with appropriate fuse block, prevents inserting lesser rated supplementary fuse
- Nickel plated brass end caps
- https://www.youtube.com/watch?v=YMvqUyoETXk
FNQ-R-3/10 Standards
CE Certified|CSA File No.53787-HRC-MISC|NEC 110.9|UL 248-4 File No. E4273 Guide JDDZSKU #2258922Part Number #FNQ-R-3/10UNSPSC39121606UPC00051712496902
Image provided may only be a representation of final product and may include optional equipment
