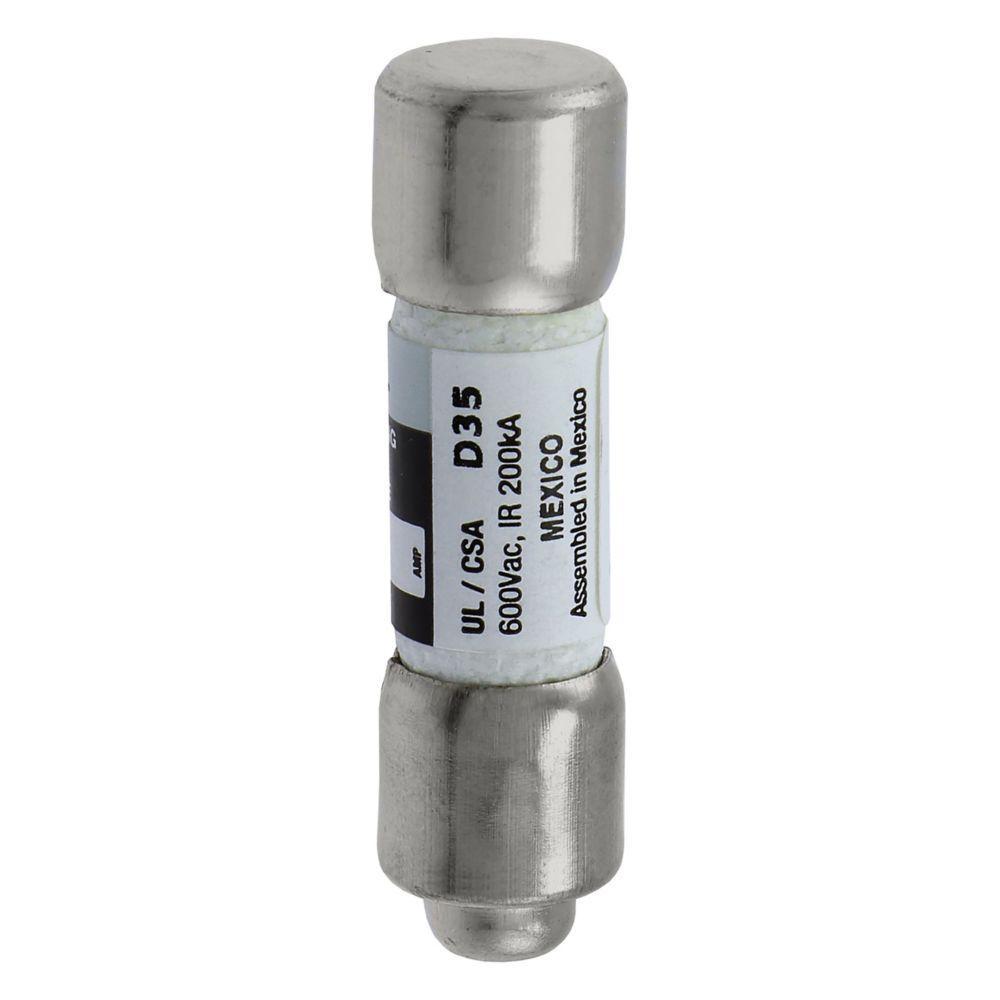

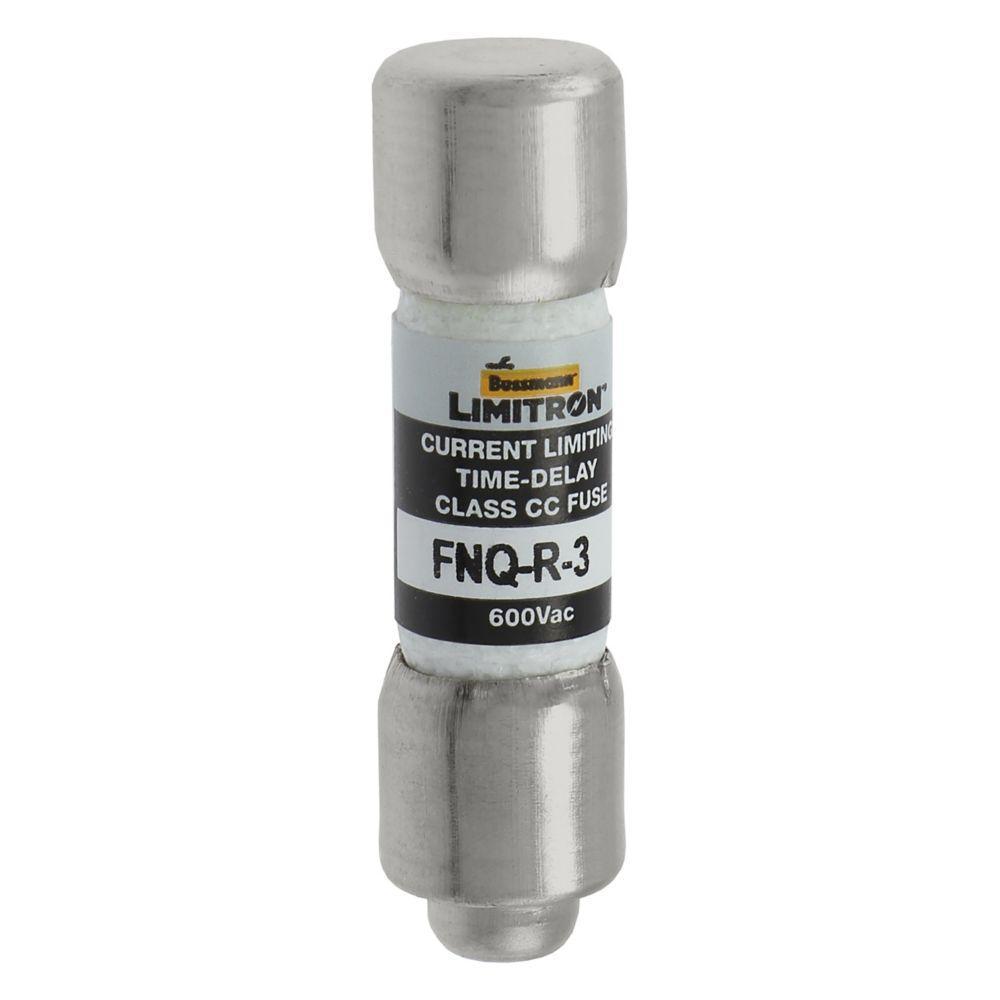

Bussmann FNQ-R-3 Time Delay Fuse
Part Number # FNQ-R-3
SKU # 7609
$56.21 / Each
Bussmann FNQ-R-3 Key Features
Brand: Bussmann
Part Number # FNQ-R-3
SKU #7609
Amperage Rating: 3, 3 A
Body Type: Cylindrical
Class: CC
Indicating/Non-Indicating: Non-Indicating
Interrupt Rating: 200, 200 kAIC
Rejection/Non-Rejection: Rejection
Response Time: 12, 12 s at 200%
Series: FNQ-R
Terminal Type: Ferrule, Ferrule End
Type: Current Limiting High Inrush, Current Limiting High Inrush Time Delay
Voltage Rating: 600, 600 V
Material: Melamine, Melamine Tube
Mounting type: Holder
Manufacturer Name: Eaton
UNSPSC: 39121606
UPC: 00051712147088
$56.21 / Each
Bussmann FNQ-R-3 Time Delay Fuse
Brand: Bussmann
Part Number: FNQ-R-3
Bussmann CC-Tron Fuse, Current Limiting High Inrush Time Delay, Series: FNQ-R, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 3 A, 600 V, 200 kAIC Interrupt, Class: CC, 12 s at 200% Response, Ferrule End Terminal, Holder Mount, Cylindrical Body Type, Dual Element, Melamine Tube, 13/32 in Dia x 1-1/2 in L Body Size
Additional Description: BUSS-FNQ-R-3 FUSE 3 A 600VAC
Catalog Description: Eaton Bussmann Series Class CC fuse, FNQ, time-delay, dual-element current limiting fuse, 3 A, rejection style fuse, interrupting rating of 200kA at 600Vac
FNQ-R-3 Application
Industrial Facilities and Factories, Safety and Security Systems, Line Protection, Small Control Transformers, Isolated and In-Line Fuse Holders ApplicationsFNQ-R-3 Item Features
- Time delay compatible with inrush characteristic of small control transformers
- Current limitation at class CC levels provides maximum component short circuit current protection
- 200 kA interrupt rating provides high ratings at all circuit locations
- Class CC rejection feature with appropriate fuse block, prevents inserting lesser rated supplementary fuse
- Nickel plated brass end caps
- https://www.youtube.com/watch?v=YMvqUyoETXk
FNQ-R-3 Standards
CE Certified|CSA File No.53787-HRC-MISC|RoHS Compliant|UL 248-4 File No.E4273 Guide No. JDDZSKU #7609Part Number #FNQ-R-3UNSPSC39121606UPC00051712147088
