Part Number # FNQ-R-4-1/2

SKU # 2206533

Bussmann FNQ-R-4-1/2 Time Delay Fuse

Name: Bussmann FNQ-R-4-1/2 Time Delay Fuse
Brand: Bussmann
SKU: 2206533
Price: 725.9 USD
Availability: OutOfStock

Part Number # FNQ-R-4-1/2

SKU # 2206533

$725.90 / 10Each

Typical price:$1345.40 / Each

($72.59 / 1)

Bussmann FNQ-R-4-1/2 Key Features

Brand:	Bussmann
Part Number # :	FNQ-R-4-1/2
SKU #:	2206533
Amperage Rating:	4.5 A
Interrupt Rating:	200 kAIC
Response Time:	12 s at 200%
Series:	FNQ-R
Type:	Current Limiting Time Delay
Material:	Melamine Tube
UNSPSC:	39121606
UPC:	00051712582421

Buy Now Pay Later

Get 30 days to pay with Net 30 Terms. Apply Now.

$725.90 / 10Each

Typical price:$1345.40 / Each

($72.59 / 1)

Quantity:

Bussmann FNQ-R-4-1/2 Time Delay Fuse

Brand: Bussmann

Part Number: FNQ-R-4-1/2

Bussmann CC-Tron Fuse, Current Limiting Time Delay, Series: FNQ-R, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 4.5 A, 600 V, 200 kAIC Interrupt, Class: CC, 12 s at 200% Response, Ferrule End Terminal, Holder Mount, Cylindrical Body Type, Dual Element, Melamine Tube, 13/32 in Dia x 1-1/2 in L Body Size

Additional Description: BUSS-FNQ-R-4-1/2 (N) CLASS CC TIME DELAY NON-CANCELABLE, NON-RETURNABLE

Catalog Description: Eaton Bussmann Series Class CC fuse, FNQ, time-delay, dual-element current limiting fuse, 4.5 A, rejection style fuse, interrupting rating of 200kA at 600Vac

FNQ-R-4-1/2 Application

Industrial Facilities and Factories, Safety and Security Systems, Line Protection, Small Control Transformers, Isolated and In-Line Fuse Holders Applications

FNQ-R-4-1/2 Item Features

Time delay compatible with inrush characteristic of small control transformers
Current limitation at class CC levels provides maximum component short circuit current protection
200 kA interrupt rating provides high ratings at all circuit locations
Class CC rejection feature with appropriate fuse block, prevents inserting lesser rated supplementary fuse
Nickel plated brass end caps
https://www.youtube.com/watch?v=YMvqUyoETXk

FNQ-R-4-1/2 Standards

CE Certified|CSA File No.53787-HRC-MISC|RoHS Compliant|UL 248-4 File No.E4273 Guide No. JDDZ

SKU #2206533

Part Number #FNQ-R-4-1/2

UNSPSC39121606

UPC00051712582421

: Bussmann FNQ-R-4-1/2 Catalog
Bussmann FNQ-R-4-1/2 Line Drawing
Bussmann FNQ-R-4-1/2 Specification Sheet

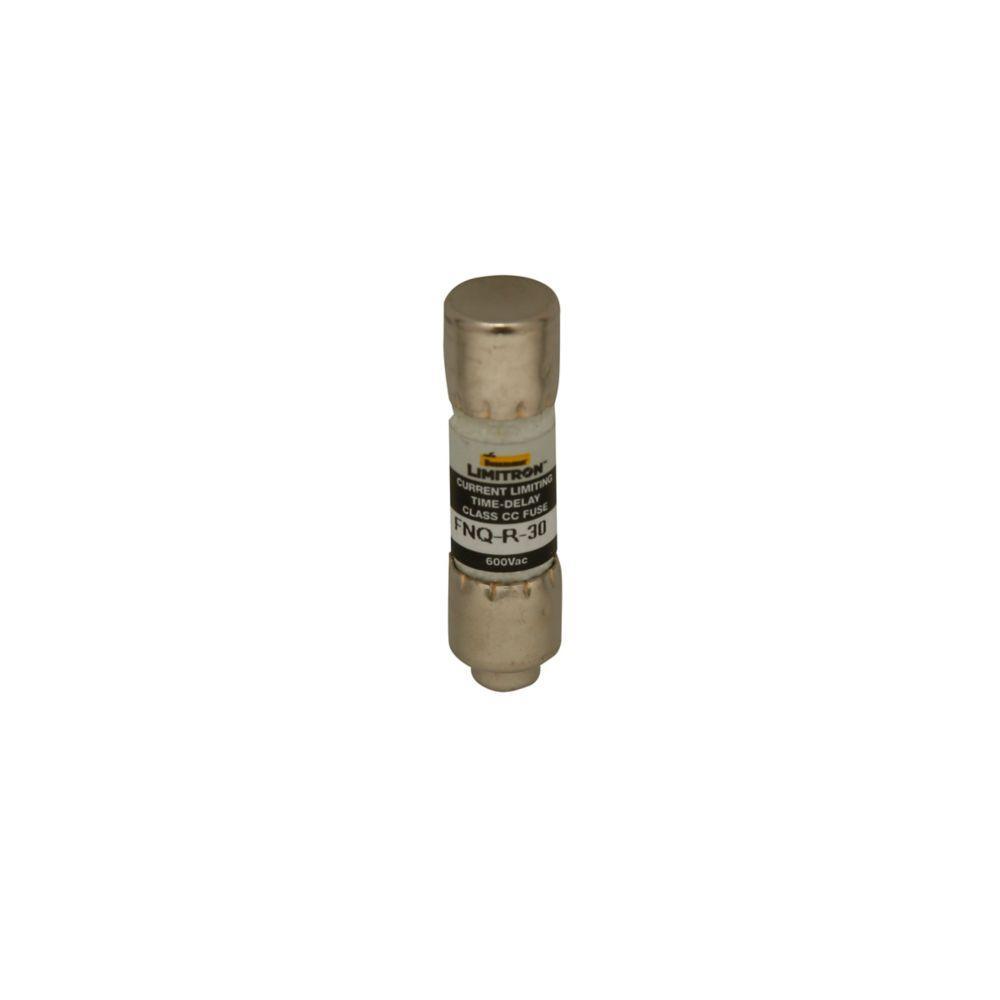

Image provided may only be a representation of final product and may include optional equipment
