Part Number # FNQ-R-7
SKU # 994181
Image Disclaimers Message
FNQ-R-7

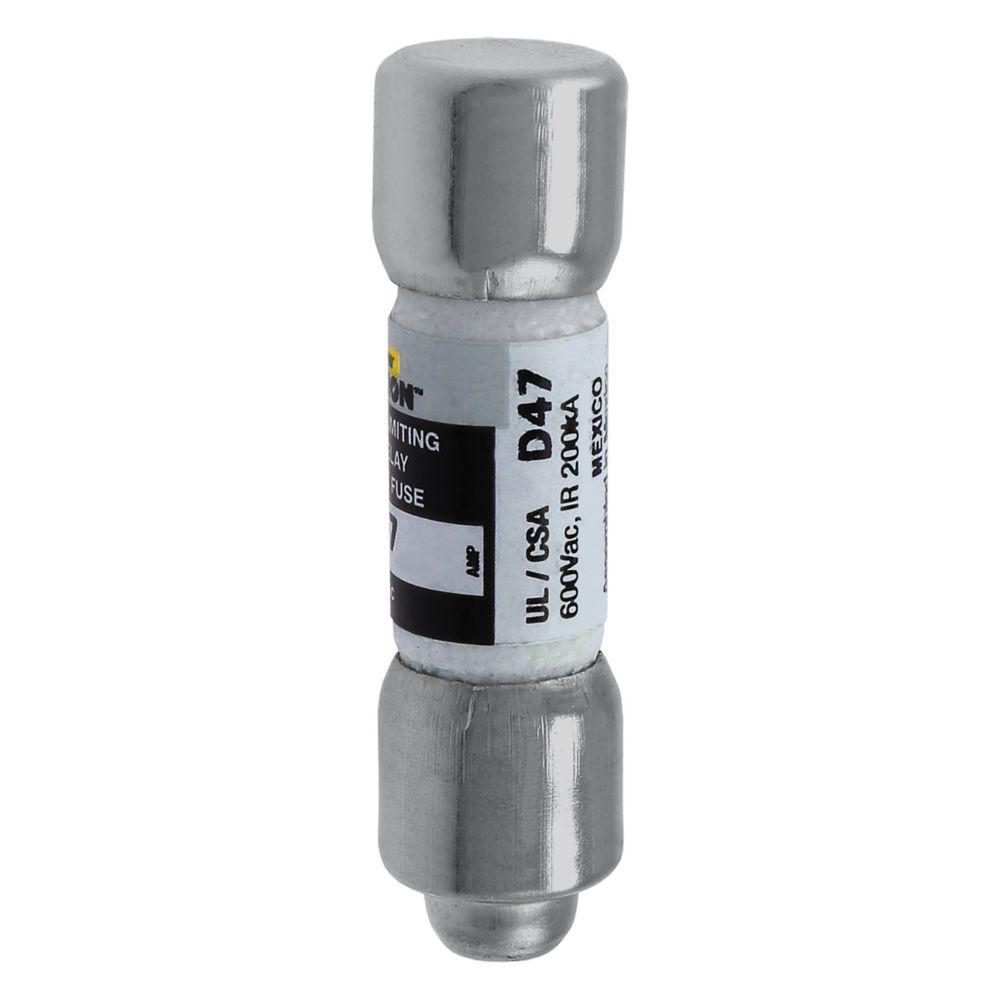

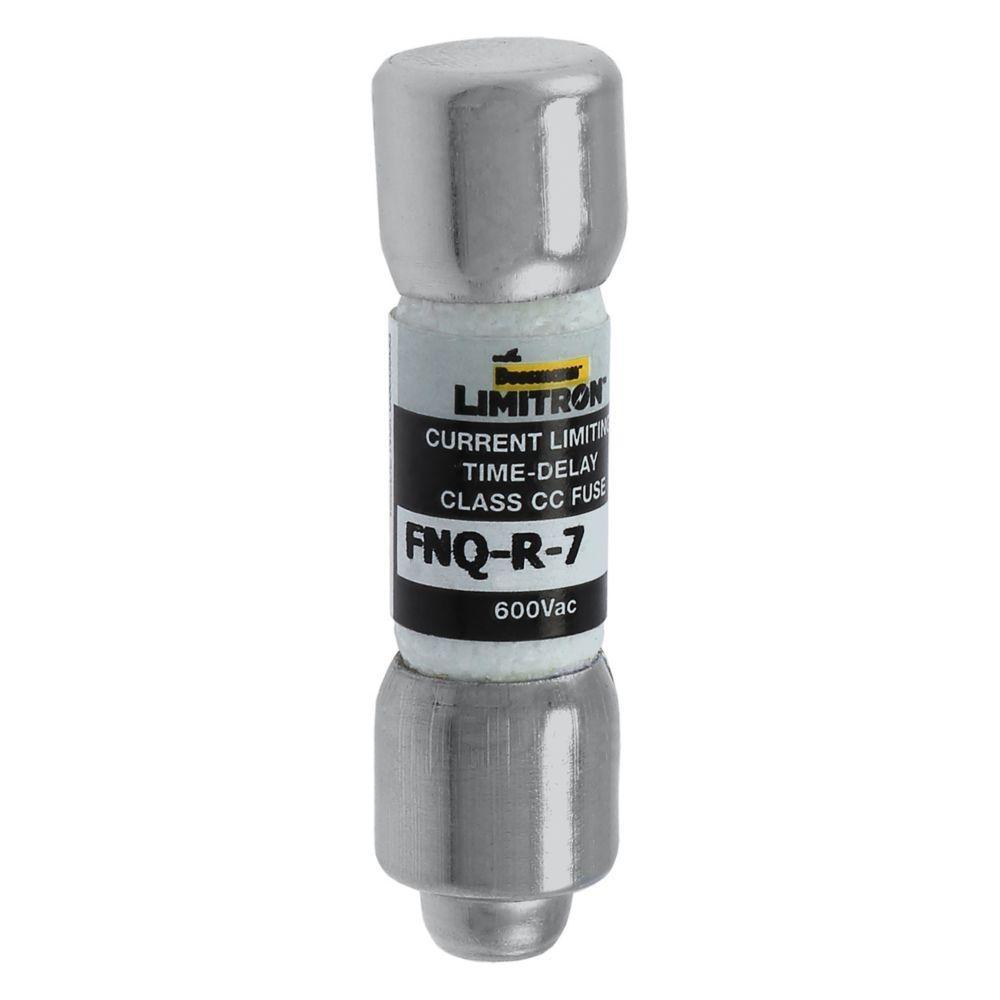

Bussmann FNQ-R-7 Time Delay Fuse
Part Number # FNQ-R-7
SKU # 994181
Bussmann FNQ-R-7 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | FNQ-R-7 |
| SKU #: | 994181 |
| Amperage Rating: | 7, 7 A |
| Body Type: | Cylindrical |
| Class: | CC |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 200, 200 kAIC |
| Rejection/Non-Rejection: | Rejection |
| Response Time: | 12, 12 s at 200% |
| Series: | FNQ-R |
| Terminal Type: | Ferrule, Ferrule End |
| Type: | Current Limiting Time Delay |
| Country of origin: | MX |
| Material: | Melamine, Melamine Tube |
| Mounting type: | Holder |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121606 |
| UPC: | 00051712558259 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann FNQ-R-7 Time Delay Fuse
Brand: Bussmann
Part Number: FNQ-R-7
Bussmann CC-Tron Fuse, Current Limiting Time Delay, Series: FNQ-R, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 7 A, 600 V, 200 kAIC Interrupt, Class: CC, 12 s at 200% Response, Ferrule End Terminal, Holder Mount, Cylindrical Body Type, Dual Element, Melamine Tube, 13/32 in Dia x 1-1/2 in L Body Size
Additional Description: BUSS-FNQ-R-7 CLASS CC TIME DELAY
Catalog Description: Eaton Bussmann Series Class CC fuse, FNQ, time-delay, dual-element current limiting fuse, 7 A, rejection style fuse, interrupting rating of 200kA at 600Vac
FNQ-R-7 Application
Industrial Facilities and Factories, Safety and Security Systems, Line Protection, Small Control Transformers, Isolated and In-Line Fuse Holders ApplicationsFNQ-R-7 Item Features
- Time delay compatible with inrush characteristic of small control transformers
- Current limitation at class CC levels provides maximum component short circuit current protection
- 200 kA interrupt rating provides high ratings at all circuit locations
- Class CC rejection feature with appropriate fuse block, prevents inserting lesser rated supplementary fuse
- Nickel plated brass end caps
- https://www.youtube.com/watch?v=YMvqUyoETXk
FNQ-R-7 Standards
RoHS Compliant,CE MarkedSKU #994181Part Number #FNQ-R-7UNSPSC39121606UPC00051712558259
