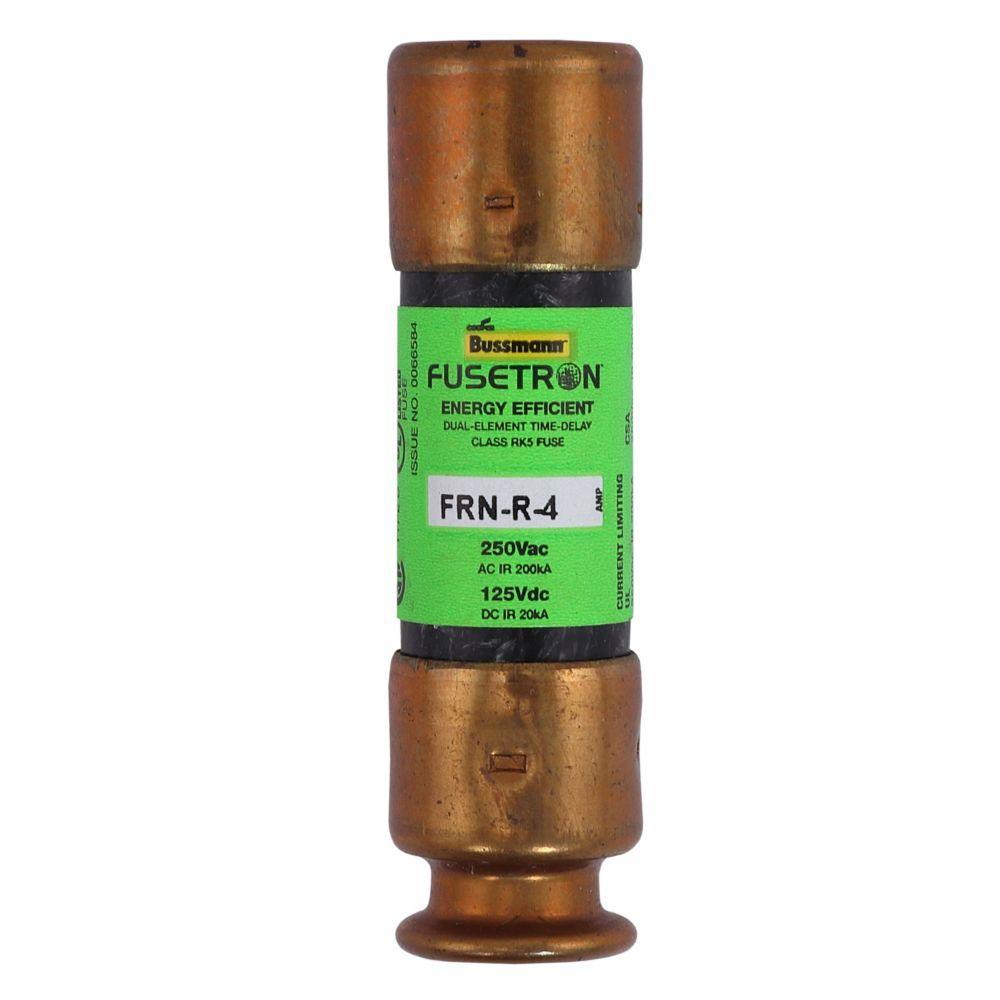

Bussmann FRN-R-4 Time Delay Fuse
Part Number # FRN-R-4
SKU # 7677
FRN-R-4
Bussmann FRN-R-4 Time Delay Fuse
Part Number # FRN-R-4
SKU # 7677
Bussmann FRN-R-4 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | FRN-R-4 |
| SKU #: | 7677 |
| Body Type: | Cylindrical |
| Class: | RK5 |
| Interrupt Rating: | 20/200 kA |
| Rejection/Non-Rejection: | Rejection |
| Response Time: | 10 s at 500% |
| Series: | FRN-R |
| Terminal Type: | Ferrule |
| Type: | Current Limiting |
| Material: | Fiberglass |
| Mounting type: | Holder |
| UNSPSC: | 39121606 |
| UPC: | 00051712507202 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann FRN-R-4 Time Delay Fuse
Brand: Bussmann
Part Number: FRN-R-4
Bussmann Fusetron Time Delay Fuse, Current Limiting, Series: FRN-R, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 4 A, 250 V AC/125 V DC, 20/200 kA Interrupt, Class: RK5, 10 s at 500% Response, Ferrule Terminal, Holder Mount, Cylindrical Body Type, Dual Element, Fiberglass, 0.56 in Dia x 2 in L Body Size
Additional Description: BUSS-FRN-R-4 FUSETRON DUAL-ELEMENT CLASS RK5
Catalog Description: Eaton Bussmann Series Class RK5 fuse, FRN-R, time-delay, dual-element, current limiting fuse, 4 A, non-indicating fuse, interrupting rating of 200 kA at 250 Vac and 20 kA at 125 Vdc
FRN-R-4 Application
Combination Starters, Machinery Disconnects, Motor Control Centers and Power Panelboard Applications, Safety and Security SystemsFRN-R-4 Item Features
- Provides motor overload, ground fault and short circuit protection
- Helps protect motors against burnout from overloads
- Helps protect motors against burnout from single phasing on 3 ph systems
- Simplifies and improves blackout prevention (selective co-ordination ratios)
- Dual element fuses can be applied in circuits subject to temporary motor overloads and surge currents to provide both high performance short circuit and overload protection
- The overload element provides protection against low level over current of overloads and will hold an overload which is five times greater than the ampere rating of the fuse for a minimum of 10 s
- https://www.youtube.com/watch?v=YMvqUyoETXk
FRN-R-4 Standards
CE Certified|CSA File No. 53787 C22.2 No. 248.12 1422-02|UL 248-12/File No. E4273|UL Guide JDDZSKU #7677Part Number #FRN-R-4UNSPSC39121606UPC00051712507202
Image provided may only be a representation of final product and may include optional equipment
