Part Number # FRN-R-450
SKU # 2421716
FRN-R-450

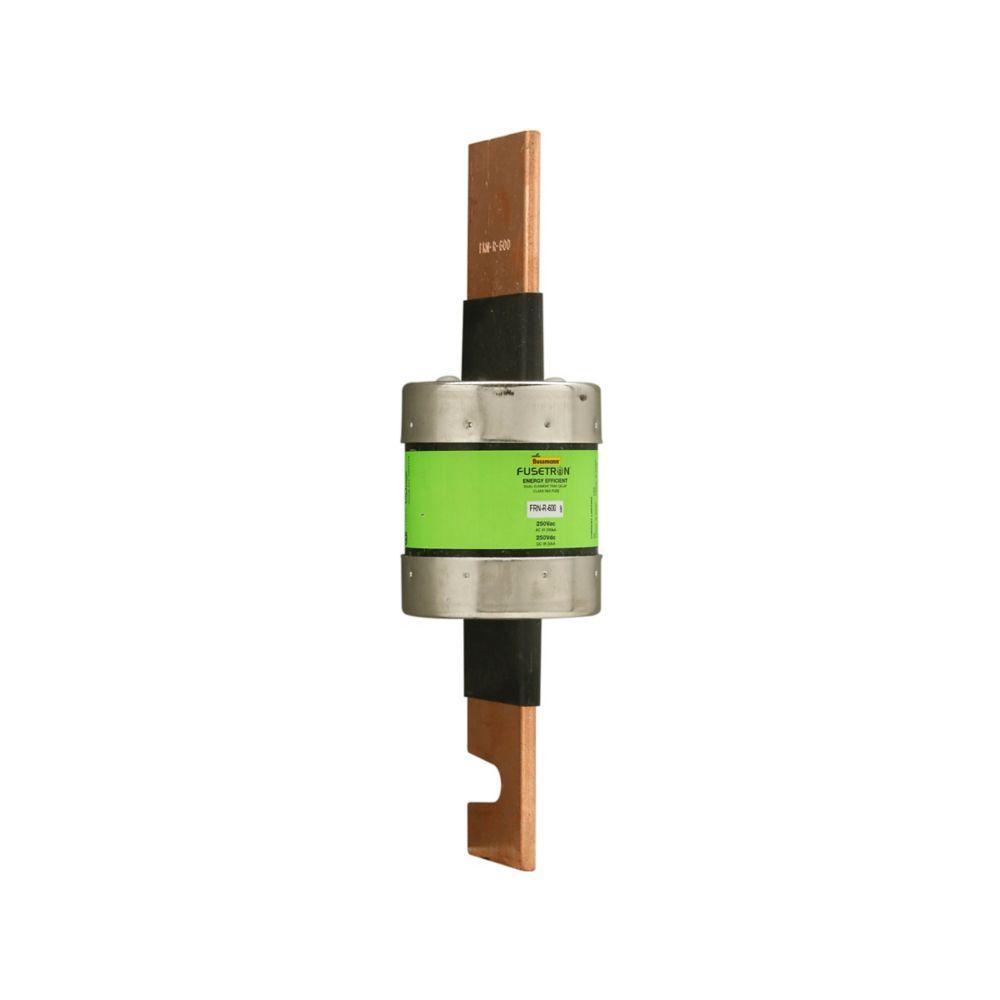

Bussmann FRN-R-450 Fusetron Fuse
Part Number # FRN-R-450
SKU # 2421716
Bussmann FRN-R-450 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | FRN-R-450 |
| SKU #: | 2421716 |
| Amperage Rating: | 450 A |
| Body Type: | Cartridge |
| Class: | RK5 |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 200/20 kAIC |
| Rejection/Non-Rejection: | Rejection |
| Response Time: | 10 s at 500% |
| Series: | FRN-R |
| Terminal Type: | Blade End |
| Type: | Current Limiting Time Delay |
| Country of origin: | MX |
| Material: | Fiberglass |
| Mounting type: | Holder |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121606 |
| UPC: | 00051712507547 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann FRN-R-450 Fusetron Fuse
Brand: Bussmann
Part Number: FRN-R-450
Bussmann Fusetron™ Fuse, Current Limiting Time Delay, Series: FRN-R, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 450 A, 250 VAC/125 VDC, 200/20 kAIC Interrupt, Class: RK5, 10 s at 500% Response, Blade End Terminal, Holder Mount, Cartridge Body Type, Dual Element, Fiberglass, 2.88 in Dia x 10.38 in L Body Size
Additional Description: BUSS-FRN-R-450 FUSETRON DUAL-ELEMENT
Catalog Description: Eaton Bussmann Series Class RK5 fuse, FRN-R, time-delay, dual-element, current limiting fuse, 450 A, non-indicating fuse, interrupting rating of 200 kA at 250 Vac and 20 kA at 250 Vdc
FRN-R-450 Application
Industrial Facilities and Factories, Safety and Security Systems, Combination Starters, Machinery Disconnects, Motor Control Centers and Power Panelboard ApplicationsFRN-R-450 Item Features
- Provides motor overload, ground fault and short circuit protection
- Helps protect motors against burnout from overloads
- Helps protect motors against burnout from 1 ph on 3 ph systems
- Simplifies and improves blackout prevention (selective co-ordination ratios)
- Dual element fuses can be applied in circuits subject to temporary motor overloads and surge currents to provide both high performance short circuit and overload protection
- The overload element provides protection against low level overcurrent of overloads and will hold an overload which is 5X greater than the amperage rating of the fuse for a minimum of 10 s
- https://www.youtube.com/watch?v=YMvqUyoETXk
FRN-R-450 Standards
CE MarkedSKU #2421716Part Number #FRN-R-450UNSPSC39121606UPC00051712507547
Image provided may only be a representation of final product and may include optional equipment
