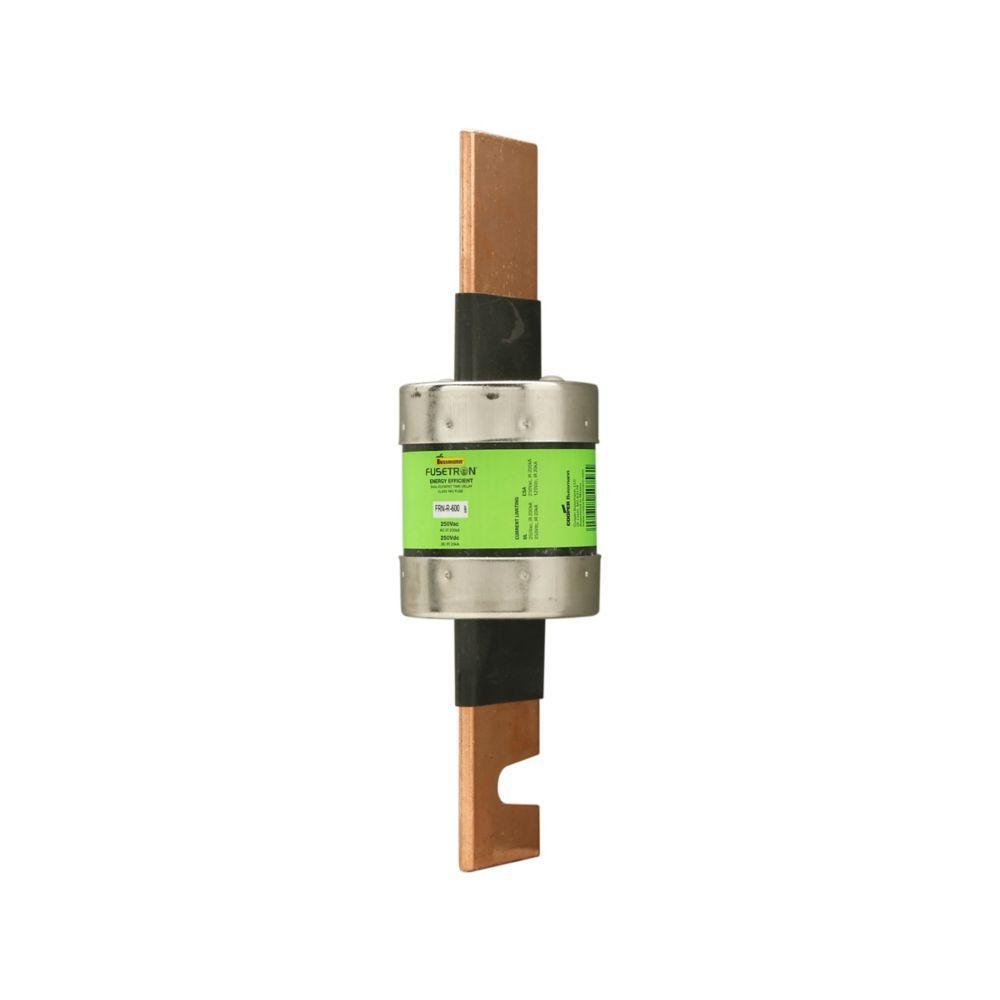

Bussmann FRN-R-500 Fusetron Fuse
Part Number # FRN-R-500
SKU # 2421717
$432.17 / Each
Bussmann FRN-R-500 Key Features
Brand: Bussmann
Part Number # FRN-R-500
SKU #2421717
Amperage Rating: 500 A
Body Type: Cartridge
Class: RK5
Indicating/Non-Indicating: Non-Indicating
Interrupt Rating: 200/20 kAIC
Rejection/Non-Rejection: Rejection
Response Time: 10 s at 500%
Series: FRN-R
Terminal Type: Blade End
Type: Current Limiting Time Delay
Voltage Rating: 250 VAC/125 VDC
Country of origin: MX
Material: Fiberglass
Mounting type: Holder
Manufacturer Name: Eaton
UNSPSC: 39121606
UPC: 00051712507554
$432.17 / Each
Bussmann FRN-R-500 Fusetron Fuse
Brand: Bussmann
Part Number: FRN-R-500
Bussmann Fusetron™ Fuse, Current Limiting Time Delay, Series: FRN-R, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 500 A, 250 VAC/125 VDC, 200/20 kAIC Interrupt, Class: RK5, 10 s at 500% Response, Blade End Terminal, Holder Mount, Cartridge Body Type, Dual Element, Fiberglass, 2.88 in Dia x 10.38 in L Body Size
Additional Description: BUSS-FRN-R-500 FUSETRON DUAL-ELEMENT
Catalog Description: Eaton Bussmann Series Class RK5 fuse, FRN-R, time-delay, dual-element, current limiting fuse, 500 A, non-indicating fuse, interrupting rating of 200 kA at 250 Vac and 20 kA at 250 Vdc
FRN-R-500 Application
Industrial Facilities and Factories, Safety and Security Systems, Combination Starters, Machinery Disconnects, Motor Control Centers and Power Panelboard ApplicationsFRN-R-500 Item Features
- Provides motor overload, ground fault and short circuit protection
- Helps protect motors against burnout from overloads
- Helps protect motors against burnout from 1 ph on 3 ph systems
- Simplifies and improves blackout prevention (selective co-ordination ratios)
- Dual element fuses can be applied in circuits subject to temporary motor overloads and surge currents to provide both high performance short circuit and overload protection
- The overload element provides protection against low level overcurrent of overloads and will hold an overload which is 5X greater than the amperage rating of the fuse for a minimum of 10 s
- https://www.youtube.com/watch?v=YMvqUyoETXk
FRN-R-500 Standards
CE Certified|CSA C22.2 File No.53787/248.12|UL 248-12 File No.E4273 Guide JDDZSKU #2421717Part Number #FRN-R-500UNSPSC39121606UPC00051712507554
