Part Number # FRN-R-6-1/4
SKU # 7685
FRN-R-6-1/4
Bussmann FRN-R-6-1/4 Time Delay Fuse
Part Number # FRN-R-6-1/4
SKU # 7685
Bussmann FRN-R-6-1/4 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | FRN-R-6-1/4 |
| SKU #: | 7685 |
| Interrupt Rating: | 20/200 kA |
| Response Time: | 10 s at 500% |
| Series: | FRN-R |
| Type: | Current Limiting |
| UNSPSC: | 39121606 |
| UPC: | 00051712507240 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann FRN-R-6-1/4 Time Delay Fuse
Brand: Bussmann
Part Number: FRN-R-6-1/4
Bussmann Fusetron Time Delay Fuse, Current Limiting, Series: FRN-R, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 6.25 A, 250 VAC/125 VDC, 20/200 kA Interrupt, Class: RK5, 10 s at 500% Response, Ferrule Terminal, Holder Mount, Cylindrical Body Type, Dual Element, Fiberglass, 0.56 in Dia x 2 in L Body Size
Additional Description: BUSS-FRN-R-6-1/4 (N) FUSETRON DUAL-ELEMENT CLASS RK5 DUAL-ELEM NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Bussmann Series Class RK5 fuse, FRN-R, time-delay, dual-element, current limiting fuse, 6.25 A, non-indicating fuse, interrupting rating of 200 kA at 250 Vac and 20 kA at 125 Vdc
FRN-R-6-1/4 Application
Combination Starters, Machinery Disconnects, Motor Control Centers and Power Panelboard Applications, Safety and Security SystemsFRN-R-6-1/4 Item Features
- Provides motor overload, ground fault and short circuit protection
- Helps protect motors against burnout from overloads
- Helps protect motors against burnout from single phasing on 3 ph systems
- Simplifies and improves blackout prevention (selective co-ordination ratios)
- Dual element fuses can be applied in circuits subject to temporary motor overloads and surge currents to provide both high performance short circuit and overload protection
- The overload element provides protection against low level over current of overloads and will hold an overload which is five times greater than the ampere rating of the fuse for a minimum of 10 s
- Fusetron fuses are on average 23% more energy efficient than the next leading brand
- https://www.youtube.com/watch?v=YMvqUyoETXk
FRN-R-6-1/4 Standards
CE Certified|CSA 1422-02/File No. 53787|CSA C22.2 No. 248.12|UL 248-12 RK5|UL File No. E4273|UL Guide JDDZSKU #7685Part Number #FRN-R-6-1/4UNSPSC39121606UPC00051712507240

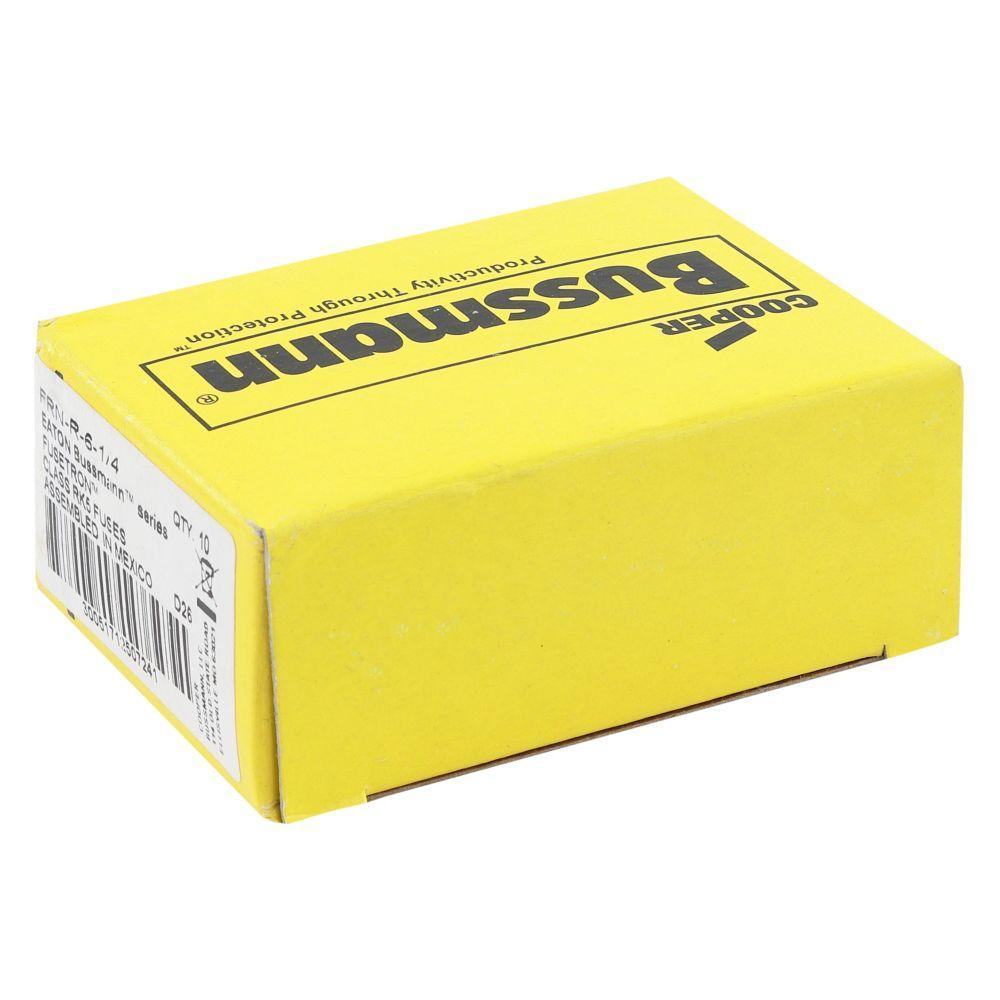

Image provided may only be a representation of final product and may include optional equipment
