Brand: Bussmann
FRS-R-60

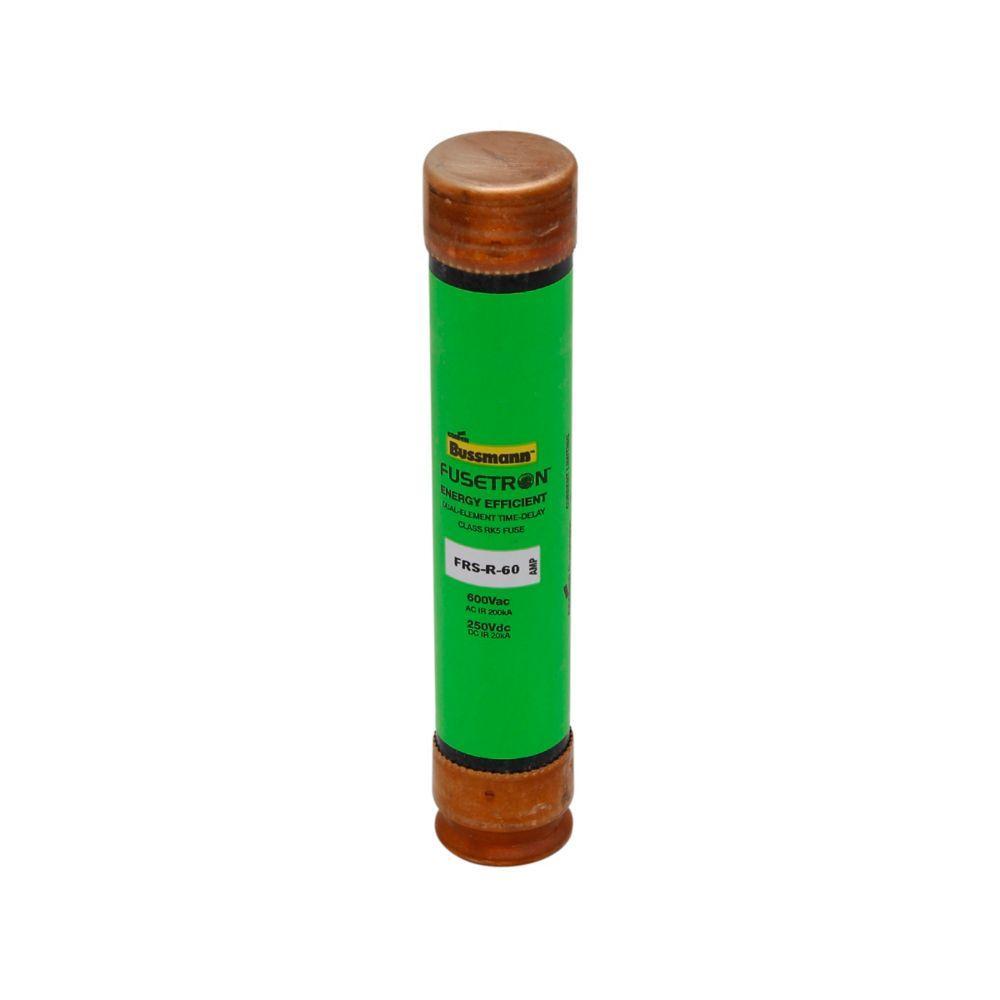

Bussmann FRS-R-60 Time Delay Fuse
Part Number # FRS-R-60
SKU # 7737
$644.70 / 10Each
Typical price:$947.70 / Each
Bussmann FRS-R-60 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | FRS-R-60 |
| SKU #: | 7737 |
| Amperage Rating: | 60 A |
| Body Type: | Cylindrical |
| Class: | RK5 |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 20/200 kA, 200/20 |
| Rejection/Non-Rejection: | Rejection |
| Response Time: | 10, 10 s at 500% |
| Series: | FRS-R |
| Terminal Type: | Ferrule |
| Type: | Current Limiting |
| Country of origin: | MX |
| Material: | Fiberglass |
| Mounting type: | Holder |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121606 |
| UPC: | 00051712508391 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$644.70 / 10Each
Typical price:$947.70 / Each
Quantity:
- Bussmann Fusetron Time Delay Fuse, Current Limiting, Series: FRS-R, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 60 A, 600 V AC/250 V DC, 20/200 kA Interrupt, Class: RK5, 10 s at 500% Response, Ferrule Terminal, Holder Mount, Cylindrical Body Type, Dual Element, Fiberglass, 1.06 in Dia x 5.5 in L Body Size
FRS-R-60 Application
Combination Starters, Machinery Disconnects, Motor Control Centers and Power Panelboard Applications, Safety and Security SystemsFRS-R-60 Item Features
- Without open fuse indication
- Dual element fuses can be applied in circuits subject to temporary motor overloads and surge currents to provide both high performance short circuit and overload protection
- Offers a 10 sec time delay at 5 times the rated current
- The time-delay feature makes it possible to use fuse amp ratings that are much smaller than those of non-time delay fuses
- Provides current limitation to help protect downstream components from high fault currents
- Gives motor running back-up protection to motors without extra cost
- https://www.youtube.com/watch?v=YMvqUyoETXk
FRS-R-60 Standards
CE Certified|CSA 1422-02/File No. 53787|CSA C22.2 No. 248.12|UL 248-12 RK5|UL File No. E4273|UL Guide JDDZSKU #7737Part Number #FRS-R-60UNSPSC39121606UPC00051712508391
