Brand: Bussmann
FRS-R-600

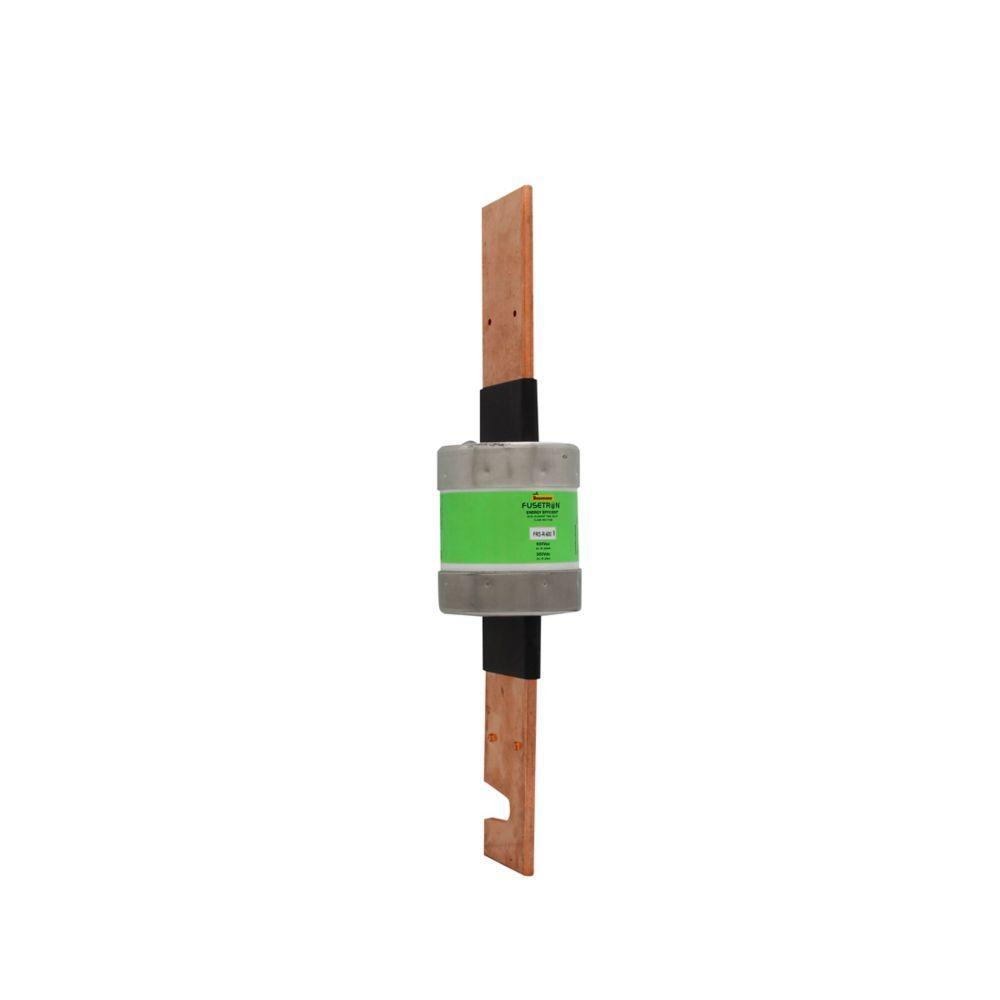

Bussmann FRS-R-600 Time Delay Fuse
Part Number # FRS-R-600
SKU # 7738
$806.40 / Each
Typical price:$1185.41 / Each
Bussmann FRS-R-600 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | FRS-R-600 |
| SKU #: | 7738 |
| Amperage Rating: | 600, 600 A |
| Body Type: | Cartridge |
| Class: | RK5 |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 20/200 kA, 200/20 |
| Rejection/Non-Rejection: | Rejection |
| Response Time: | 10, 10 s at 500% |
| Series: | FRS-R |
| Terminal Type: | Blade, Knife Blade |
| Type: | Current Limiting Renewable |
| Country of origin: | MX |
| Material: | Fiberglass |
| Mounting type: | Holder |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121606 |
| UPC: | 00051712508568 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$806.40 / Each
Typical price:$1185.41 / Each
Quantity:
- Bussmann Fusetron Time Delay Fuse, Current Limiting Renewable, Series: FRS-R, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 600 A, 600 V AC/300 V DC, 20/200 kA Interrupt, Class: RK5, 10 s at 500% Response, Blade Terminal, Holder Mount, Cartridge Body Type, Dual Element, Fiberglass, 2.88 in Dia x 13.38 in L Body Size
FRS-R-600 Application
Combination Starters, Machinery Disconnects, Motor Control Centers and Power Panelboard Applications, Safety and Security SystemsFRS-R-600 Item Features
- Provides motor overload, ground fault and short circuit protection
- When used in circuits subject to surge currents such as those caused by motors, transformers and other inductive components, these fuses can be sized close to full-load amps to give maximum over current protection
- The time delay feature makes it possible to use fuse amperage ratings which are much smaller than those of non-time delay fuses
- Considerable cost savings occur by permitting the use of smaller size switches, panels and fuses themselves
- Provides a good deg of short circuit protection (greater current limitation) to help protect downstream components from high fault currents
- Gives motor running back-up protection to motors without extra cost
- Helps protect motors against burnout from overloads and single phasing when sized properly
- Simplifies and improves blackout prevention (selective co-ordination ratios)
- Dual element fuses can be applied in circuits subject to temporary motor overloads and surge currents to provide both high performance short circuit and overload protection
- https://www.youtube.com/watch?v=YMvqUyoETXk
FRS-R-600 Standards
CE MarkedSKU #7738Part Number #FRS-R-600UNSPSC39121606UPC00051712508568
