Part Number # FRS-R-80
SKU # 7744
FRS-R-80
Bussmann FRS-R-80 Time Delay Fuse
Part Number # FRS-R-80
SKU # 7744
$117.90 / Each
Typical price:$173.31 / Each
Bussmann FRS-R-80 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | FRS-R-80 |
| SKU #: | 7744 |
| Amperage Rating: | 80, 80 A |
| Interrupt Rating: | 200 kA, 200/20 |
| Response Time: | 10 |
| Series: | FRS-R |
| Terminal Type: | Knife Blade |
| Type: | Current Limiting Renewable |
| UNSPSC: | 39121606 |
| UPC: | 00051712508414 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$117.90 / Each
Typical price:$173.31 / Each
Quantity:
- Bussmann Fusetron Time Delay Fuse, Current Limiting Renewable, Series: FRS-R, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 80 A, 600 V AC/300 V DC, 200 kA Interrupt, Class: RK5, 10 s at 500% Response, Blade Terminal, Holder Mount, Cartridge Body Type, Dual Element, Fiberglass, 1.11 in Dia x 7.88 in L Body Size
FRS-R-80 Application
Combination Starters, Machinery Disconnects, Motor Control Centers and Power Panelboard Applications, Safety and Security SystemsFRS-R-80 Item Features
- Provides motor overload, ground fault and short circuit protection
- When used in circuits subject to surge currents such as those caused by motors, transformers and other inductive components, these fuses can be sized close to full-load amps to give maximum over current protection
- The time delay feature makes it possible to use fuse amperage ratings which are much smaller than those of non-time delay fuses
- Considerable cost savings occur by permitting the use of smaller size switches, panels and fuses themselves
- Provides a good deg of short circuit protection (greater current limitation) to help protect downstream components from high fault currents
- Gives motor running back-up protection to motors without extra cost
- Helps protect motors against burnout from overloads and single phasing when sized properly
- Simplifies and improves blackout prevention (selective co-ordination ratios)
- Dual element fuses can be applied in circuits subject to temporary motor overloads and surge currents to provide both high performance short circuit and overload protection
- https://www.youtube.com/watch?v=YMvqUyoETXk
FRS-R-80 Standards
CE Certified|CSA File No. 53787 C22.2/248.12 1422-02|UL 248-12/File No. E4273|UL Guide JDDZSKU #7744Part Number #FRS-R-80UNSPSC39121606UPC00051712508414

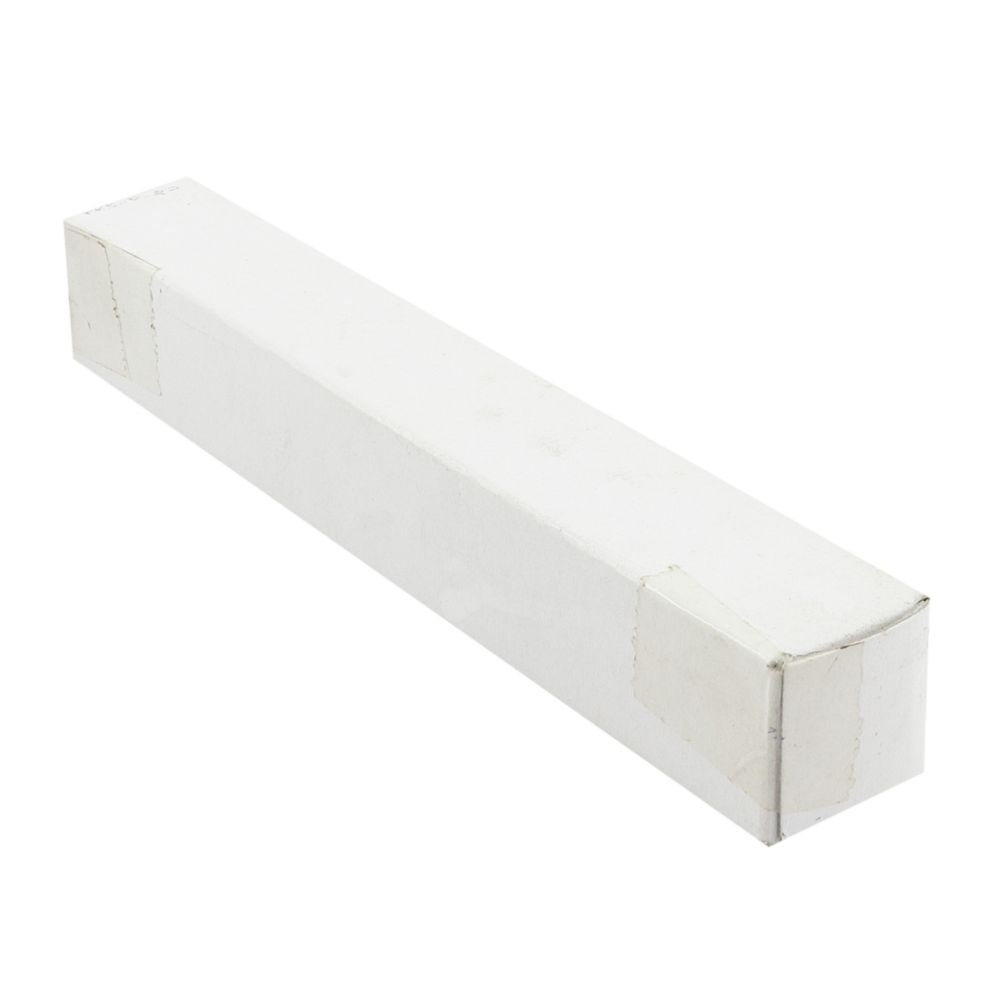

Image provided may only be a representation of final product and may include optional equipment
