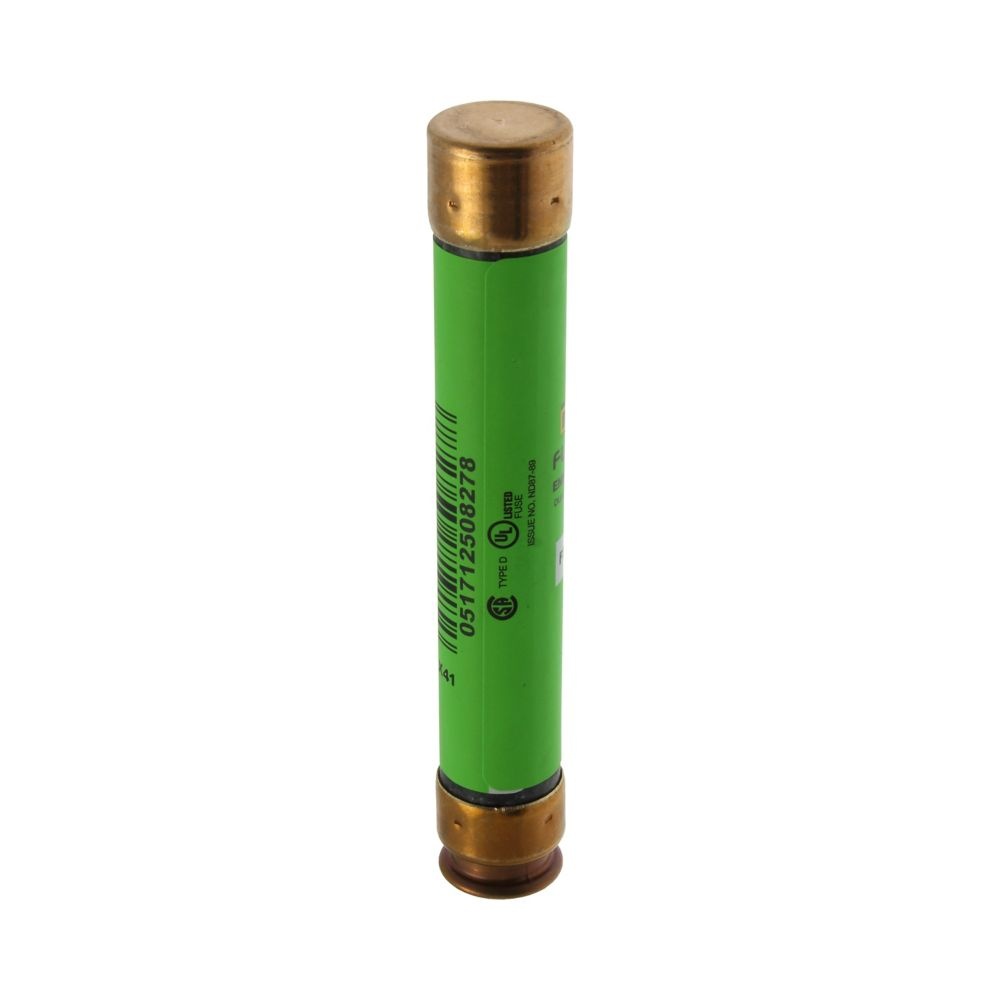

Bussmann FRS-R-9 Time Delay Fuse
Part Number # FRS-R-9
SKU # 44278
FRS-R-9
Bussmann FRS-R-9 Time Delay Fuse
Part Number # FRS-R-9
SKU # 44278
Bussmann FRS-R-9 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | FRS-R-9 |
| SKU #: | 44278 |
| Body Type: | Cylindrical |
| Class: | RK5 |
| Interrupt Rating: | 20/200 kA |
| Rejection/Non-Rejection: | Rejection |
| Response Time: | 10 s at 500% |
| Series: | FRS-R |
| Terminal Type: | Ferrule |
| Type: | Current Limiting Renewable |
| Material: | Fiberglass |
| Mounting type: | Holder |
| UNSPSC: | 39121606 |
| UPC: | 00051712508278 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann FRS-R-9 Time Delay Fuse
Brand: Bussmann
Part Number: FRS-R-9
Bussmann Fusetron Time Delay Fuse, Current Limiting Renewable, Series: FRS-R, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 9 A, 600 V AC/300 V DC, 20/200 kA Interrupt, Class: RK5, 10 s at 500% Response, Ferrule Terminal, Holder Mount, Cylindrical Body Type, Dual Element, Fiberglass, 0.81 in Dia x 5 in L Body Size
Additional Description: BUSS-FRS-R-9 FUSETRON DUAL ELEMENT FUSE CLASS RK5 RK5 ELEMENT
Catalog Description: Eaton Bussmann Series Class RK5 fuse, FRS-R, time-delay, dual-element, current limiting fuse, 9 A, non-indicating fuse, interrupting rating of 200 kA at 600 Vac and 20 kA at 300 Vdc
FRS-R-9 Application
Combination Starters, Machinery Disconnects, Motor Control Centers and Power Panelboard Applications, Safety and Security SystemsFRS-R-9 Item Features
- Dual element feature provides the best time delay performance, allowing closer sizing and superior protection of motors and transformers
- Closer sizing allows for smaller fuses and less costly switches
- Class RK5 fuses with a 200 kA interrupt rating for use in a broad range of applications
- Provides motor overload, ground fault and short circuit protection
- Helps protect motors against burnout from overloads and single phasing when sized properly
- Dual element fuses can be applied in circuits subject to temporary motor overloads and surge currents to provide both high performance short circuit and overload protection
- Offers a 10 sec time delay at 5 times the rated current
- The time delay feature makes it possible to use fuse amperage ratings which are much smaller than those of non-time delay fuses
- Considerable cost savings occur by permitting the use of smaller size switches, panels and fuses themselves
- Provides current limitation to help protect downstream components from high fault currents
- Gives motor running back-up protection to motors without extra cost
- https://www.youtube.com/watch?v=YMvqUyoETXk
FRS-R-9 Standards
CE MarkedSKU #44278Part Number #FRS-R-9UNSPSC39121606UPC00051712508278
