Bussmann FRS-R-90 Time Delay Fuse
Part Number # FRS-R-90
SKU # 7745
FRS-R-90
Bussmann FRS-R-90 Time Delay Fuse
Part Number # FRS-R-90
SKU # 7745
Bussmann FRS-R-90 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | FRS-R-90 |
| SKU #: | 7745 |
| Amperage Rating: | 90 A |
| Body Type: | Cylindrical |
| Class: | RK5 |
| Interrupt Rating: | 20/200 kA |
| Rejection/Non-Rejection: | Rejection |
| Response Time: | 10 s at 500% |
| Series: | FRS-R |
| Type: | Current Limiting |
| Material: | Fiberglass |
| Mounting type: | Holder |
| UNSPSC: | 39121606 |
| UPC: | 00051712508421 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann FRS-R-90 Time Delay Fuse
Brand: Bussmann
Part Number: FRS-R-90
Bussmann Fusetron Time Delay Fuse, Current Limiting, Series: FRS-R, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 90 A, 600 V AC/300 V DC, 20/200 kA Interrupt, Class: RK5, 10 s at 500% Response, Blade Terminal, Holder Mount, Cylindrical Body Type, Dual Element, Fiberglass, 1.11 in Dia x 7.88 in L Body Size
Additional Description: BUSS-FRS-R-90 FUSETRON DUAL ELEMENT FUSE CLASS RK5
Catalog Description: Eaton Bussmann Series Class RK5 fuse, FRS-R, time-delay, dual-element, current limiting fuse, 90 A, non-indicating fuse, interrupting rating of 200 kA at 600 Vac and 20 kA at 300 Vdc
FRS-R-90 Application
Combination Starters, Machinery Disconnects, Motor Control Centers and Power Panelboard Applications, Safety and Security SystemsFRS-R-90 Item Features
- Without open fuse indication
- Dual element fuses can be applied in circuits subject to temporary motor overloads and surge currents to provide both high performance short circuit and overload protection
- Offers a 10 sec time delay at 5 times the rated current
- The time-delay feature makes it possible to use fuse amp ratings that are much smaller than those of non-time delay fuses
- Provides a good deg of short circuit protection (greater current- limitation to help protect downstream components from high fault currents
- Gives motor running back-up protection to motors without extra cost
- Helps protect motors against burnout from overloads and single phasing when sized properly
- Simplifies and improves blackout prevention (selective co-ordination ratios)
- https://www.youtube.com/watch?v=YMvqUyoETXk
FRS-R-90 Standards
CE Certified|CSA 1422-02/File No. 53787|CSA C22.2 No. 248.12|UL 248-12 RK5|UL File No. E4273|UL Guide JDDZSKU #7745Part Number #FRS-R-90UNSPSC39121606UPC00051712508421

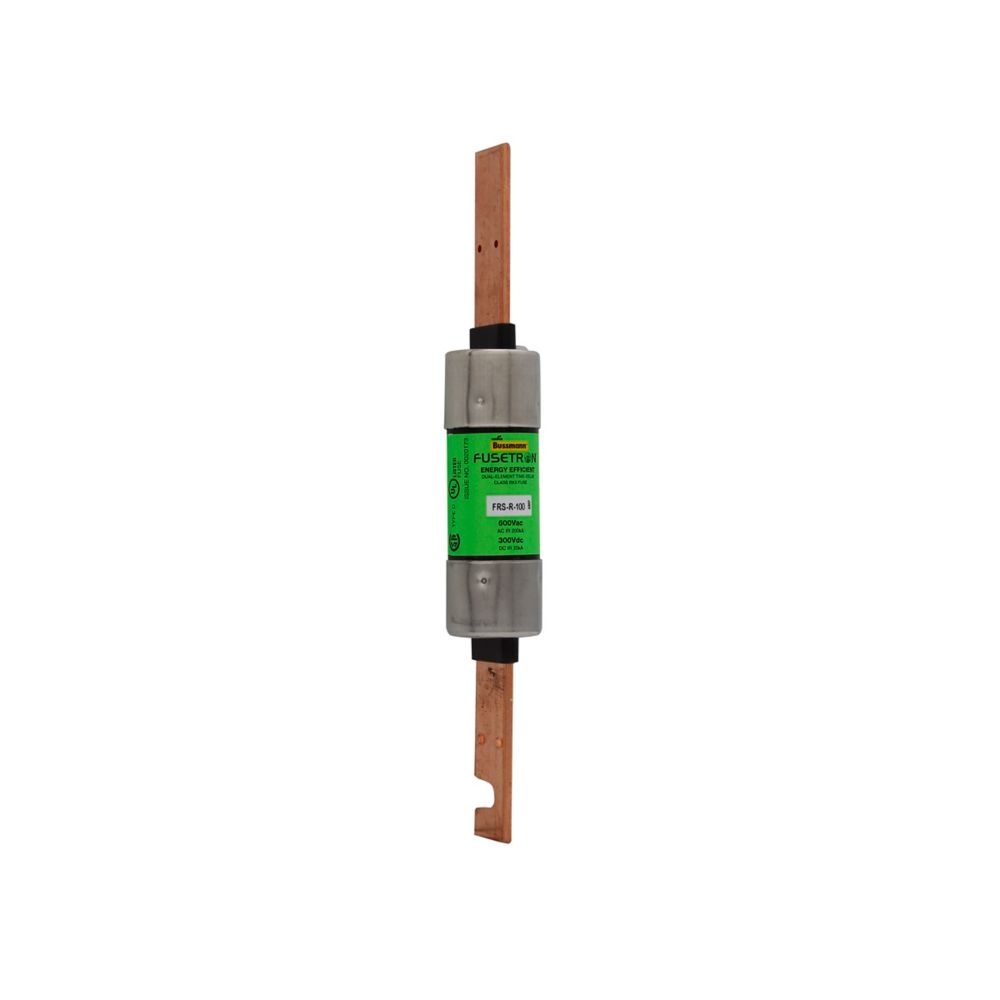

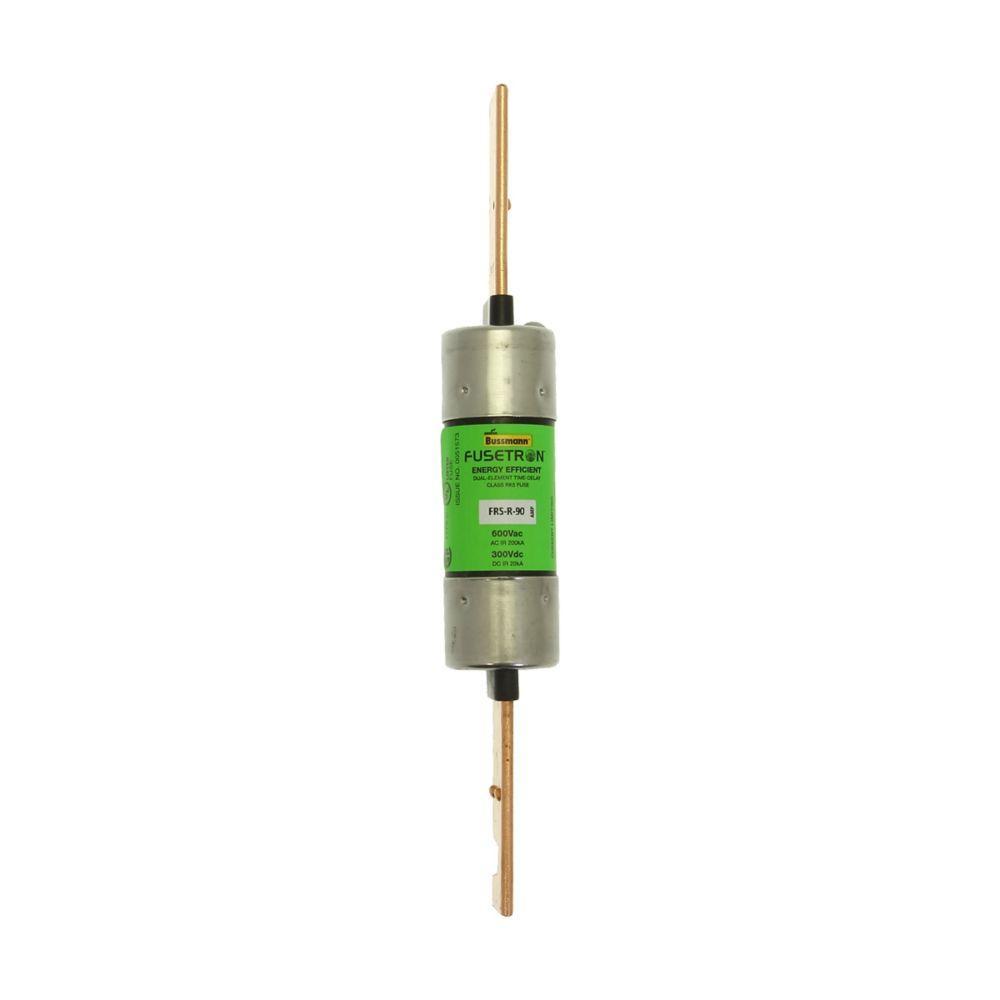

Image provided may only be a representation of final product and may include optional equipment
