Bussmann FWA-300B High Speed Fuse
Part Number # FWA-300B
SKU # 2202479
FWA-300B

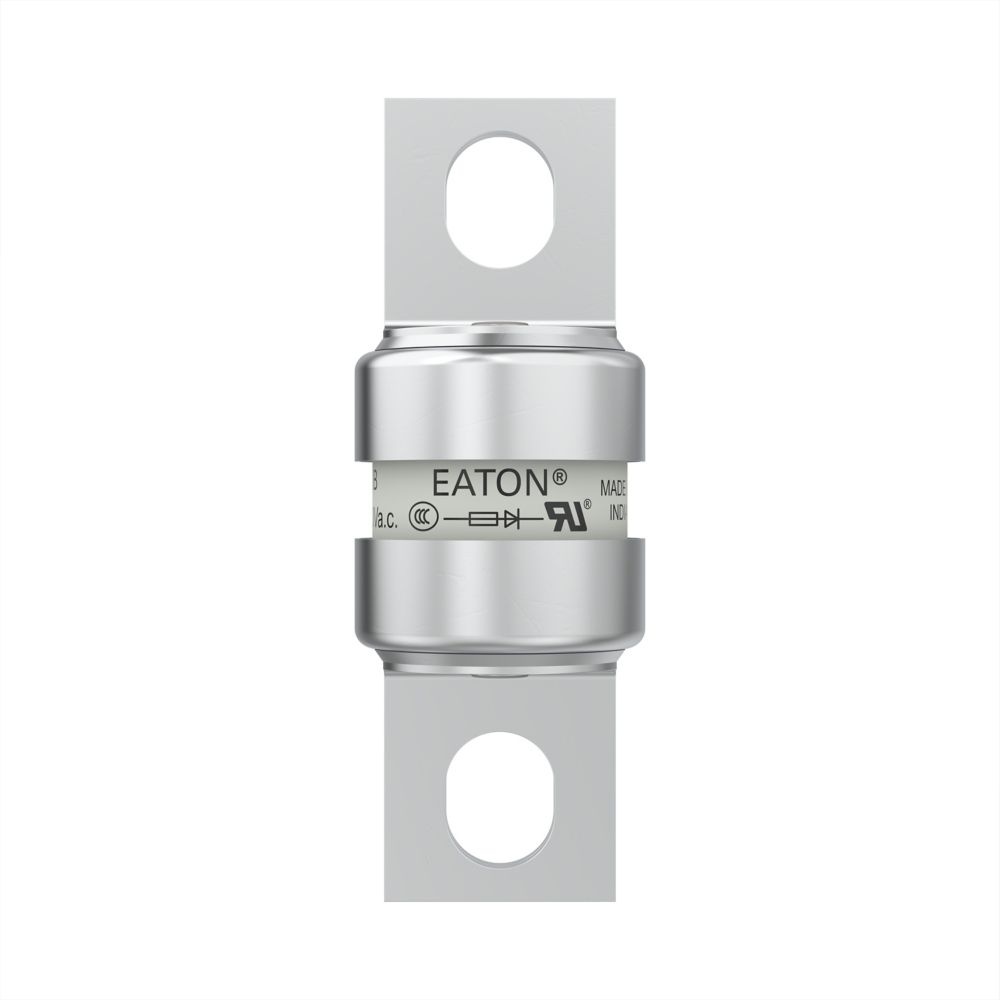

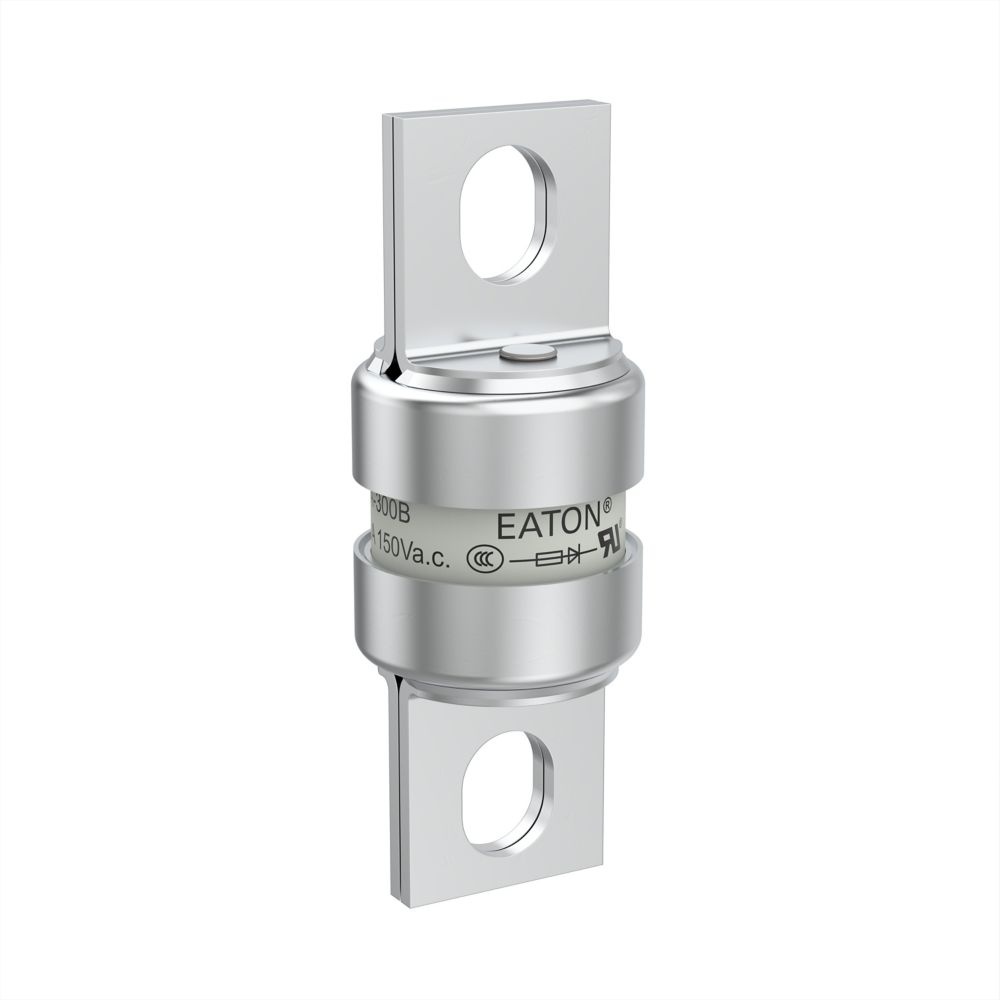

Bussmann FWA-300B High Speed Fuse
Part Number # FWA-300B
SKU # 2202479
Bussmann FWA-300B Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | FWA-300B |
| SKU #: | 2202479 |
| Body Type: | Cylindrical |
| Frequency Rating: | 45 to 1000 Hz |
| Interrupt Rating: | 100 kA |
| Rejection/Non-Rejection: | Non-Rejection |
| Series: | FWA |
| Terminal Type: | Blade End |
| Type: | Fast Acting Semi-Conductor |
| Material: | Ceramic |
| UNSPSC: | 39121625 |
| UPC: | 00051712877855 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann FWA-300B High Speed Fuse
Brand: Bussmann
Part Number: FWA-300B
Bussmann High Speed Fuse, Fast Acting Semi-Conductor, Series: FWA, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 300 A, 150 V AC, 100 kA Interrupt, 45 to 1000 Hz, Blade End Terminal, Stud Mount, Cylindrical Body, Single Element, Ceramic, 1 in Dia x 2.656 in L Body Size
Additional Description: BUSS-FWA-300B SEMI-COND FUSE 300A 150V AC
Catalog Description: Eaton Bussmann series FWA high speed fuse, 500 Vac/dc (35-800A only), 300A, 200 kAIC Vac (70-1000A), 20 kAIC at 150 Vdc (70-800A), 100 kAIC at 80 Vdc (70-1000A), None, High speed fuse, Blade end X blade end, Stud
FWA-300B Application
Electrical Assemblies, Panels, EOEMs, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starters Applications, Safety and Security Systems, Industrial Facilities and Factories - Facility and Critical PowerFWA-300B Item Features
- Excellent DC performance
- Low arc voltage and low energy let-through
- Low wattage loss
- Superior cycling capability
- https://www.youtube.com/watch?v=YMvqUyoETXk
FWA-300B Standards
UL Recognized ,UL Recognized ,UL Recognized ,UL Recognized ,UL Recognized,CE Marked,RoHS Compliant,RoHS-konform,CE-Kennzeichnung,Uzyskano oznaczenie CE,Zgodny z wymogami RoHS,Conforme a RoHS,Con marchio CE,CE-markering,RoHS-compliantSKU #2202479Part Number #FWA-300BUNSPSC39121625UPC00051712877855
Image provided may only be a representation of final product and may include optional equipment
