Part Number # FWA-400B
SKU # 2410943
FWA-400B
Bussmann FWA-400B High Speed Fuse
Part Number # FWA-400B
SKU # 2410943
Bussmann FWA-400B Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | FWA-400B |
| SKU #: | 2410943 |
| Amperage Rating: | 400 A |
| Body Type: | Cylindrical |
| Frequency Rating: | 45 to 1000 Hz |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 100 kA, 20 kA |
| Rejection/Non-Rejection: | Non-Rejection |
| Series: | FWA |
| Terminal Type: | Blade, Blade End |
| Type: | Fast Acting Semi-Conductor, Semiconductor |
| Country of origin: | IN |
| Material: | Ceramic |
| Mounting type: | Stud |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121625 |
| UPC: | 00051712577878 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann FWA-400B High Speed Fuse
Brand: Bussmann
Part Number: FWA-400B
Bussmann High Speed Fuse, Fast Acting Semi-Conductor, Series: FWA, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 400 A, 150 VAC, 100 kA Interrupt, 45 to 1000 Hz, Blade End Terminal, Stud Mount, Cylindrical Body, Single Element, Ceramic, 1 in Dia x 2.656 in L Body Size
Additional Description: BUSS-FWA-400B (N) SEMI-COND FUSE 400A 150V AC NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Bussmann series FWA high speed fuse, 500 Vac/dc (35-800A only), 400A, 200 kAIC Vac (70-1000A), 20 kAIC at 150 Vdc (70-800A), 100 kAIC at 80 Vdc (70-1000A), None, High speed fuse, Blade end X blade end, Stud
FWA-400B Application
For DC common bus, DC drives, power converters/rectifiers and reduced voltage startersFWA-400B Item Features
- Low arc voltage and low energy let-through, excellent DC performance, superior cycling capability, low wattage loss
FWA-400B Standards
UL Recognized ,UL Recognized ,UL Recognized ,UL Recognized ,UL Recognized,RoHS Compliant,CE Marked,CE-Kennzeichnung,RoHS-konform,Uzyskano oznaczenie CE,Zgodny z wymogami RoHS,Conforme a RoHS,Con marchio CE,CE-markering,RoHS-compliantSKU #2410943Part Number #FWA-400BUNSPSC39121625UPC00051712577878

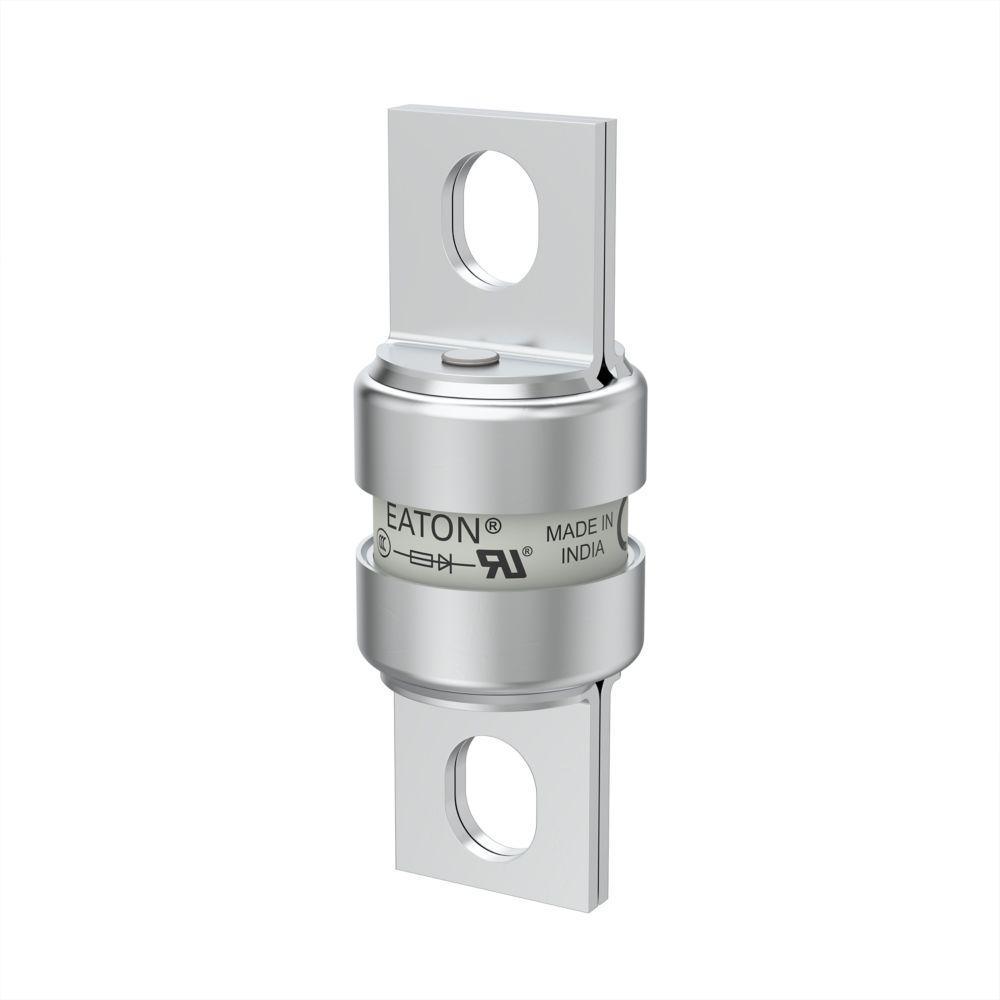

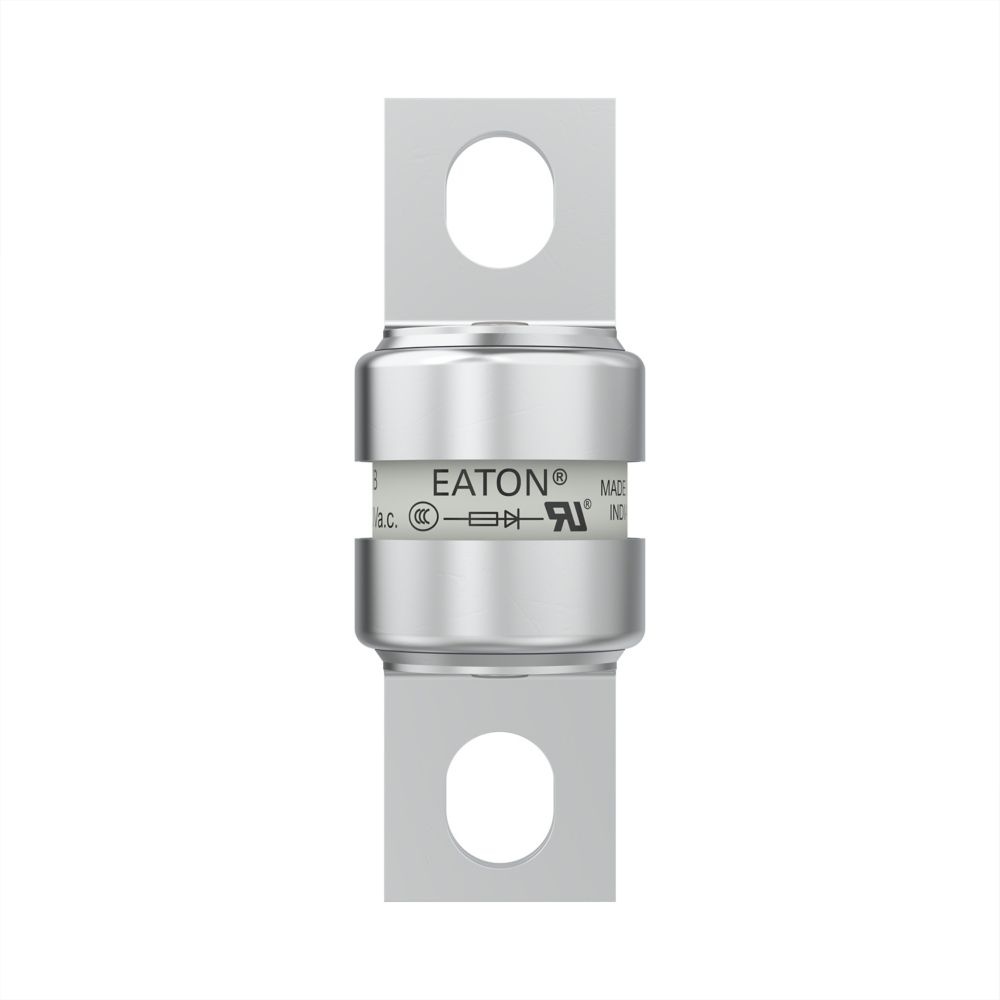

Image provided may only be a representation of final product and may include optional equipment
