Part Number # FWA-70B
SKU # 2414840
FWA-70B

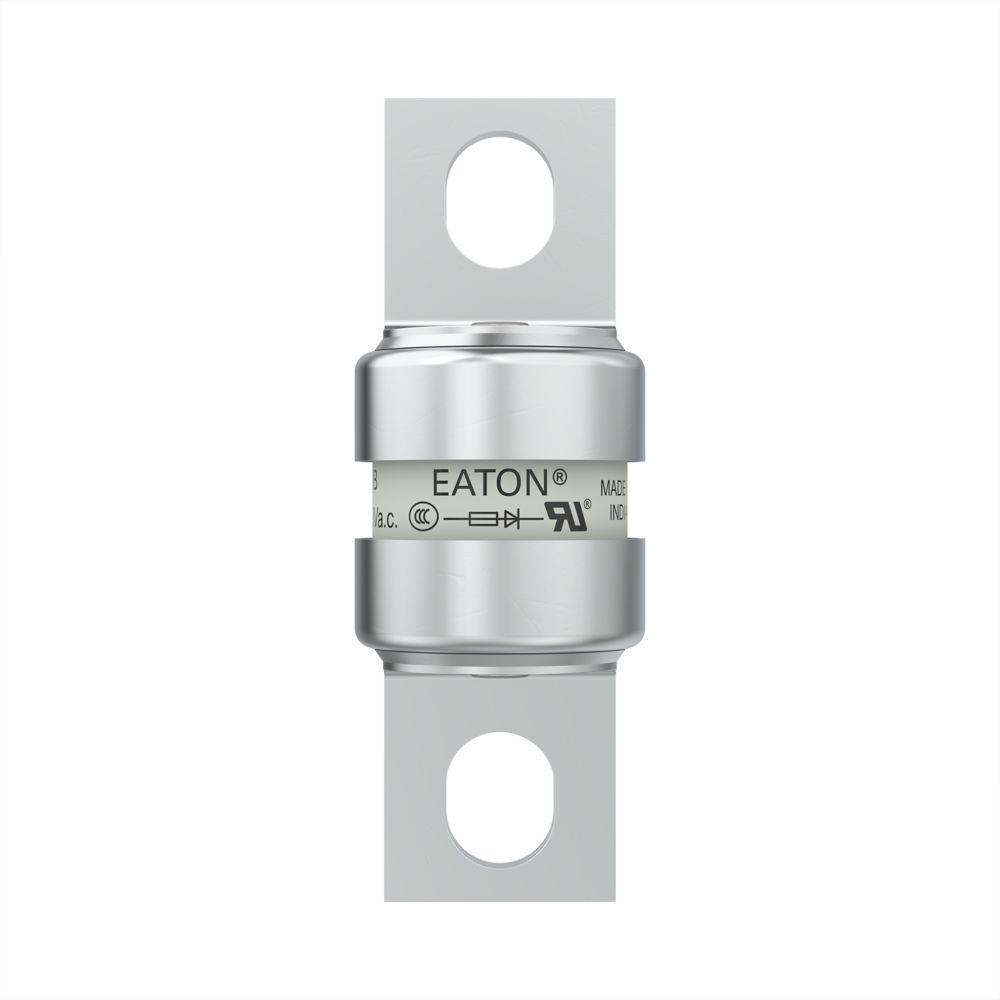

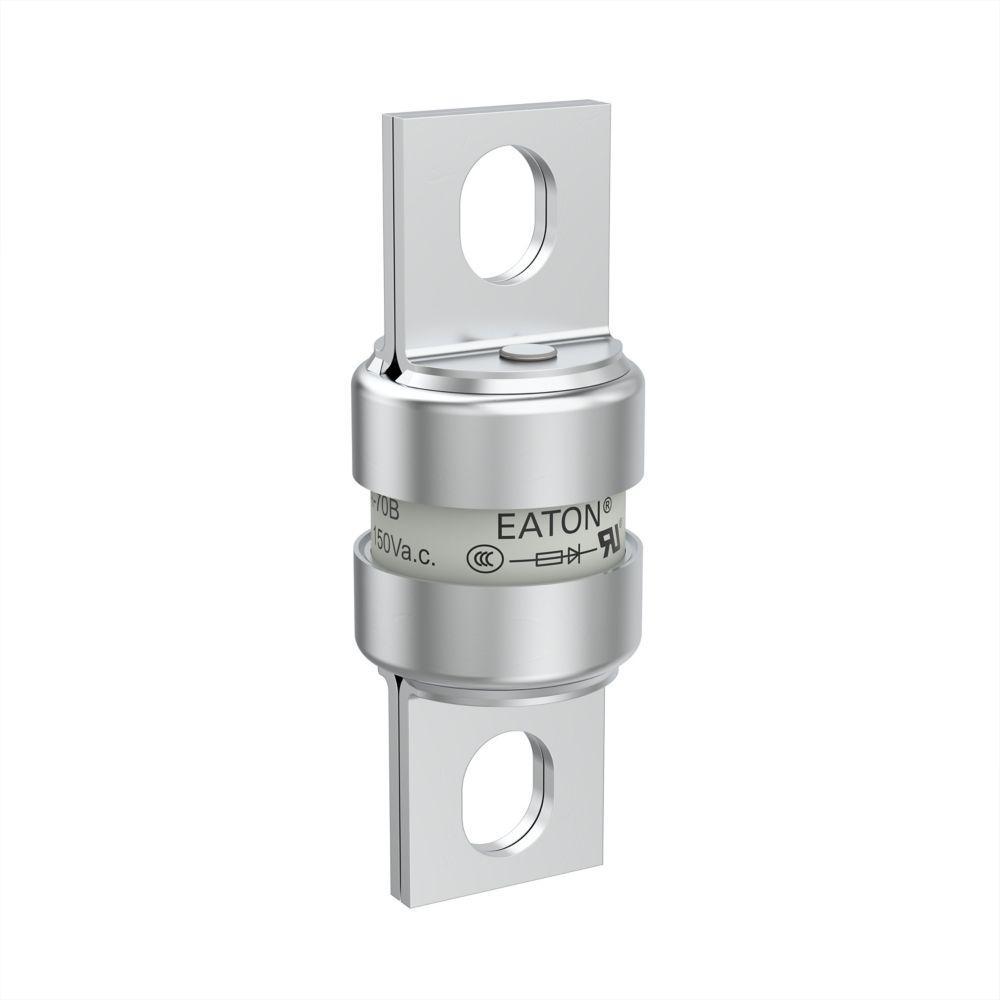

Bussmann FWA-70B Edison Semi-Conductor Fuse
Part Number # FWA-70B
SKU # 2414840
Bussmann FWA-70B Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | FWA-70B |
| SKU #: | 2414840 |
| Amperage Rating: | 70 A |
| Body Type: | Cylindrical |
| Frequency Rating: | 45 to 1000 Hz |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 100 kA |
| Rejection/Non-Rejection: | Non-Rejection |
| Series: | FWA |
| Terminal Type: | Blade, Blade End |
| Type: | Fast Acting Semi-Conductor, North American Style |
| Country of origin: | IN |
| Material: | Ceramic |
| Mounting type: | Stud |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121625 |
| UPC: | 00051712577885 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann FWA-70B Edison Semi-Conductor Fuse
Brand: Bussmann
Part Number: FWA-70B
Bussmann High Speed Fuse, Fast Acting Semi-Conductor, Series: FWA, Non-Indicating, Non-Rejection, 70 A, 150 V, 100 kA Interrupt, 45 to 1000 Hz Frequency, Blade End Terminal, Stud Mounting, Cylindrical Body, Single Element, Ceramic, 1 in Dia x 2.656 in L Body
Additional Description: BUSS-FWA-70B (N) SEMI-COND FUSE 70A150V AC NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Bussmann series FWA high speed fuse, 500 Vac (0.25-6.3A), 500 Vdc (2-5A), 70A, 200 kAIC Vac (70-1000A), 20 kAIC at 150 Vdc (70-800A), 100 kAIC at 80 Vdc (70-1000A), None, High speed fuse, Blade end X blade end, Stud
FWA-70B Application
DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starters ApplicationsFWA-70B Item Features
- Low arc voltage and low energy let through, excellent DC performance, superior cycling capability, low wattage loss
FWA-70B Standards
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|CE Certified|UL ListedSKU #2414840Part Number #FWA-70BUNSPSC39121625UPC00051712577885
Image provided may only be a representation of final product and may include optional equipment
