Part Number # FWC-30A10F
SKU # 2207257
Image provided may only be a representation of
final product and may include optional equipment
FWC-30A10F

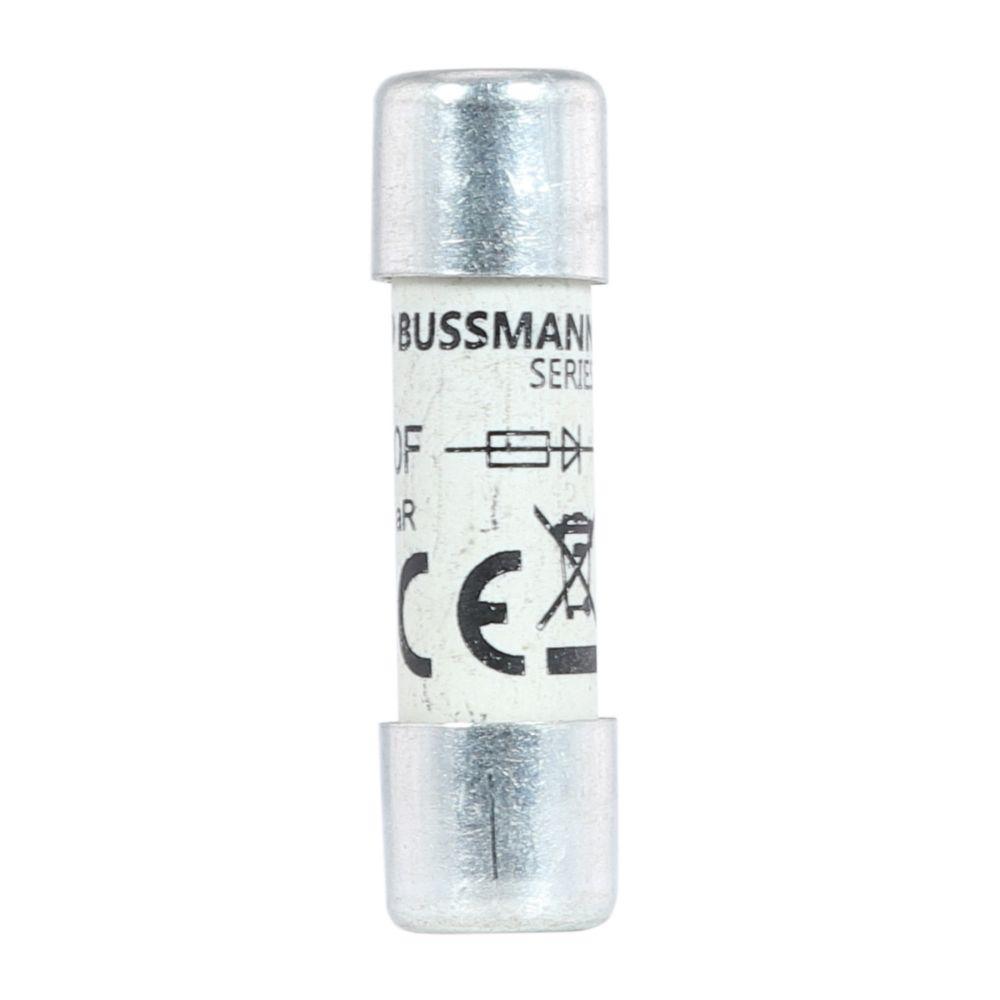

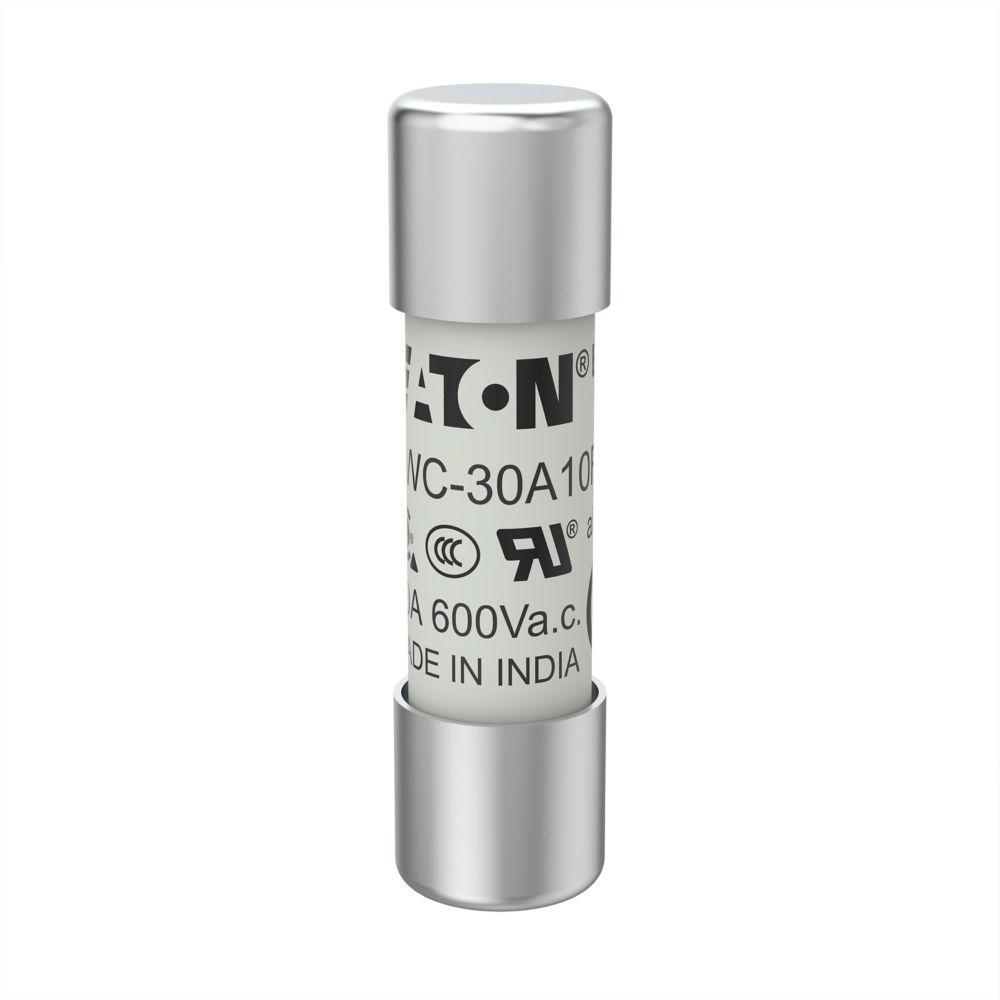

Bussmann FWC-30A10F High Speed Fuse
Part Number # FWC-30A10F
SKU # 2207257
Bussmann FWC-30A10F Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | FWC-30A10F |
| SKU #: | 2207257 |
| Amperage Rating: | 30, 30 A |
| Body Type: | Cartridge |
| Class: | AR |
| Frequency Rating: | 45 to 62, 45 to 62 Hz |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 50 kA, 50/200 |
| Rejection/Non-Rejection: | Non-Rejection |
| Series: | FWC |
| Terminal Type: | Ferrule, Ferrule End |
| Material: | Fiberglass |
| Mounting type: | Holder |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121625 |
| UPC: | 00051712370851 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann FWC-30A10F High Speed Fuse
Brand: Bussmann
Part Number: FWC-30A10F
Bussmann High Speed Fuse, Series: FWC, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 30 A, 600 VAC, 50 kA Interrupt, Class: aR, 45 to 62 Hz, Ferrule End Terminal, Holder Mount, Cartridge Body, Single Element, Fiberglass, 0.406 in Dia x 1.5 in L Body Size
Additional Description: BUSS-FWC-30A10F (N) 30Amp 600Vac 10 X 38mm FERRULE FUSE FUSE NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Bussmann series FWC high speed cylindrical fuse, 500 Vac/dc (35-800A only), 30A, 200 kAIC Vac, 50 kAIC at 700 Vdc, Non Indicating, High speed fuse, Ferrule end X ferrule end
FWC-30A10F Application
Critical Power, Electrical Assemblies, Panels and EOEMs, Industrial Facilities and Factory Facilities, Safety and Security Systems, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starter ApplicationsFWC-30A10F Item Features
- Low arc voltage and low energy let-through
- Excellent DC performance
- Used with finger safe holders/blocks
- Low wattage loss in a compact size
- 200 kA rms symmetrical and 50 kA at 700 VDC interrupt rating
- https://www.youtube.com/watch?v=YMvqUyoETXk
FWC-30A10F Standards
CSA Certified ,UL Recognized ,UL Recognized ,CSA Certified,CE Marked,RoHS Compliant,CE-Kennzeichnung,RoHS-konformSKU #2207257Part Number #FWC-30A10FUNSPSC39121625UPC00051712370851
