Part Number # FWH-005A6F
SKU # 2288718
FWH-005A6F

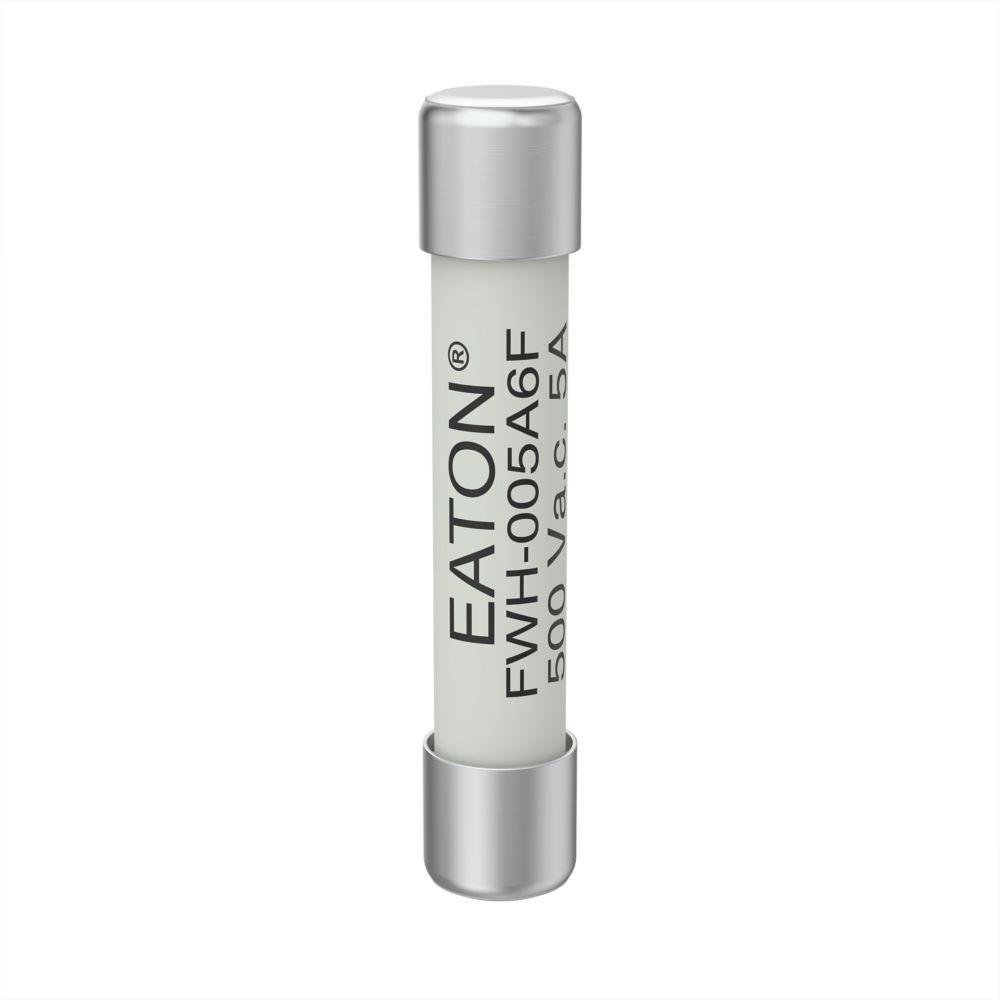

Bussmann FWH-005A6F High Speed Fuse
Part Number # FWH-005A6F
SKU # 2288718
Bussmann FWH-005A6F Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | FWH-005A6F |
| SKU #: | 2288718 |
| Amperage Rating: | 5, 5 A |
| Body Type: | Cylindrical |
| Frequency Rating: | 45 to 1000, 45 to 1000 Hz |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 20 kA, 50 |
| Rejection/Non-Rejection: | Non-Rejection |
| Response Time: | 30 min at 150%, 30 min at 200%, 10 s at 300%, 30 min, 10 s |
| Series: | FWH |
| Terminal Type: | Ferrule, Ferrule End |
| Type: | Fast Acting, Fast Acting Semi-Conductor |
| Material: | Ceramic |
| Mounting type: | Holder |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121625 |
| UPC: | 00051712796675 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann FWH-005A6F High Speed Fuse
Brand: Bussmann
Part Number: FWH-005A6F
Bussmann High Speed Fuse, Fast Acting Semi-Conductor, Series: FWH, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 5 A, 500 VAC, 20 kA Interrupt, 45 to 1000 Hz, 30 min at 150%, 30 min at 200%, 10 s at 300% Response, Ferrule End Terminal, Holder Mount, Cylindrical Body, Single Element, Ceramic, 1/4 in Dia x 1-1/4 in L Body Size
Additional Description: BUSS-FWH-005A6F (N) SEMI-COND FUSE 5.0A 500V AC NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Bussmann series FWH high speed fuse, 500 Vac/dc (35-800A only), 5A, 50 kAIC at 0.25-20A, 20 kAIC at 25-30A, Non Indicating, High speed fuse, Ferrule end X ferrule end
FWH-005A6F Application
Critical Power, Electrical Assemblies, Panels and EOEMs, Industrial Facilities and Factory Facilities, Safety and Security Systems, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starter ApplicationsFWH-005A6F Item Features
- Excellent cycling capability and DC performance
- Low arc voltage and low energy let-through
- Low wattage loss in a compact size
- Used with finger safe holders/blocks
- Superior cycling capability
- https://www.youtube.com/watch?v=YMvqUyoETXk
FWH-005A6F Standards
UL Recognized ,CSA Certified ,CSA Certified ,UL Recognized ,UL Recognized ,CSA Certified ,UL Recognized ,CSA Certified ,CSA gecertificeerd ,UL Recognized,RoHS Compliant,CE Marked,RoHS-konform,CE-Kennzeichnung,Uzyskano oznaczenie CE,Zgodny z wymogami RoHS,Con marchio CE,Conforme a RoHS,RoHS-compliant,CE-markeringSKU #2288718Part Number #FWH-005A6FUNSPSC39121625UPC00051712796675
Image provided may only be a representation of final product and may include optional equipment
