Part Number # FWH-030A6F
SKU # 2135873

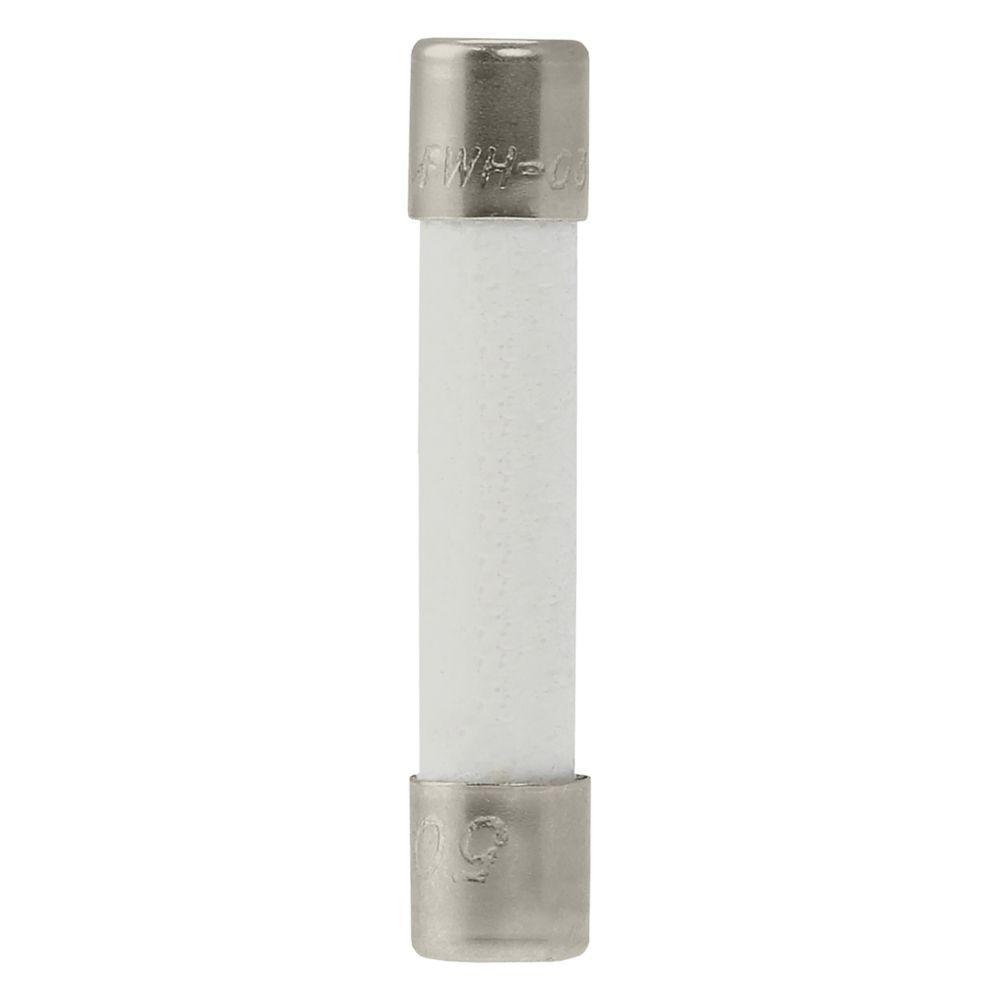

Image provided may only be a representation of
final product and may include optional equipment
FWH-030A6F
Bussmann FWH-030A6F High Speed Fuse
Part Number # FWH-030A6F
SKU # 2135873
Bussmann FWH-030A6F Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | FWH-030A6F |
| SKU #: | 2135873 |
| Amperage Rating: | 30, 30 A |
| Body Type: | Cartridge, Cylindrical |
| Class: | AR |
| Frequency Rating: | 45 to 1000, 45 to 1000 Hz |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 20, 50 kAIC, 50/20 |
| Response Time: | 30, 30 min at 150%/30 min at 200%/10 s at 300%, 30 min, 10 s |
| Series: | FWH |
| Terminal Type: | Ferrule, Ferrule End |
| Type: | Fast Acting, Fast Acting Semi-Conductor, Fast Blow Semiconductor |
| Material: | Ceramic |
| Mounting type: | Holder |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121625 |
| UPC: | 00051712796590 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann FWH-030A6F High Speed Fuse
Brand: Bussmann
Part Number: FWH-030A6F
Bussmann High Speed Fuse, Fast Acting Semi-Conductor, Series: FWH, Indicating/Non-Indicating: Non-Indicating, 30 A, 500 VAC/VDC, 50 kAIC Interrupt, 45 to 1000 Hz, 30 min at 150%/30 min at 200%/10 s at 300% Response, Ferrule End Terminal, Holder Mount, Cylindrical Body Type, Ceramic, 1/4 in Dia x 1-1/4 in L Body Size
Additional Description: BUSS-FWH-030A6F (N) "BUSS, SEMICONDUCTOR, 500V" NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Bussmann series FWH high speed fuse, DC common bus, DC drives, power converters/rectifiers, reduced voltage starters, 500 Vac, 500 Vdc, 30A RMS (200% minimum opening current at rated voltage), 50 kAIC at 0.25-20A, 20 kAIC at 25-30A
FWH-030A6F Application
Industrial Facilities and Factory Facilities, Safety and Security Systems, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starters ApplicationsFWH-030A6F Item Features
- Excellent cycling capability and DC performance
- Low arc voltage and low energy let-through
- Superior cycling capability
- Low wattage loss in a compact size
- Low energy let through
- Used with finger safe holders/blocks
- Low arc voltage, excellent DC performance, superior cycling capability, used with finger safe holders/blocks
- https://www.youtube.com/watch?v=YMvqUyoETXk
FWH-030A6F Standards
CSA Certified ,UL Recognized,CE Marked,RoHS CompliantSKU #2135873Part Number #FWH-030A6FUNSPSC39121625UPC00051712796590
