Bussmann FWH-10A14F High Speed Fuse
Part Number # FWH-10A14F
SKU # 2377027
FWH-10A14F
Bussmann FWH-10A14F High Speed Fuse
Part Number # FWH-10A14F
SKU # 2377027
Bussmann FWH-10A14F Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | FWH-10A14F |
| SKU #: | 2377027 |
| Body Type: | Cylindrical |
| Frequency Rating: | 45 to 1000 Hz |
| Interrupt Rating: | 200 kA |
| Rejection/Non-Rejection: | Non-Rejection |
| Series: | FWH |
| Terminal Type: | Ferrule End |
| Type: | Fast Acting Semi-Conductor |
| Material: | Ceramic |
| Mounting type: | Holder |
| UNSPSC: | 39121625 |
| UPC: | 00051712370806 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann FWH-10A14F High Speed Fuse
Brand: Bussmann
Part Number: FWH-10A14F
Bussmann High Speed Fuse, Fast Acting Semi-Conductor, Series: FWH, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 10 A, 500 V AC, 200 kA Interrupt, 45 to 1000 Hz, Ferrule End Terminal, Holder Mount, Cylindrical Body, Single Element, Ceramic, 0.563 in Dia x 2 in L Body Size
Additional Description: BUSS-FWH-10A14F SEMI-COND FUSE 10A 500V 14 X 51MM
Catalog Description: Eaton Bussmann series FWH high speed fuse, 1000 Vac, 800 Vdc, 10A, 200 kAIC Vac, 50 kAIC at 500 Vdc, Non Indicating, High speed fuse, Ferrule end X ferrule end
FWH-10A14F Application
Electrical Assemblies, Panels, EOEMs, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starters Applications, Safety and Security Systems, Industrial Facilities and Factories - Facility and Critical PowerFWH-10A14F Item Features
- Excellent cycling capability and DC performance
- Low arc voltage and low energy let-through
- Low wattage loss in a compact size
- Used with finger safe holders/blocks
- Superior cycling capability
- https://www.youtube.com/watch?v=YMvqUyoETXk
FWH-10A14F Standards
CE Marking|CSA Certified|UL Listed File No. E19180|UL JDYX2SKU #2377027Part Number #FWH-10A14FUNSPSC39121625UPC00051712370806

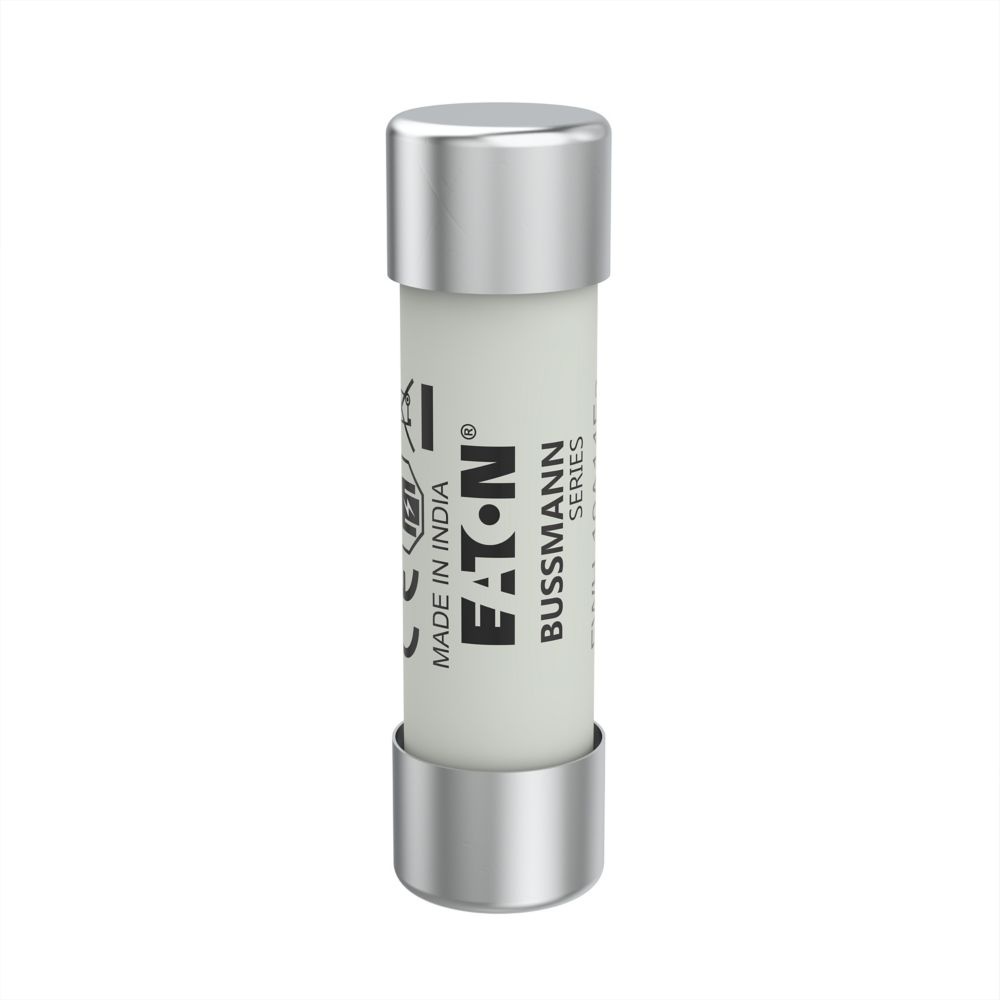

Image provided may only be a representation of final product and may include optional equipment
