Part Number # FWH-20A14F
SKU # 2251291
Image provided may only be a representation of
final product and may include optional equipment
FWH-20A14F

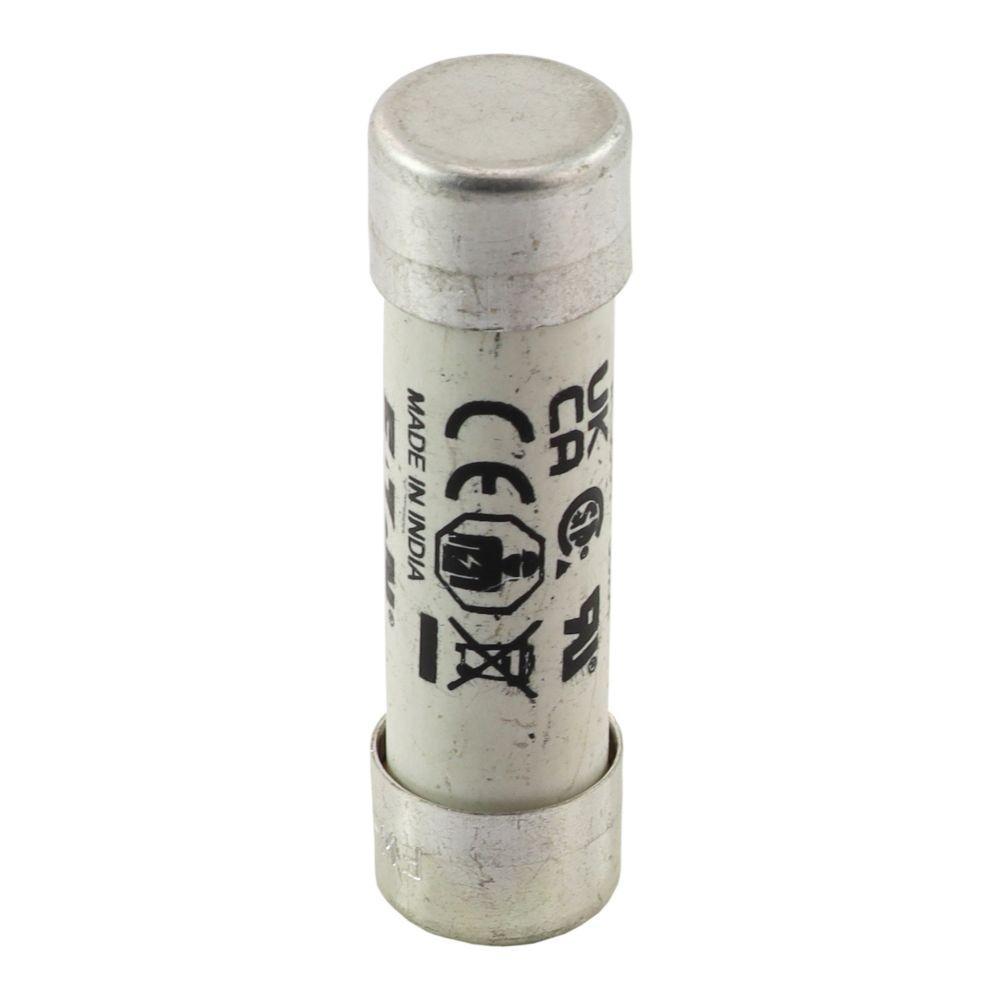

Bussmann FWH-20A14F High Speed Fuse
Part Number # FWH-20A14F
SKU # 2251291
Bussmann FWH-20A14F Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | FWH-20A14F |
| SKU #: | 2251291 |
| Amperage Rating: | 20, 20 A |
| Body Type: | Cartridge, Cylindrical |
| Class: | AR |
| Frequency Rating: | 42 to 62, 42 to 62 Hz |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 200, 200 kA, 50/200 |
| Rejection/Non-Rejection: | Non-Rejection |
| Series: | FWH |
| Terminal Type: | Ferrule, Ferrule End, Ferrule End x Ferrule End |
| Type: | Fast Acting Semiconductor |
| Country of origin: | IN |
| Material: | Fiberglass |
| Mounting type: | Holder |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121625 |
| UPC: | 00051712370820 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann FWH-20A14F High Speed Fuse
Brand: Bussmann
Part Number: FWH-20A14F
Bussmann High Speed Fuse, Series: FWH, Non-Indicating, 20 A, 500 V, 200 kA Interrupt, Class: AR, 42 to 62 Hz Frequency, Ferrule End Terminal, Holder Mounting, Cylindrical Body, 0.563 in Dia x 2 in L Body
Additional Description: BUSS-FWH-20A14F 20AMP 500V AC FERRULE 6.4 X 31.8MM
Catalog Description: Eaton Bussmann series FWH high speed fuse, 1000 Vac, 800 Vdc, 20A, 200 kAIC Vac, 50 kAIC at 500 Vdc, Non Indicating, High speed fuse, Ferrule end X ferrule end
FWH-20A14F Application
Critical Power, Electrical Assemblies, Panels and EOEMs, Industrial Facilities and Factory Facilities, Safety and Security Systems, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starter ApplicationsFWH-20A14F Item Features
- Excellent cycling capability and DC performance
- Low arc voltage and low energy let-through
- Low wattage loss in a compact size
- Used with finger safe holders/blocks
- Superior cycling capability
- 200 kA rms symmetrical all ratings, 50 kA at 500 VDC 5 to 30 A interrupt rating
- https://www.youtube.com/watch?v=YMvqUyoETXk
FWH-20A14F Standards
CSA Certified ,UL Recognized ,CSA Certified ,UL Recognized ,UL Recognized ,CSA Certified ,CSA gecertificeerd ,UL Recognized,CE Marked,RoHS Compliant,CE-Kennzeichnung,RoHS-konform,Uzyskano oznaczenie CE,Zgodny z wymogami RoHS,RoHS-compliant,CE-markeringSKU #2251291Part Number #FWH-20A14FUNSPSC39121625UPC00051712370820
