Part Number # FWH-250A
SKU # 7765
FWH-250A

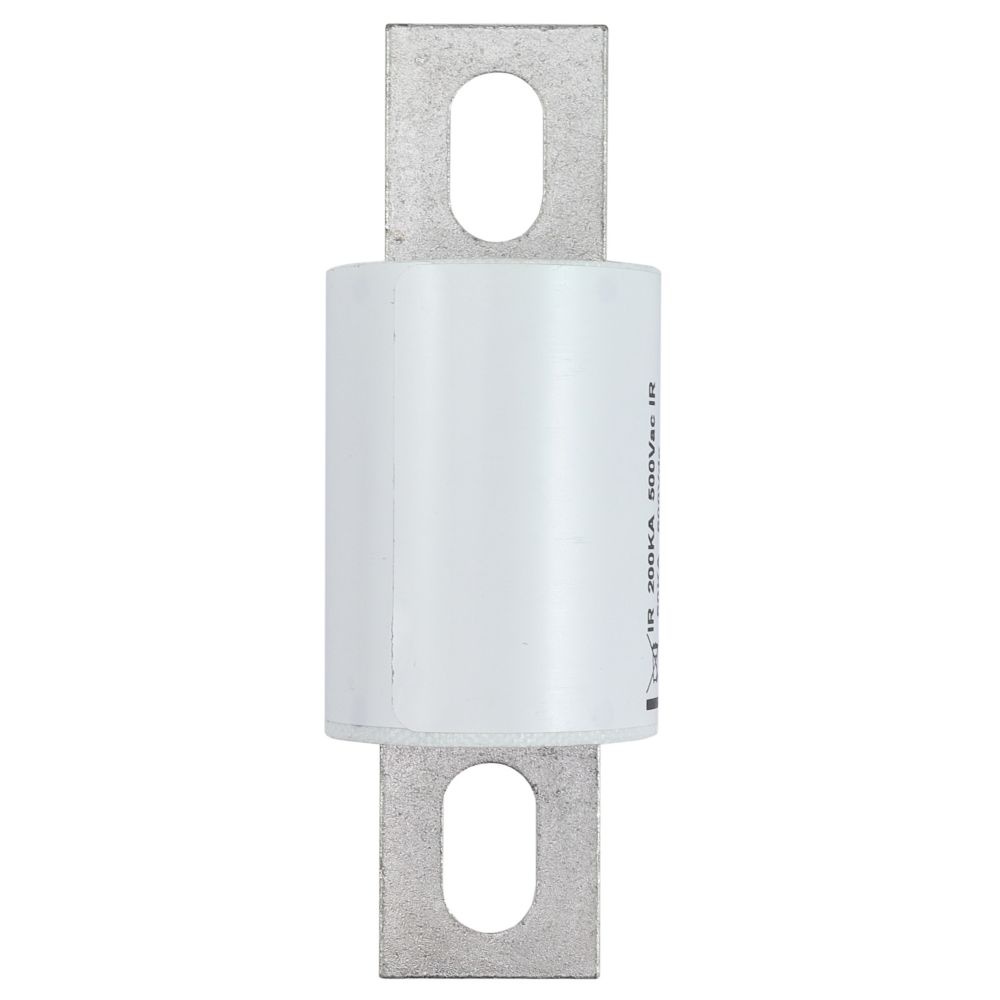

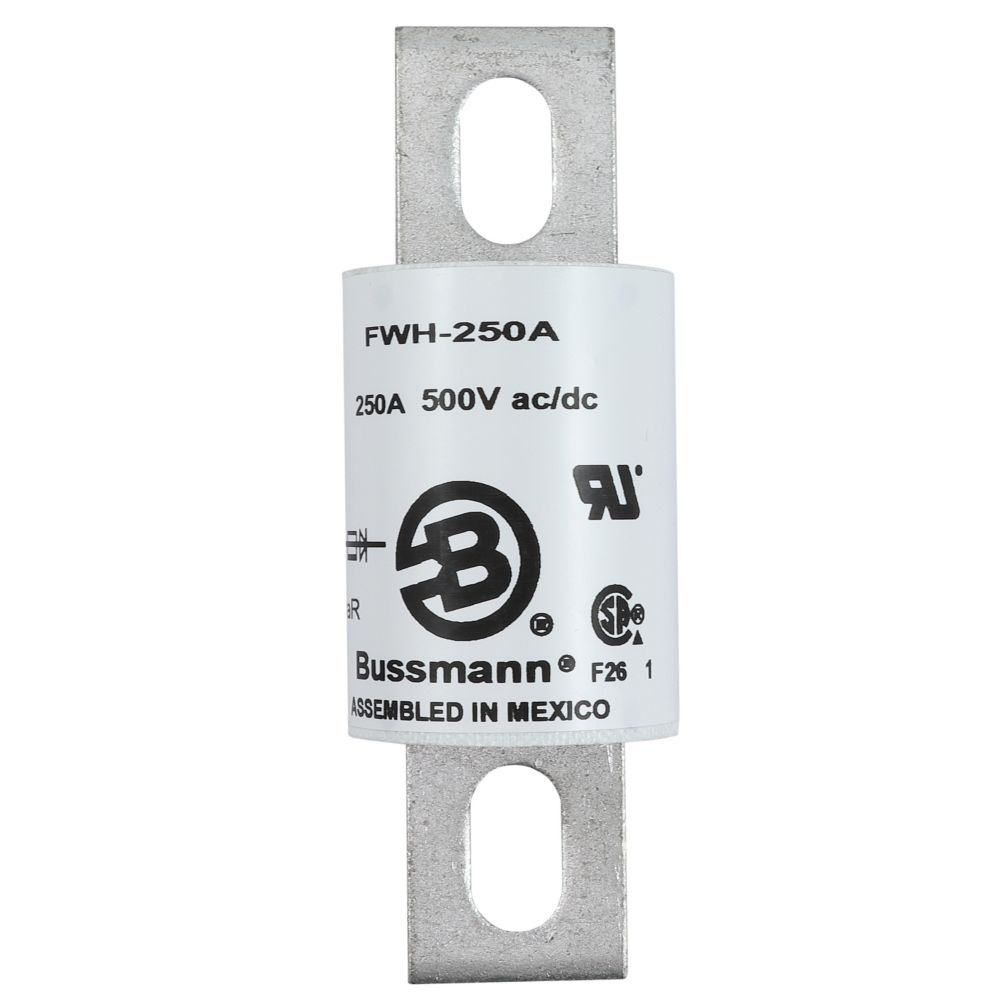

Bussmann FWH-250A High Speed Fuse
Part Number # FWH-250A
SKU # 7765
Bussmann FWH-250A Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | FWH-250A |
| SKU #: | 7765 |
| Amperage Rating: | 250, 250 A |
| Body Type: | Cartridge, Cylindrical |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 50/200, 50/200 kA |
| Rejection/Non-Rejection: | Non-Rejection |
| Series: | FWH |
| Terminal Type: | Blade |
| Type: | Fast Acting, North American Style |
| Material: | Ceramic, Fiberglass |
| Mounting type: | Bolt-In/Stud, Stud |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121625 |
| UPC: | 00051712150149 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann FWH-250A High Speed Fuse
Brand: Bussmann
Part Number: FWH-250A
Bussmann High Speed Fuse, North American Style, Series: FWH, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 250 A, 1000 VAC/800 VDC, 50/200 kA Interrupt, Blade Terminal, Stud Mount, Cartridge Body Type, Single Element, Fiberglass, 1.5 in Dia x 4.34 in L Body Size
Additional Description: BUSS-FWH-250A BUSS HIGH SPEED FUSE
Catalog Description: Eaton Bussmann series FWH high speed fuse, 1000 Vac, 800 Vdc, 250A RMS, 200 kAIC at 1000 Vac, 50 kAIC at 500 Vdc, Non Indicating, High speed fuse, Blade end X blade end, Stud
FWH-250A Application
For DC common bus, DC drives, power converters/rectifiers and reduced voltage starters, safety and security systemsFWH-250A Item Features
- Low arc voltage and low energy let through
- Excellent DC performance
- Low watts loss
- Superior cycling capability
- North American style bolted tags high speed fuses
- https://www.youtube.com/watch?v=YMvqUyoETXk
FWH-250A Standards
CE Certified|CSA 1422-30/File No. 53787|RoHS Compliant|UL Recognized to Guide No. JFHR2/File No. E56412SKU #7765Part Number #FWH-250AUNSPSC39121625UPC00051712150149
Image provided may only be a representation of final product and may include optional equipment
