Bussmann FWH-.250A6F Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | FWH-.250A6F |
| SKU #: | 2451794 |
| Amperage Rating: | 0.25 A |
| Body Type: | Cylindrical |
| Frequency Rating: | 45 to 1000 Hz |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 20 kA |
| Response Time: | 30 min at 150%, 30 min at 200%, 10 s at 300% |
| Series: | FWH |
| Terminal Type: | Ferrule End |
| Type: | Fast Acting Semi-Conductor |
| Material: | Ceramic |
| Mounting type: | Holder |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121625 |
| UPC: | 00051712796620 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann FWH-.250A6F
Brand: Bussmann
Part Number: FWH-.250A6F
Bussmann High Speed Fuse, Fast Acting Semi-Conductor, Series: FWH, Non-Indicating, 0.25 A, 500 V, 20 kA Interrupt, 45 to 1000 Hz Frequency, 30 min at 150%, 30 min at 200%, 10 s at 300% Response, Ferrule End Terminal, Holder Mounting, Cylindrical Body, Ceramic, 1/4 in Dia x 1-1/4 in L Body
Additional Description: BUSS-FWH-.250A6F (N) SEMI COND FUSE 0.25A 500V AC 6 X 32MM NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Bussmann series FWH high speed fuse, 500 Vac/dc (35-800A only), 0.25A, 50 kAIC at 0.25-20A, 20 kAIC at 25-30A, Non Indicating, High speed fuse, Ferrule end X ferrule end
FWH-.250A6F Application
Critical Power, Electrical Assemblies, Panels and EOEMs, Industrial Facilities and Factory Facilities, Safety and Security Systems, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starter ApplicationsFWH-.250A6F Item Features
- Low arc voltage
- Excellent DC performance
- Superior cycling capability
- Used with finger safe holders/blocks
- Low energy let through
- https://www.youtube.com/watch?v=YMvqUyoETXk
FWH-.250A6F Standards
CSA Certified ,UL Recognized ,CSA Certified ,UL Recognized ,CSA Certified ,UL Recognized ,CSA Certified ,UL Recognized ,CSA gecertificeerd ,UL Recognized,RoHS Compliant,CE Marked,CE-Kennzeichnung,RoHS-konform,Zgodny z wymogami RoHS,Uzyskano oznaczenie CE,Con marchio CE,Conforme a RoHS,CE-markering,RoHS-compliantSKU #2451794Part Number #FWH-.250A6FUNSPSC39121625UPC00051712796620

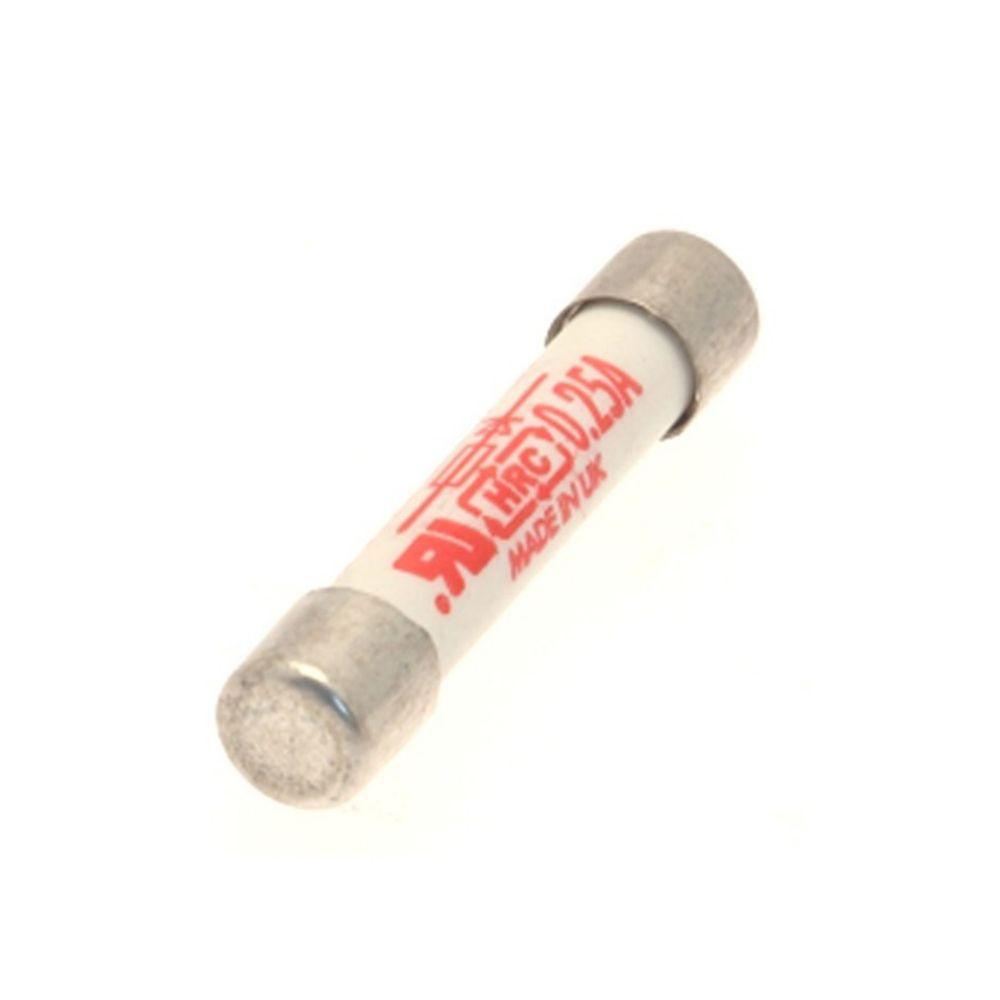

Image provided may only be a representation of final product and may include optional equipment
