Part Number # FWH-6.30A6F
SKU # 1446210
FWH-6.30A6F
Bussmann FWH-6.30A6F High Speed Fuse
Part Number # FWH-6.30A6F
SKU # 1446210
Bussmann FWH-6.30A6F Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | FWH-6.30A6F |
| SKU #: | 1446210 |
| Amperage Rating: | 6.3, 6.3 A |
| Body Type: | Cylindrical |
| Frequency Rating: | 45 to 1000, 45 to 1000 Hz |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 20, 20 kA, 50/200 |
| Response Time: | 30 min at 150%, 30 min at 200%, 10 s at 300%, 30 min, 10 s |
| Series: | FWH |
| Terminal Type: | Ferrule, Ferrule End |
| Type: | Fast Acting, Fast Acting Semi-Conductor |
| Country of origin: | HU |
| Material: | Ceramic |
| Mounting type: | Holder |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121625 |
| UPC: | 00051712796682 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann FWH-6.30A6F High Speed Fuse
Brand: Bussmann
Part Number: FWH-6.30A6F
Bussmann High Speed Fuse, Fast Acting Semi-Conductor, Series: FWH, Indicating/Non-Indicating: Non-Indicating, 6.3 A, 500 VAC, 20 kA Interrupt, 45 to 1000 Hz, 30 min at 150%, 30 min at 200%, 10 s at 300% Response, Ferrule End Terminal, Holder Mount, Cylindrical Body, Ceramic, 1/4 in Dia x 1-1/4 in L Body Size
Additional Description: BUSS-FWH-6.30A6F (N) 6.3AMP 500V SEMI-COND FUSE NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Bussmann series FWH high speed fuse, 1000 Vdc, 6.3A, 50 kAIC at 0.25-20A, 20 kAIC at 25-30A, Non Indicating, High speed fuse, Ferrule end X ferrule end
FWH-6.30A6F Application
Critical Power, Electrical Assemblies, Panels and EOEMs, Industrial Facilities and Factory Facilities, Safety and Security Systems, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starter ApplicationsFWH-6.30A6F Item Features
- Low arc voltage
- Excellent DC performance
- Superior cycling capability
- Used with finger safe holders/blocks
- Low energy let through
- https://www.youtube.com/watch?v=YMvqUyoETXk
FWH-6.30A6F Standards
UL Recognized ,CSA Certified ,CSA Certified ,UL Recognized ,CSA gecertificeerd ,UL Recognized,CE Marked,CE-Kennzeichnung,CE-markeringSKU #1446210Part Number #FWH-6.30A6FUNSPSC39121625UPC00051712796682

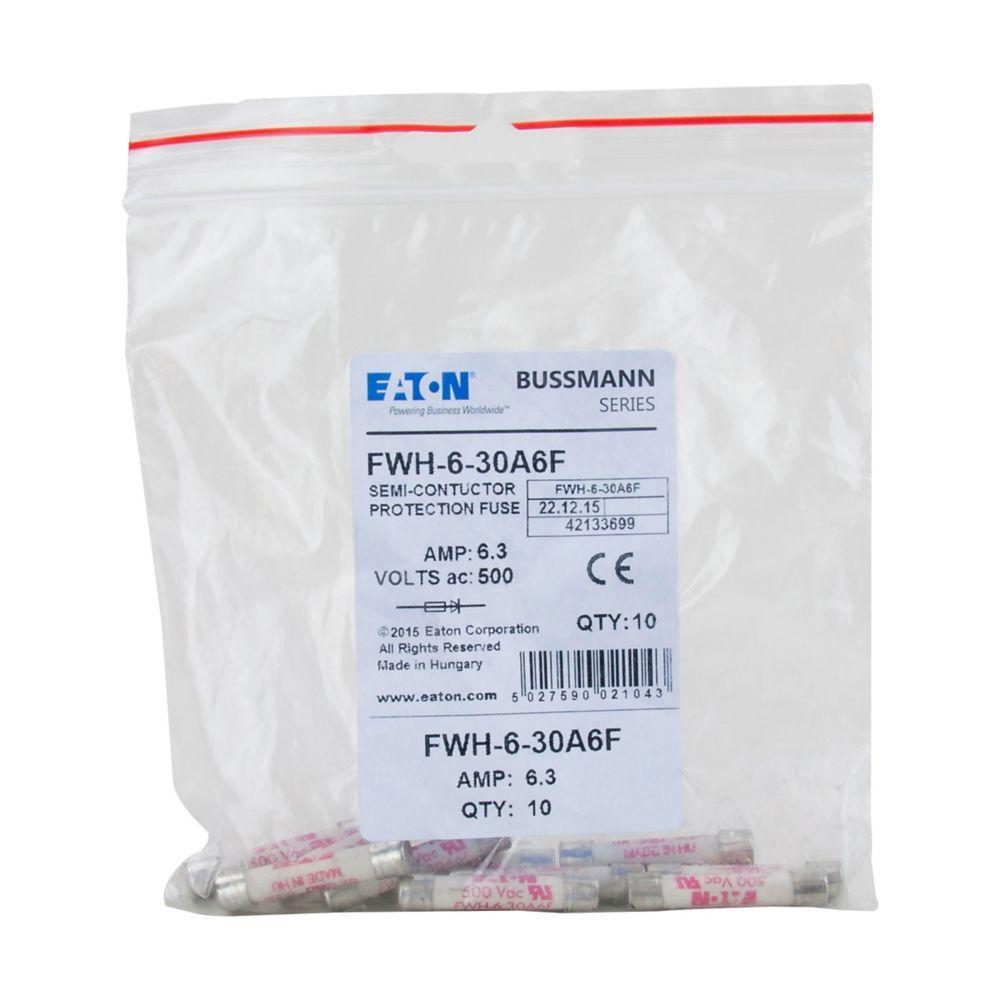

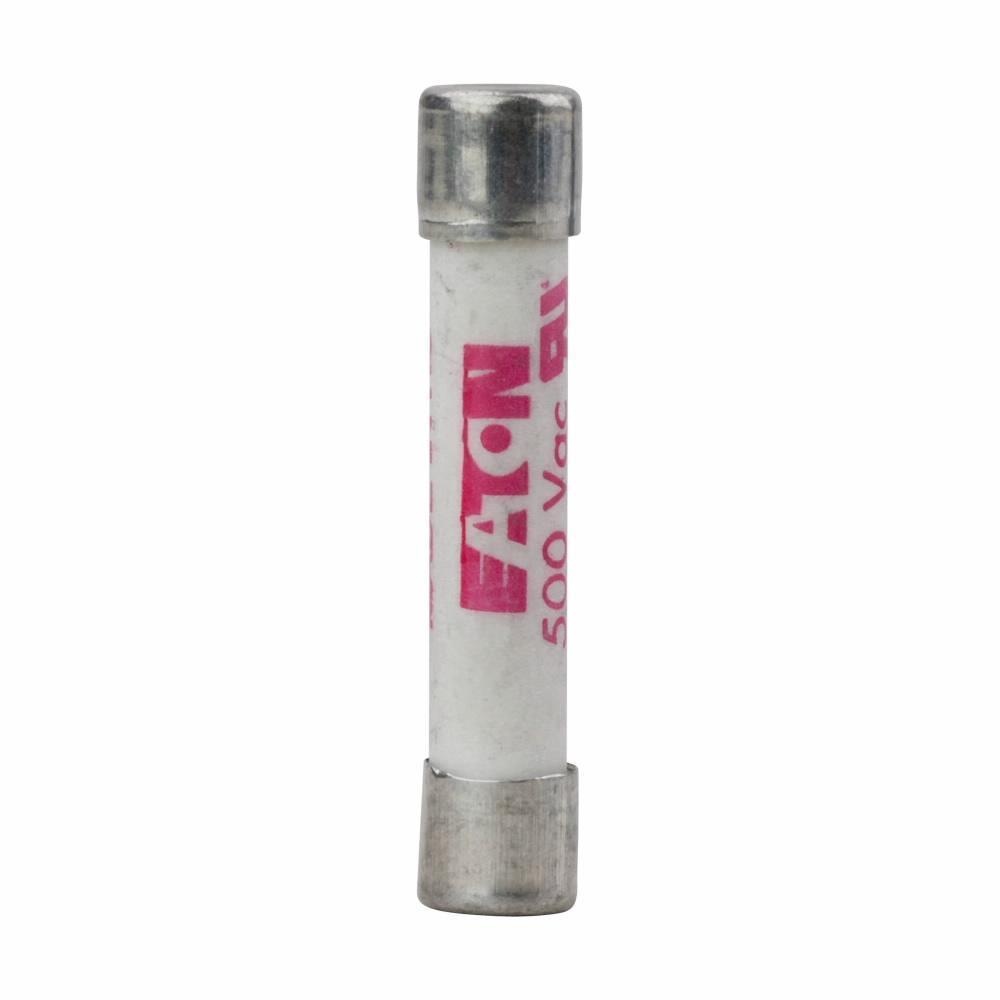

Image provided may only be a representation of final product and may include optional equipment
