Part Number # FWH-800A
SKU # 2278872
FWH-800A
Bussmann FWH-800A High Speed Fuse
Part Number # FWH-800A
SKU # 2278872
Bussmann FWH-800A Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | FWH-800A |
| SKU #: | 2278872 |
| Interrupt Rating: | 50 kAIC, 50/200 |
| Series: | FWH |
| Terminal Type: | Blade End |
| Type: | North American Style |
| Mounting type: | Bolt-In/Stud |
| UNSPSC: | 39121625 |
| UPC: | 00051712150248 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann FWH-800A High Speed Fuse
Brand: Bussmann
Part Number: FWH-800A
Bussmann High Speed Fuse, North American Style, Series: FWH, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 800 A, 700 VAC/VDC, 50 kAIC Interrupt, Blade End Terminal, Stud Mount, Cartridge Body Type, Single Element, Fiberglass, 2.5 in Dia x 6.34 in L Body Size
Additional Description: BUSS-FWH-800A (N) BUSS HIGH SPEED FUSE NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Bussmann series FWH high speed fuse, 700 Vac (UL), 690 Vac (IEC), 500 Vdc (2-100A), 500 Vac, 800A RMS, 200 kAIC at 1000 Vac, 50 kAIC at 500 Vdc, Non Indicating, High speed fuse, Blade end X blade end, Stud
FWH-800A Application
Industrial Facilities and Factory Facilities, Safety and Security Systems, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starters ApplicationsFWH-800A Item Features
- Low arc voltage and low energy let-through
- Excellent DC performance
- Low wattage loss
- Superior cycling capability
- North American style bolted tags high speed fuses
- Low arc voltage, excellent DC performance, superior cycling capability
- https://www.youtube.com/watch?v=YMvqUyoETXk
FWH-800A Standards
CE Certified|CSA Class 1422-30 File No. 53787|RoHS Compliant|UL Recognized to Guide No. JFHR2 File No. E56412SKU #2278872Part Number #FWH-800AUNSPSC39121625UPC00051712150248

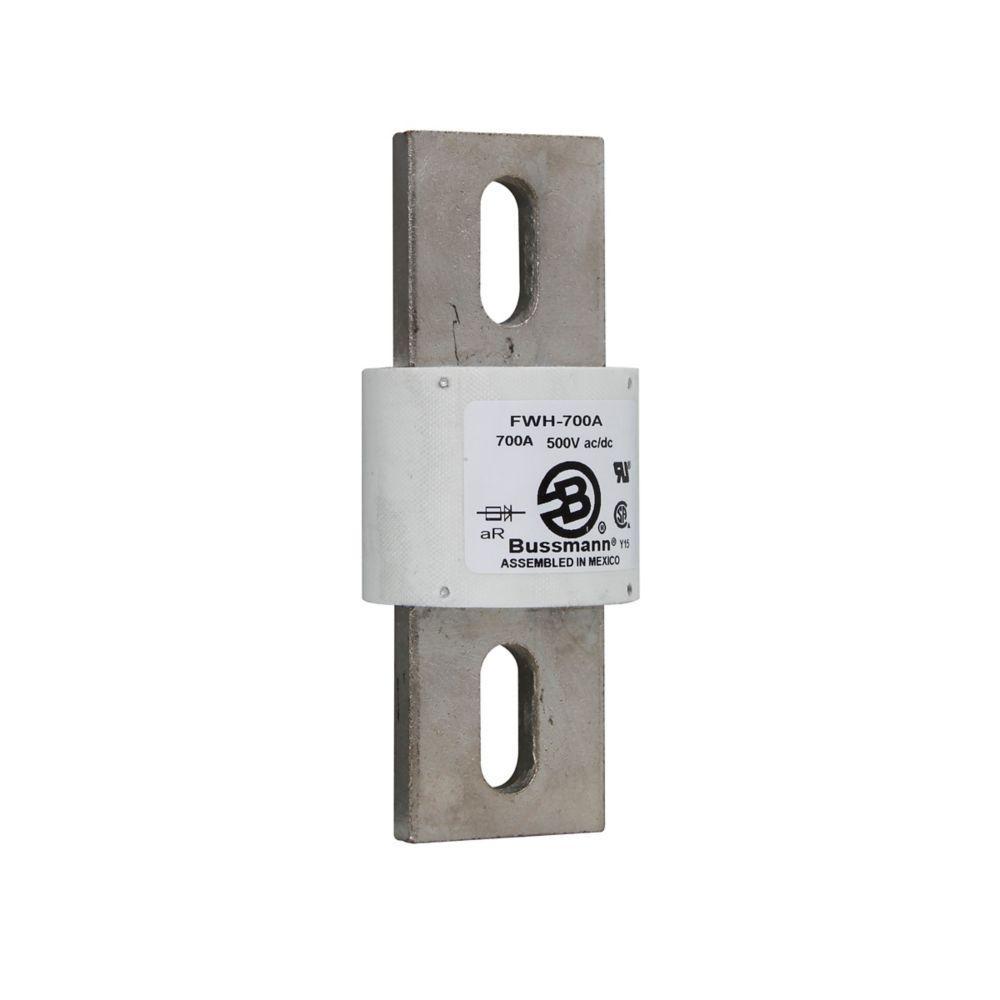

Image provided may only be a representation of final product and may include optional equipment
