FWJ-175A

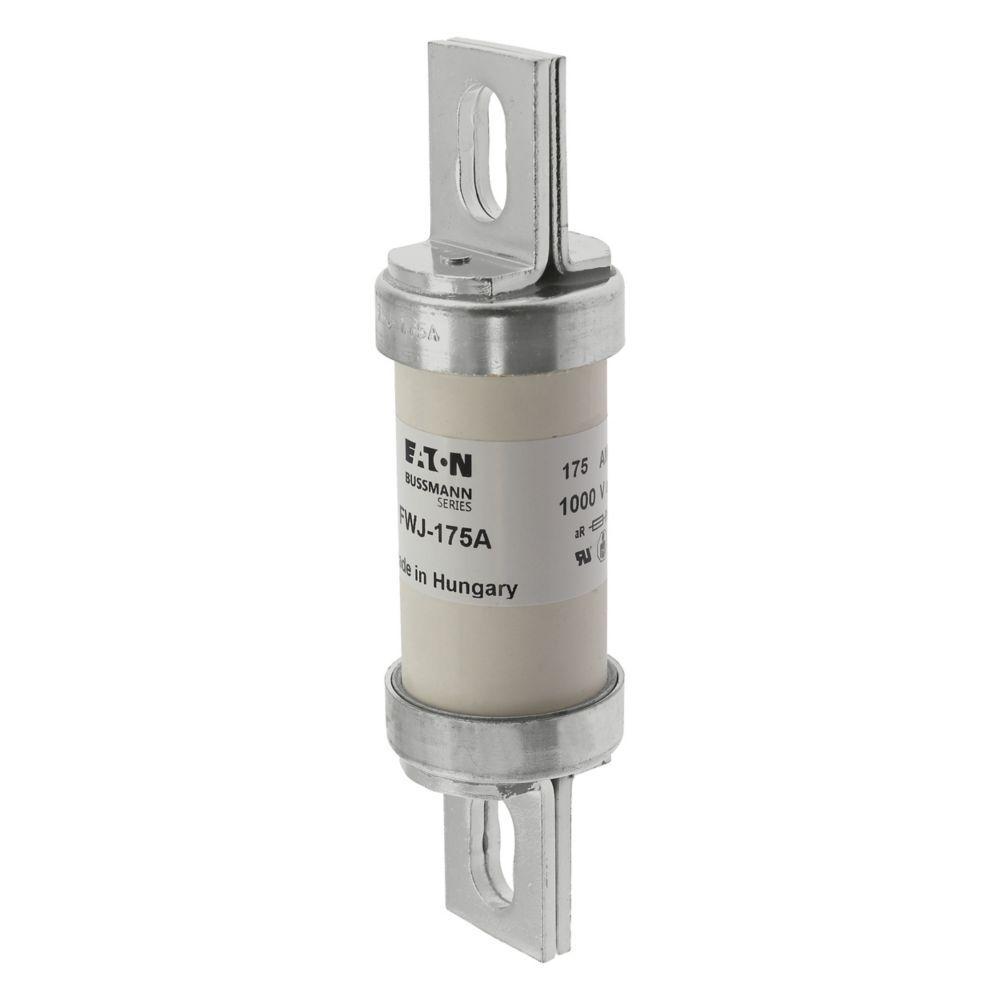

Bussmann FWJ-175A High Speed Fuse
Part Number # FWJ-175A
SKU # 2163308
Bussmann FWJ-175A Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | FWJ-175A |
| SKU #: | 2163308 |
| Amperage Rating: | 175, 175 A |
| Body Type: | Cylindrical |
| Frequency Rating: | 45 to 1000, 45 to 1000 Hz |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 25, 25 kA |
| Rejection/Non-Rejection: | Non-Rejection |
| Series: | FWJ |
| Terminal Type: | Blade, Blade End |
| Type: | Fast Acting, Fast Acting Semi-Conductor |
| Material: | Ceramic |
| Mounting type: | Bolt-In, Bolted-In |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121625 |
| UPC: | 00051712796217 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann FWJ-175A High Speed Fuse
Brand: Bussmann
Part Number: FWJ-175A
Bussmann High Speed Fuse, Fast Acting Semi-Conductor, Series: FWJ, Non-Indicating, Non-Rejection, 175 A, 1000 V, 25 kA Interrupt, 45 to 1000 Hz Frequency, Blade End Terminal, Bolted-In Mounting, Cylindrical Body, Single Element, Ceramic, 1.526 in Dia x 5.685 in L Body
Additional Description: BUSS-FWJ-175A (N) 175AMP 1000V AC SEMI-COND NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Bussmann series FWJ high speed fuse, 700 Vac/dc, 175A, 25 kAIC (35-200A), 100 kAIC (250-2000A), 50 kAIC at 800 Vdc (35-200A, 450-600A), None, High speed fuse, Blade end X blade end, Stud
FWJ-175A Application
Critical Power, Electrical Assemblies, Panels and EOEMs, Industrial Facilities and Factory Facilities, Safety and Security Systems, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starter ApplicationsFWJ-175A Item Features
- Excellent DC performance
- Low arc voltage and low energy let-through
- Low wattage loss
- Superior cycling capability
- https://www.youtube.com/watch?v=YMvqUyoETXk
FWJ-175A Standards
CE Marking|CSA Certified|UL Listed File No. E91958|UL JFHR2SKU #2163308Part Number #FWJ-175AUNSPSC39121625UPC00051712796217
