Part Number # FWJ-350A
SKU # 2121074
Image provided may only be a representation of
final product and may include optional equipment
FWJ-350A

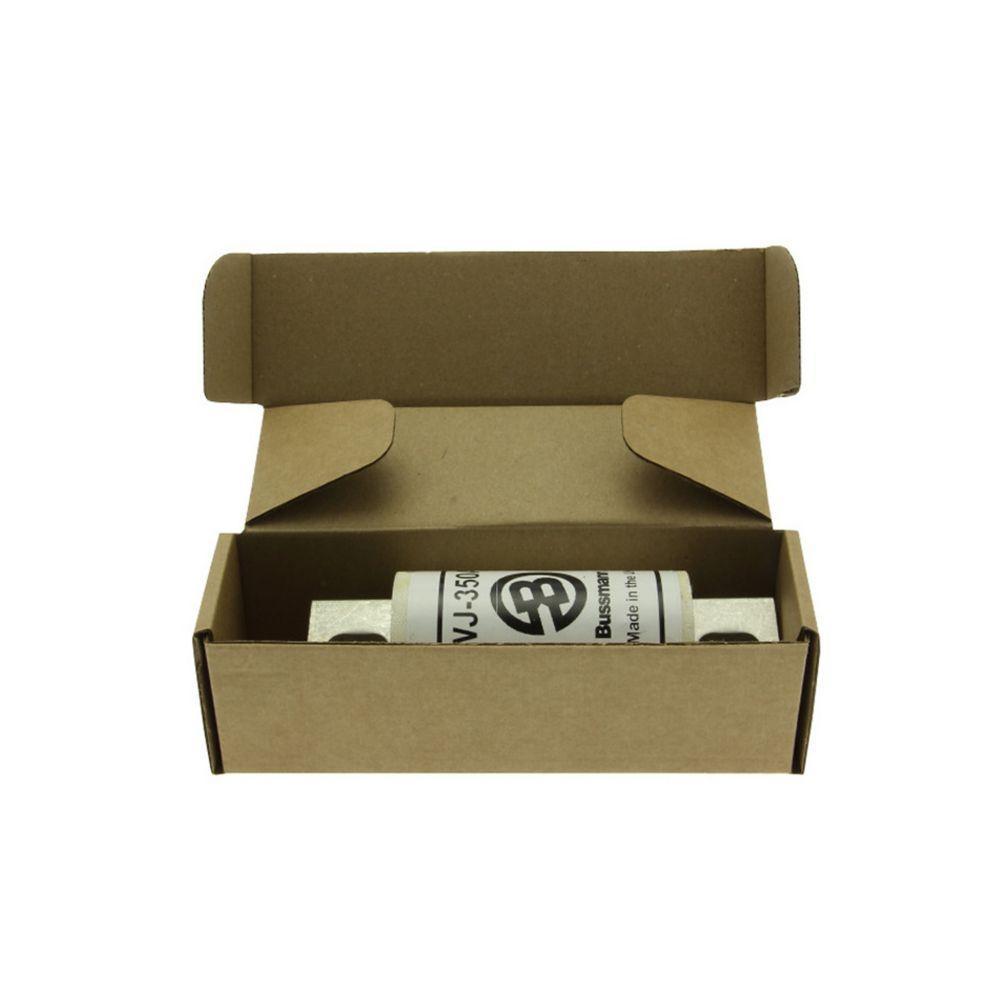

Bussmann FWJ-350A High Speed Fuse
Part Number # FWJ-350A
SKU # 2121074
Bussmann FWJ-350A Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | FWJ-350A |
| SKU #: | 2121074 |
| Amperage Rating: | 350, 350 A |
| Body Type: | Cylindrical |
| Frequency Rating: | 45 to 1000, 45 to 1000 Hz |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 100, 25 kA |
| Rejection/Non-Rejection: | Non-Rejection |
| Series: | FWJ |
| Terminal Type: | Blade, Blade End |
| Type: | Fast Acting, Fast Acting Semi-Conductor |
| Material: | Ceramic |
| Mounting type: | Stud |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121625 |
| UPC: | 00051712796255 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann FWJ-350A High Speed Fuse
Brand: Bussmann
Part Number: FWJ-350A
Bussmann High Speed Fuse, Fast Acting Semi-Conductor, Series: FWJ, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 350 A, 1000 VAC, 25 kA Interrupt, 45 to 1000 Hz, Blade End Terminal, Stud Mount, Cylindrical Body, Single Element, Ceramic, 2 in Dia x 5.768 in L Body Size
Additional Description: BUSS-FWJ-350A (N) 350AMP 1000V AC SEMI-COND FUSE NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Bussmann series FWJ high speed fuse, 700 Vac (UL), 690 Vac (IEC), 800 Vdc (5-50A), 350A, 25 kAIC (35-200A), 100 kAIC (250-2000A), 50 kAIC at 800 Vdc (35-200A, 450-600A), None, High speed fuse, Blade end X blade end, Stud
FWJ-350A Application
Critical Power, Electrical Assemblies, Panels and EOEMs, Industrial Facilities and Factory Facilities, Safety and Security Systems, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starter ApplicationsFWJ-350A Item Features
- Excellent DC performance
- Low arc voltage and low energy let-through
- Low wattage loss
- Superior cycling capability
- Low arc voltage, excellent DC performance, superior cycling capability
- https://www.youtube.com/watch?v=YMvqUyoETXk
FWJ-350A Standards
CE Marking|CSA Certified|UL Listed File No. E91958|UL JFHR2SKU #2121074Part Number #FWJ-350AUNSPSC39121625UPC00051712796255
