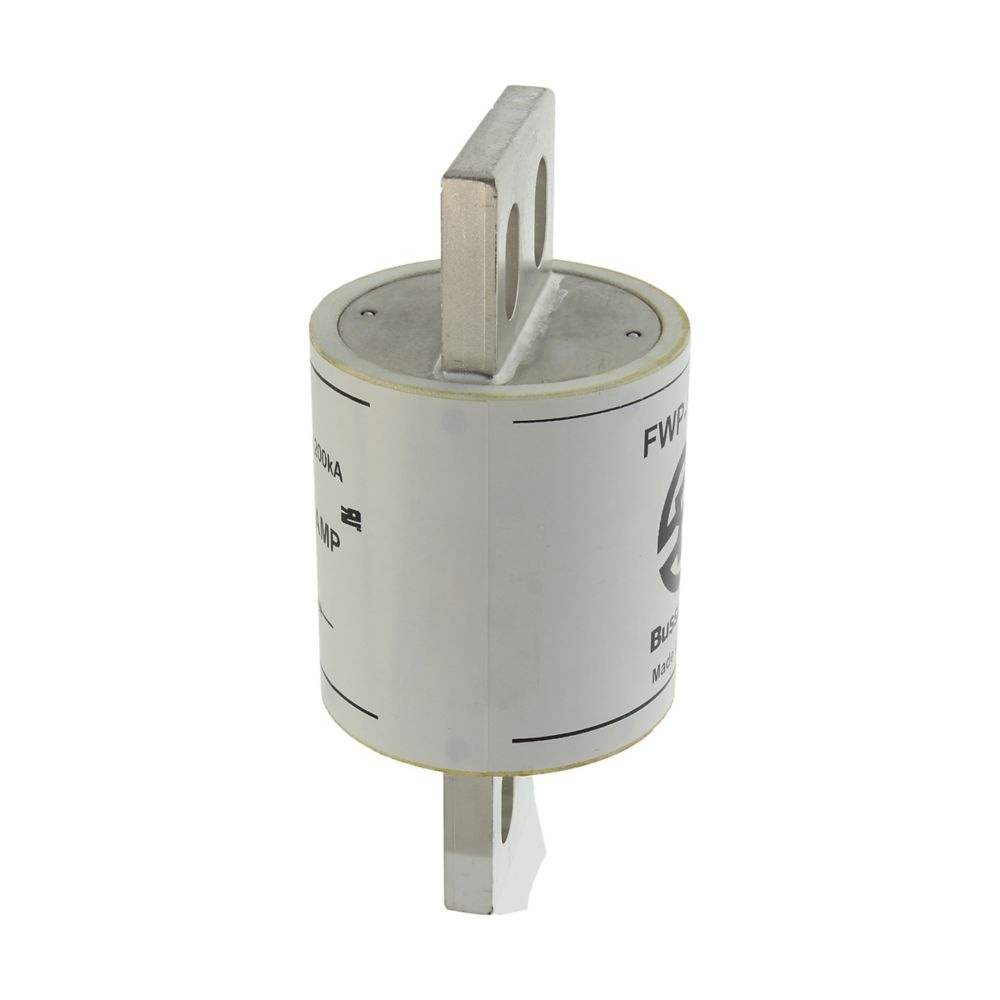

Bussmann FWP-1000A High Speed Fuse
Part Number # FWP-1000A
SKU # 2177490
Bussmann FWP-1000A Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | FWP-1000A |
| SKU #: | 2177490 |
| Amperage Rating: | 1, 1000, 1000 A |
| Body Type: | Cartridge Blade, Cylindrical |
| Frequency Rating: | 45 to 1000, 45 to 1000 Hz |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 200 kA at 700 VAC, 50 kA at 700 VDC, 50 kA, 50/200 |
| Rejection/Non-Rejection: | Non-Rejection |
| Series: | FWP |
| Terminal Type: | Blade End, Blade End x Blade End |
| Type: | Fast Acting, Fast Acting North American Style, Fast Acting Semi-Conductor |
| Material: | Ceramic, Fiberglass |
| Mounting type: | Stud |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121625 |
| UPC: | 00051712796071 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann FWP-1000A High Speed Fuse
Brand: Bussmann
Part Number: FWP-1000A
Bussmann High Speed Fuse, Fast Acting Semi-Conductor, Series: FWP, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 1000 A, 700 VAC, 50 kA Interrupt, 45 to 1000 Hz, Blade End Terminal, Stud Mount, Cylindrical Body, Single Element, Ceramic, 3.5 in Dia x 7.594 in L Body Size
Additional Description: BUSS-FWP-1000A 1000AMP 700V AC SEMI-COND
Catalog Description: Eaton Bussmann series FWP high speed fuse, 700 Vac (UL), 690 Vac (IEC), 500 Vdc (2-100A), 500 Vac, 1000A, 200 kAIC Vac, 50 kAIC at 700 Vdc, None, High speed fuse, Blade end X blade end, Stud
FWP-1000A Application
Critical Power, Electrical Assemblies, Panels and EOEMs, Industrial Facilities and Factory Facilities, Safety and Security Systems, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starter ApplicationsFWP-1000A Item Features
- Excellent DC performance
- Low arc voltage and low energy let-through
- Low wattage loss in a compact size
- Used with finger safe holders/blocks
- Superior cycling capability
- Low arc voltage, excellent DC performance, superior cycling capability
- https://www.youtube.com/watch?v=YMvqUyoETXk
FWP-1000A Standards
CE Marking|CSA Certified|RoHS Compliant|UL ListedSKU #2177490Part Number #FWP-1000AUNSPSC39121625UPC00051712796071
