Bussmann FWP-100A22F High Speed Fuse
Part Number # FWP-100A22F
SKU # 2139903
Bussmann FWP-100A22F Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | FWP-100A22F |
| SKU #: | 2139903 |
| Amperage Rating: | 100, 100 A |
| Body Type: | Cartridge, Cylindrical |
| Class: | AR |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 50 kA, 50/200 |
| Rejection/Non-Rejection: | Non-Rejection |
| Series: | FWP |
| Terminal Type: | Ferrule, Ferrule End |
| Type: | Fast Acting |
| Material: | Ceramic, Fiberglass |
| Mounting type: | Holder |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121625 |
| UPC: | 00051712370882 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.

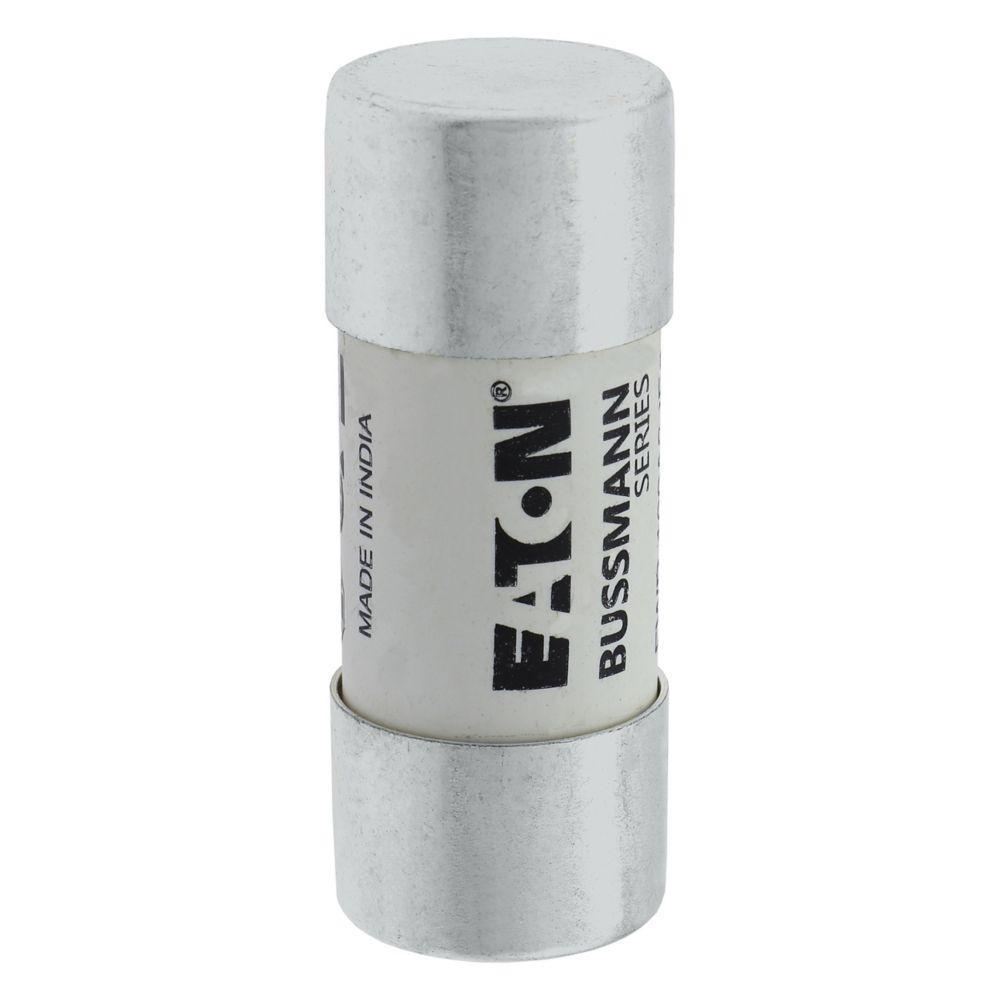

Bussmann FWP-100A22F High Speed Fuse
Brand: Bussmann
Part Number: FWP-100A22F
Bussmann High Speed Fuse, Series: FWP, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 100 A, 700 VAC, 50 kA Interrupt, Class: aR, Ferrule End Terminal, Holder Mount, Cartridge Body, Single Element, Ceramic, 0.875 in Dia x 2.283 in L Body Size
Additional Description: BUSS-FWP-100A22F 100AMP 700V ac 22 X 58MM FERRULE
Catalog Description: Eaton Bussmann series FWP high speed fuse, 700 Vac (IEC), 700 Vdc (UL), 100A, 200 kAIC at 300 Vdc, 50 kAIC at 300 Vdc, Non Indicating, High speed fuse, Ferrule end X ferrule end, Class aR, White, Ceramic
FWP-100A22F Application
Electrical Assemblies, Panels, EOEMs, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starters Applications, Safety and Security Systems, Industrial Facilities and Factories - Facility and Critical PowerFWP-100A22F Item Features
- Low arc voltage and low energy let-through
- Excellent DC performance
- Used with finger safe holders/blocks
- Low wattage loss
- Superior cycling capability
- 200 kA and 50 kA at 300 VDC interrupt rating
- Without striker
- https://www.youtube.com/watch?v=YMvqUyoETXk
FWP-100A22F Standards
CSA Certified ,UL Recognized ,UL Recognized ,CSA Certified ,CSA Certified ,UL Recognized ,UL Recognized ,CSA gecertificeerd,RoHS Compliant,CE Marked,RoHS-konform,CE-Kennzeichnung,Zgodny z wymogami RoHS,Uzyskano oznaczenie CE,CE-markering,RoHS-compliantSKU #2139903Part Number #FWP-100A22FUNSPSC39121625UPC00051712370882
Image provided may only be a representation of final product and may include optional equipment
