Part Number # FWP-10A14F
SKU # 7780
FWP-10A14F
Bussmann FWP-10A14F High Speed Fuse
Part Number # FWP-10A14F
SKU # 7780
Bussmann FWP-10A14F Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | FWP-10A14F |
| SKU #: | 7780 |
| Amperage Rating: | 10, 10 A |
| Body Type: | Cylindrical |
| Class: | AR |
| Frequency Rating: | 45 to 1000, 45 to 1000 Hz |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 200 kA, 50/200 |
| Rejection/Non-Rejection: | Non-Rejection |
| Series: | FWP |
| Terminal Type: | Ferrule, Ferrule End |
| Type: | Fast Acting |
| Material: | Ceramic, Fiberglass |
| Mounting type: | Holder |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121625 |
| UPC: | 00051712795920 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann FWP-10A14F High Speed Fuse
Brand: Bussmann
Part Number: FWP-10A14F
Bussmann High Speed Fuse, Fast Acting, Series: FWP, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 10 A, 700 VAC, 200 kA Interrupt, Class: aR, 45 to 1000 Hz, Ferrule End Terminal, Holder Mount, Cylindrical Body, Single Element, Ceramic, 0.563 in Dia x 2 in L Body Size
Additional Description: BUSS-FWP-10A14F 10AMP 700V AC FERRULE 14.3 X 50.8MM
Catalog Description: Eaton Bussmann series FWP high speed fuse, 700 Vac (UL), 700 Vdc (UL), 690 Vac (IEC), 10A, 200 kAIC at 700 Vac, 50 kAIC at 700 Vdc, Non Indicating, High speed fuse, Ferrule end X ferrule end, Class aR, White, Ceramic
FWP-10A14F Application
Electrical Assemblies, Panels, EOEMs, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starters Applications, Safety and Security Systems, Industrial Facilities and Factories - Facility and Critical PowerFWP-10A14F Item Features
- Excellent cycling capability and DC performance
- Low arc voltage and low energy let-through
- Low wattage loss in a compact size
- Used with finger safe holders/blocks
- https://www.youtube.com/watch?v=YMvqUyoETXk
FWP-10A14F Standards
CE Marking|CSA 1422|RoHS Compliant|UL Listed File No. E56412|UL JFHR2 File No. E91958SKU #7780Part Number #FWP-10A14FUNSPSC39121625UPC00051712795920

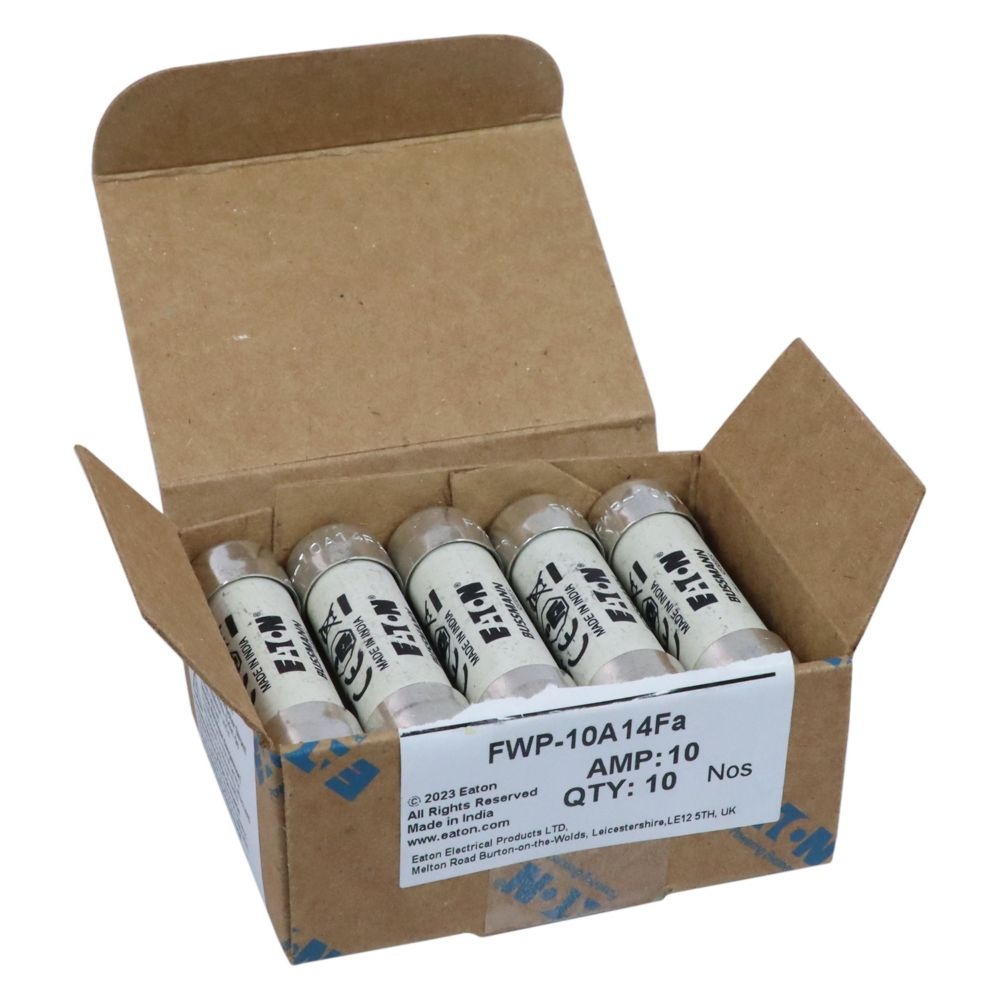

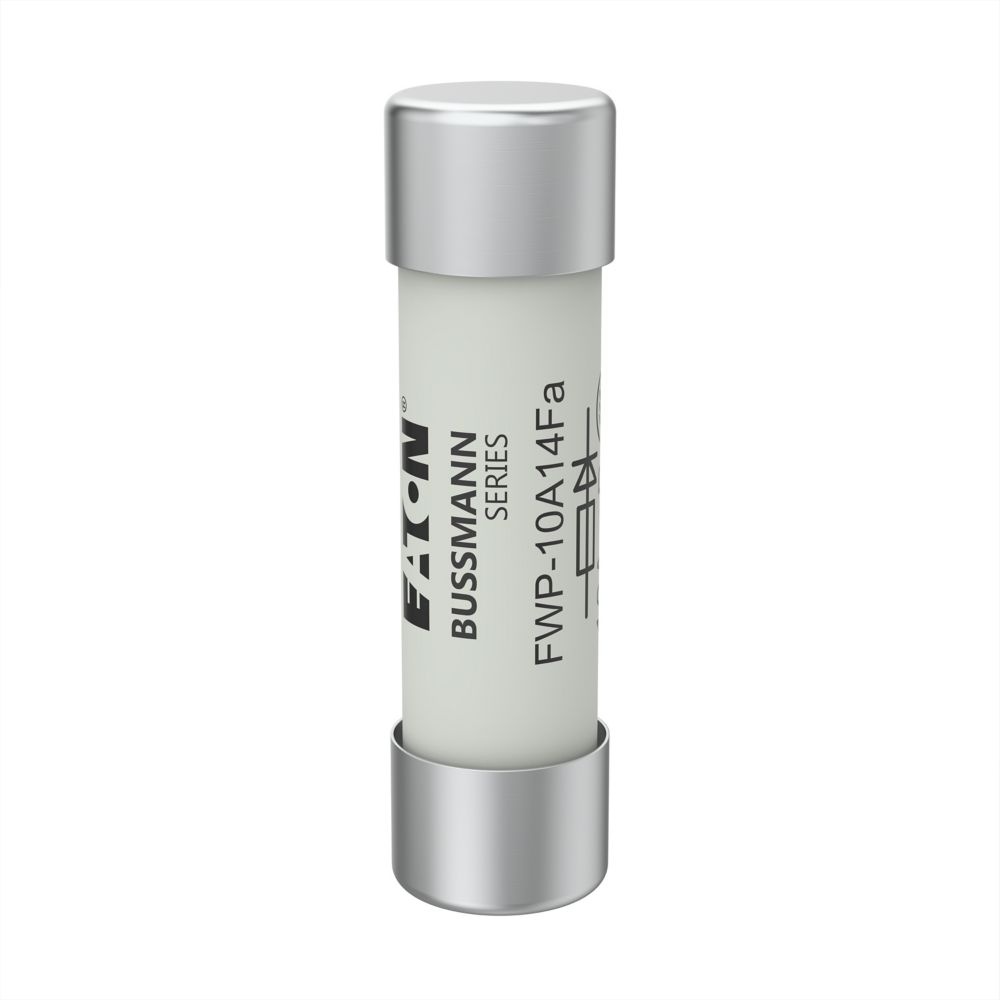

Image provided may only be a representation of final product and may include optional equipment
