Part Number # FWP-20A14F
SKU # 2246332

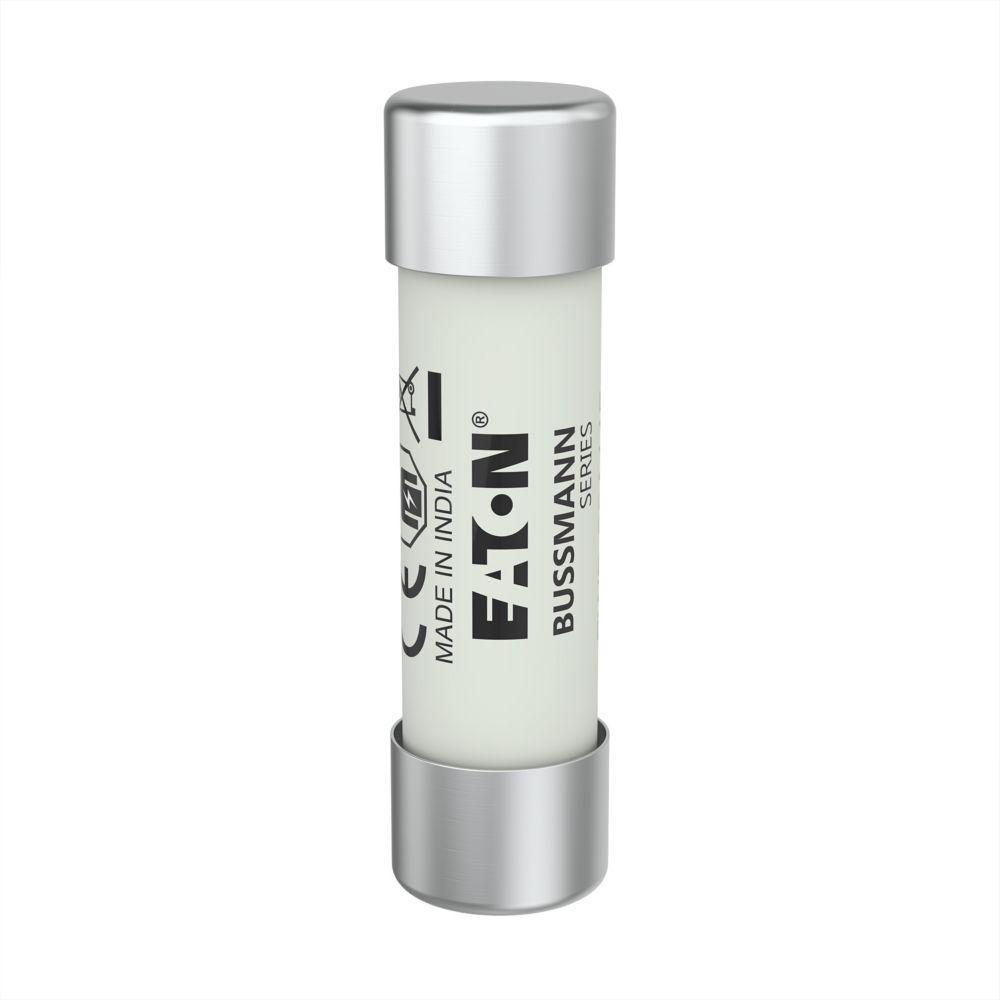

Image provided may only be a representation of
final product and may include optional equipment
FWP-20A14F
Bussmann FWP-20A14F High Speed Fuse
Part Number # FWP-20A14F
SKU # 2246332
Bussmann FWP-20A14F Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | FWP-20A14F |
| SKU #: | 2246332 |
| Amperage Rating: | 20, 20 A |
| Body Type: | Cylindrical |
| Class: | AR |
| Frequency Rating: | 45 to 1000, 45 to 1000 Hz |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 200, 200 kA, 50/200 |
| Rejection/Non-Rejection: | Non-Rejection |
| Series: | FWP |
| Terminal Type: | Ferrule, Ferrule End |
| Type: | Fast Acting |
| Material: | Ceramic, Fiberglass |
| Mounting type: | Holder |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121625 |
| UPC: | 00051712795944 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann FWP-20A14F High Speed Fuse
Brand: Bussmann
Part Number: FWP-20A14F
Bussmann High Speed Fuse, Fast Acting, Series: FWP, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 20 A, 700 VAC, 200 kA Interrupt, Class: aR, 45 to 1000 Hz, Ferrule End Terminal, Holder Mount, Cylindrical Body, Single Element, Ceramic, 0.563 in Dia x 2 in L Body Size
Additional Description: BUSS-FWP-20A14F 20AMP 700V AC FERRULE 14 X 51 MM
Catalog Description: Eaton Bussmann series FWP high speed fuse, 700 Vac (UL), 700 Vdc (UL), 690 Vac (IEC), 20A, 200 kAIC at 700 Vac, 50 kAIC at 700 Vdc, Non Indicating, High speed fuse, Ferrule end X ferrule end, Class aR, White, Ceramic
FWP-20A14F Application
Electrical Assemblies, Panels, EOEMs, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starters Applications, Safety and Security Systems, Industrial Facilities and Factories - Facility and Critical PowerFWP-20A14F Item Features
- Excellent cycling capability and DC performance
- Low arc voltage and low energy let-through
- Low wattage loss in a compact size
- Used with finger safe holders/blocks
- https://www.youtube.com/watch?v=YMvqUyoETXk
FWP-20A14F Standards
UL Recognized ,CSA Certified ,CSA Certified ,UL Recognized,RoHS Compliant,CE Marked,RoHS-konform,CE-KennzeichnungSKU #2246332Part Number #FWP-20A14FUNSPSC39121625UPC00051712795944
