Part Number # FWP-30A14F
SKU # 7775
FWP-30A14F

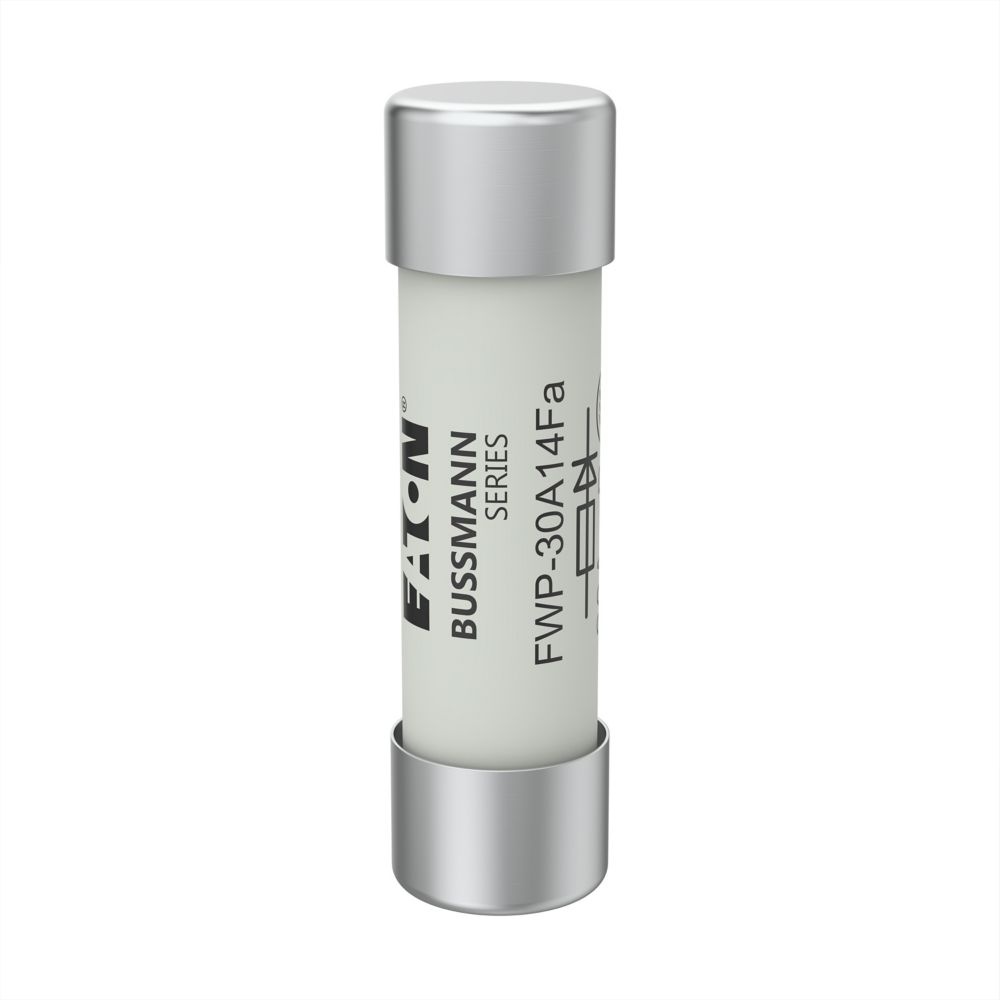

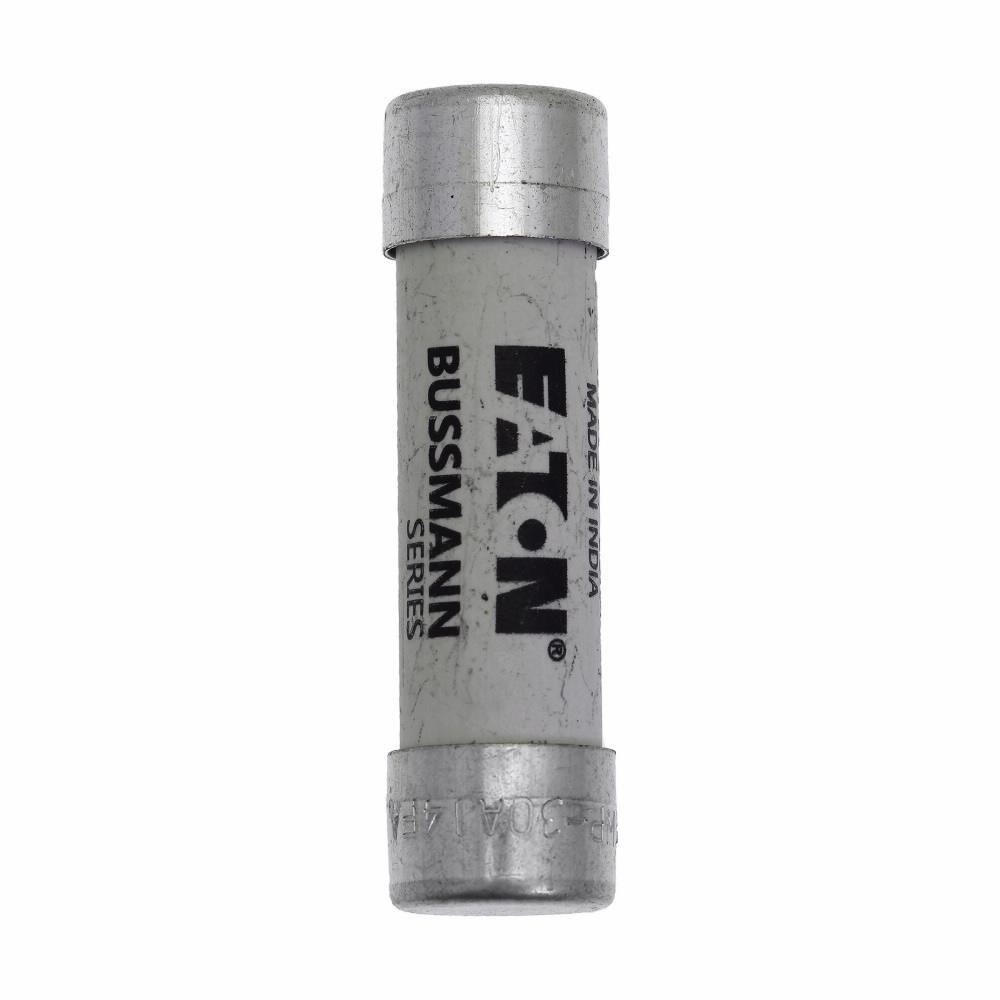

Bussmann FWP-30A14F High Speed Fuse
Part Number # FWP-30A14F
SKU # 7775
Bussmann FWP-30A14F Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | FWP-30A14F |
| SKU #: | 7775 |
| Amperage Rating: | 30, 30 A |
| Body Type: | Cylindrical |
| Class: | AR |
| Frequency Rating: | 45 to 1000, 45 to 1000 Hz |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 50 kA, 50/200 |
| Rejection/Non-Rejection: | Non-Rejection |
| Series: | FWP |
| Terminal Type: | Ferrule, Ferrule End |
| Type: | Fast Acting |
| Material: | Ceramic, Fiberglass |
| Mounting type: | Holder |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121625 |
| UPC: | 00051712795968 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann FWP-30A14F High Speed Fuse
Brand: Bussmann
Part Number: FWP-30A14F
Bussmann High Speed Fuse, Fast Acting, Series: FWP, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 30 A, 700 VAC, 50 kA Interrupt, Class: aR, 45 to 1000 Hz, Ferrule End Terminal, Holder Mount, Cylindrical Body, Single Element, Ceramic, 0.563 in Dia x 2 in L Body Size
Additional Description: BUSS-FWP-30A14F 30AMP 700V AC FERRULE 14 X 51 MM
Catalog Description: Eaton Bussmann series FWP high speed fuse, 700 Vac (UL), 700 Vdc (UL), 690 Vac (IEC), 30A, 200 kAIC at 700 Vac, 50 kAIC at 700 Vdc, Non Indicating, High speed fuse, Ferrule end X ferrule end, Class aR, White, Ceramic
FWP-30A14F Application
Electrical Assemblies, Panels, EOEMs, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starters Applications, Safety and Security Systems, Industrial Facilities and Factories - Facility and Critical PowerFWP-30A14F Item Features
- Excellent cycling capability and DC performance
- Low arc voltage and low energy let-through
- Low wattage loss in a compact size
- Used with finger safe holders/blocks
- https://www.youtube.com/watch?v=YMvqUyoETXk
FWP-30A14F Standards
CE Marking|CSA 1422|RoHS Compliant|UL Listed File No. E56412|UL JFHR2 File No. E91958SKU #7775Part Number #FWP-30A14FUNSPSC39121625UPC00051712795968
Image provided may only be a representation of final product and may include optional equipment
