Part Number # FWP-40A22F
SKU # 2257201
Image provided may only be a representation of
final product and may include optional equipment
FWP-40A22F

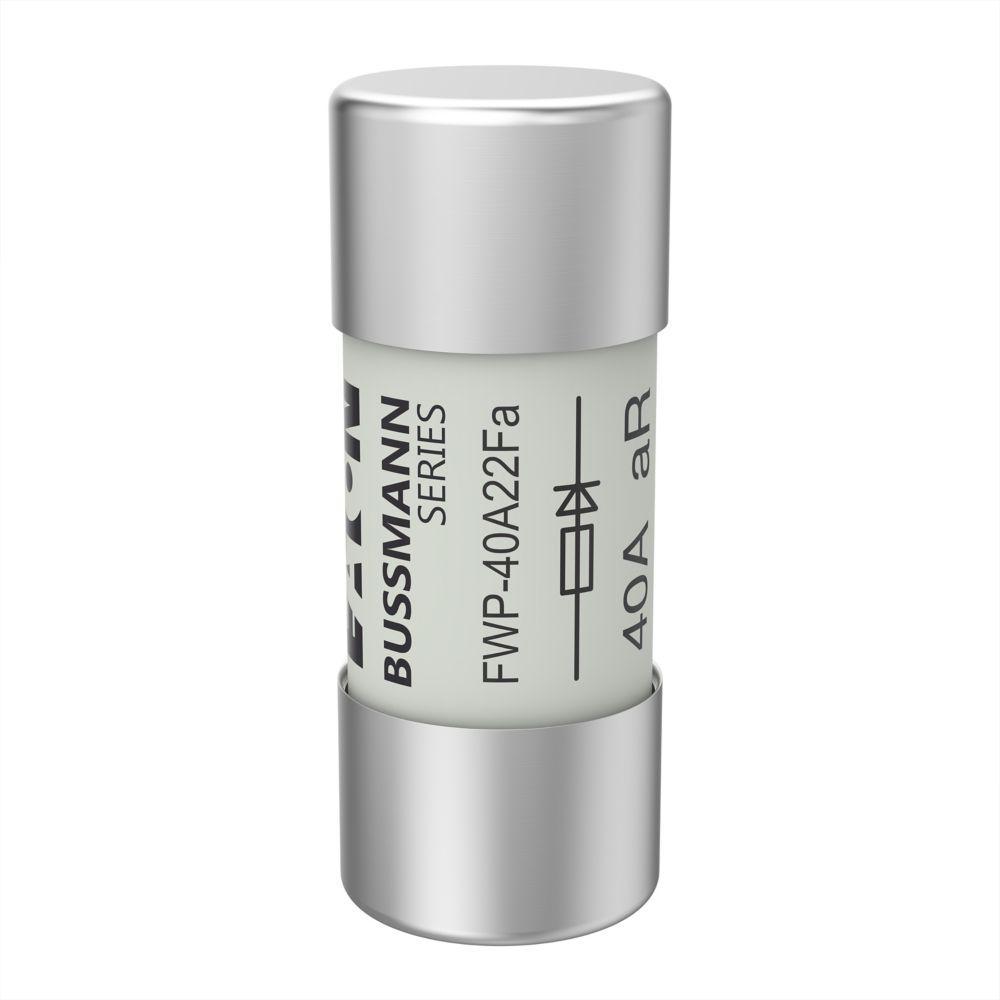

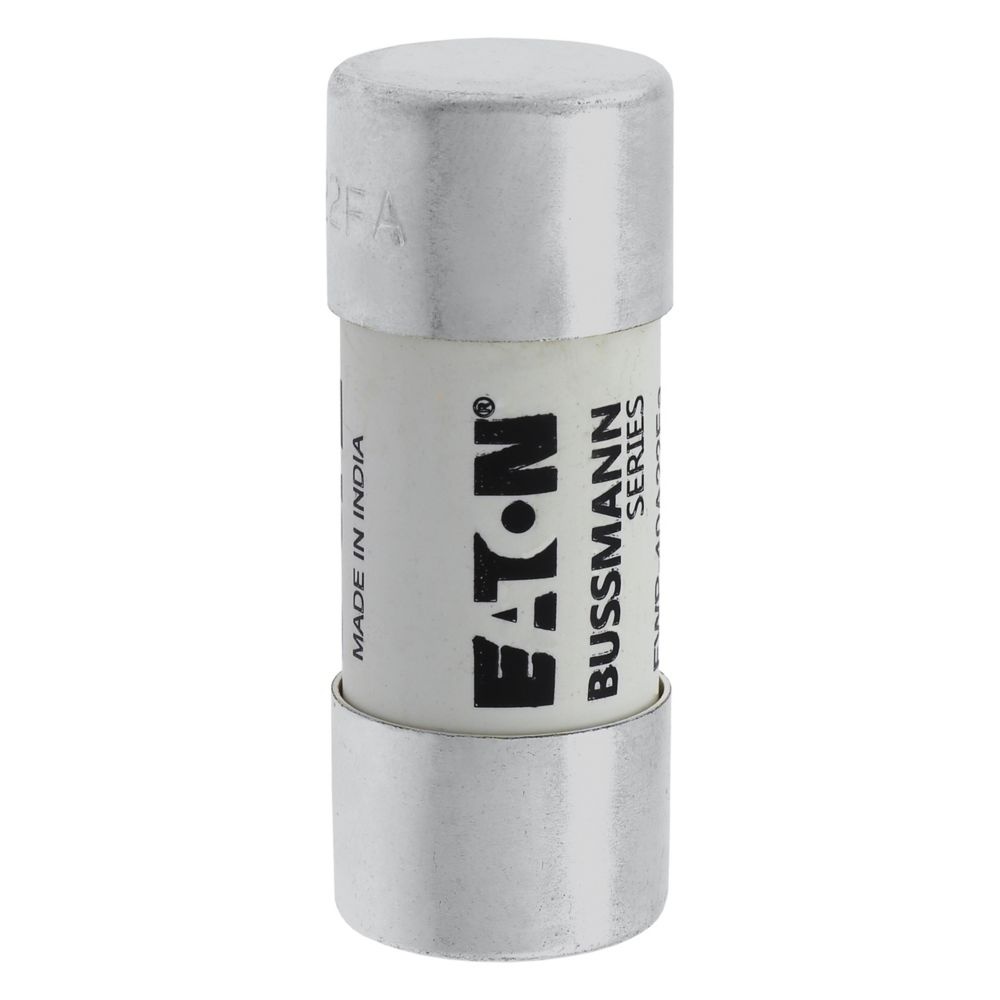

Bussmann FWP-40A22F High Speed Fuse
Part Number # FWP-40A22F
SKU # 2257201
Bussmann FWP-40A22F Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | FWP-40A22F |
| SKU #: | 2257201 |
| Amperage Rating: | 40, 40 A |
| Body Type: | Cylindrical |
| Class: | AR |
| Frequency Rating: | 45 to 1000, 45 to 1000 Hz |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 200 kA, 50/200 |
| Rejection/Non-Rejection: | Non-Rejection |
| Series: | FWP |
| Terminal Type: | Ferrule, Ferrule End |
| Type: | Fast Acting |
| Material: | Ceramic, Fiberglass |
| Mounting type: | Holder |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121625 |
| UPC: | 00051712796552 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann FWP-40A22F High Speed Fuse
Brand: Bussmann
Part Number: FWP-40A22F
Bussmann High Speed Fuse, Fast Acting, Series: FWP, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 40 A, 700 VAC, 200 kA Interrupt, Class: aR, 45 to 1000 Hz, Ferrule End Terminal, Holder Mount, Cylindrical Body, Single Element, Ceramic, 0.875 in Dia x 2.283 in L Body Size
Additional Description: BUSS-FWP-40A22F (N) 40AMP 700V ac 22 X 58MM FERRULE NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Bussmann series FWP high speed fuse, 700 Vac (IEC), 700 Vdc (UL), 40A, 200 kAIC at 300 Vdc, 50 kAIC at 300 Vdc, Non Indicating, High speed fuse, Ferrule end X ferrule end, Class aR, White, Ceramic
FWP-40A22F Application
Electrical Assemblies, Panels, EOEMs, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starters Applications, Safety and Security Systems, Industrial Facilities and Factories - Facility and Critical PowerFWP-40A22F Item Features
- Excellent cycling capability and DC performance
- Low arc voltage and low energy let-through
- Low wattage loss in a compact size
- Used with finger safe holders/blocks
- https://www.youtube.com/watch?v=YMvqUyoETXk
FWP-40A22F Standards
CE Marking|CSA 1422|RoHS Compliant|UL Listed File No. E56412|UL JFHR2 File No. E91958SKU #2257201Part Number #FWP-40A22FUNSPSC39121625UPC00051712796552
