Part Number # FWP-50A14F
SKU # 45883
FWP-50A14F

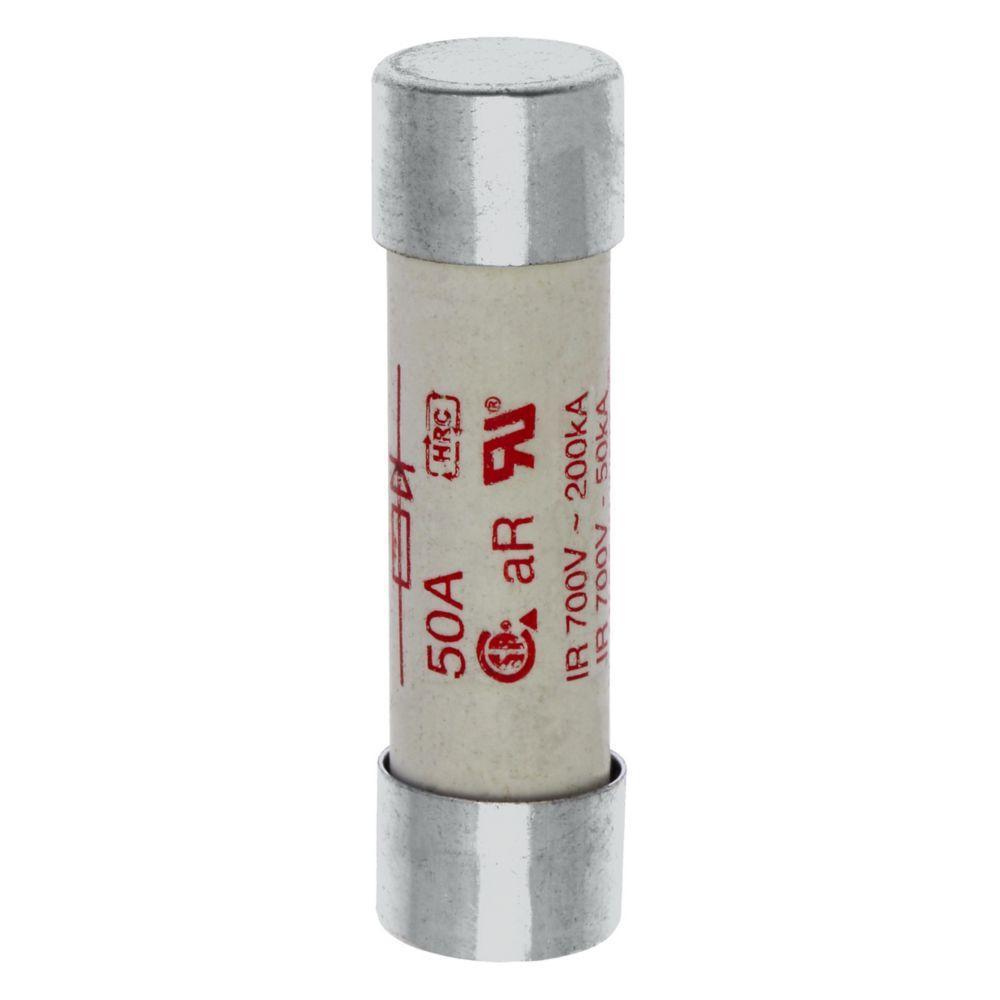

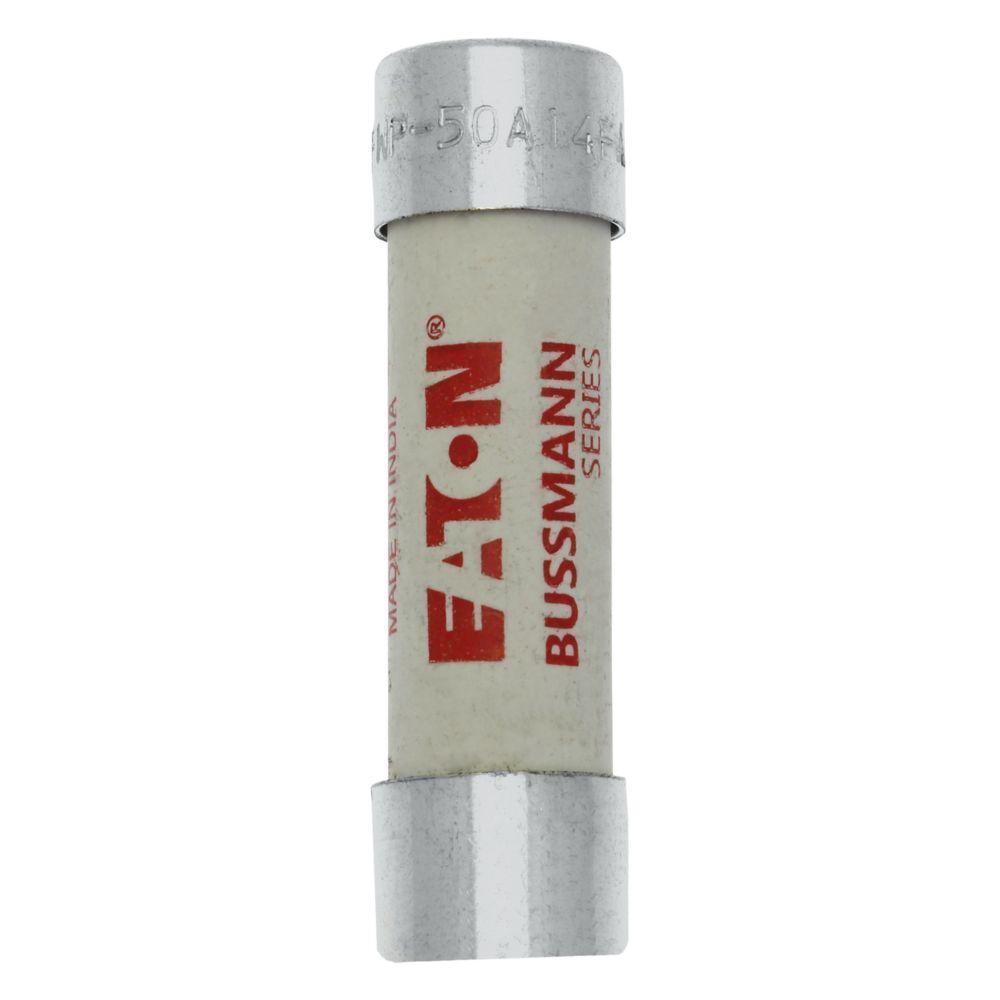

Bussmann FWP-50A14F High Speed Fuse
Part Number # FWP-50A14F
SKU # 45883
Bussmann FWP-50A14F Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | FWP-50A14F |
| SKU #: | 45883 |
| Amperage Rating: | 50, 50 A |
| Body Type: | Cartridge, Cylindrical |
| Class: | AR |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 50 kA, 50/200 |
| Rejection/Non-Rejection: | Non-Rejection |
| Series: | FWP |
| Terminal Type: | Ferrule, Ferrule End |
| Type: | Fast Acting |
| Material: | Ceramic, Fiberglass |
| Mounting type: | Holder |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121625 |
| UPC: | 00051712370868 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann FWP-50A14F High Speed Fuse
Brand: Bussmann
Part Number: FWP-50A14F
Bussmann High Speed Fuse, Series: FWP, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 50 A, 700 VAC, 50 kA Interrupt, Class: aR, Ferrule End Terminal, Holder Mount, Cartridge Body, Single Element, Ceramic, 0.563 in Dia x 2 in L Body Size
Additional Description: BUSS-FWP-50A14F 50AMP 700V AC FERRULE 14 X 51 MM SEMI-COND.F
Catalog Description: Eaton Bussmann series FWP high speed fuse, 700 Vac (UL), 700 Vdc (UL), 690 Vac (IEC), 50A, 200 kAIC at 700 Vac, 50 kAIC at 700 Vdc, Non Indicating, High speed fuse, Ferrule end X ferrule end, Class aR, White, Ceramic
FWP-50A14F Application
Electrical Assemblies, Panels, EOEMs, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starters Applications, Safety and Security Systems, Industrial Facilities and Factories - Facility and Critical PowerFWP-50A14F Item Features
- Excellent cycling capability and DC performance
- Low arc voltage and low energy let-through
- Low wattage loss in a compact size
- Used with finger safe holders/blocks
- Superior cycling capability
- 200 kA rms symmetrical and 50 kA at 800 VDC interrupt rating
- Without striker
- https://www.youtube.com/watch?v=YMvqUyoETXk
FWP-50A14F Standards
UL Recognized ,CSA Certified ,CSA gecertificeerd ,UL Recognized,RoHS Compliant,CE Marked,CE-markering,RoHS-compliantSKU #45883Part Number #FWP-50A14FUNSPSC39121625UPC00051712370868
Image provided may only be a representation of final product and may include optional equipment
