Part Number # FWP-63A22F
SKU # 2260958
Image provided may only be a representation of
final product and may include optional equipment
FWP-63A22F

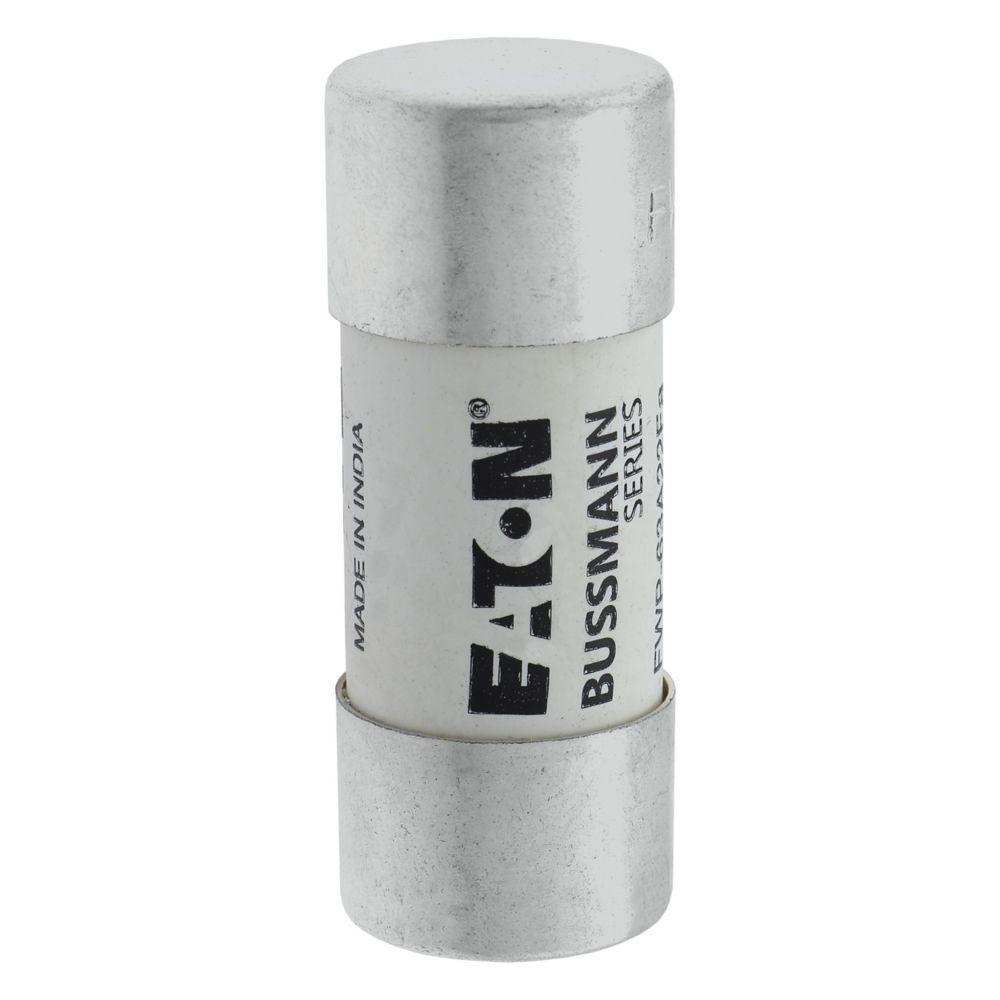

Bussmann FWP-63A22F High Speed Fuse
Part Number # FWP-63A22F
SKU # 2260958
Bussmann FWP-63A22F Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | FWP-63A22F |
| SKU #: | 2260958 |
| Amperage Rating: | 63, 63 A |
| Body Type: | Cylindrical |
| Class: | AR |
| Frequency Rating: | 45 to 1000, 45 to 1000 Hz |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 200 kA, 50/200 |
| Rejection/Non-Rejection: | Non-Rejection |
| Series: | FWP |
| Terminal Type: | Ferrule, Ferrule End |
| Type: | Fast Acting |
| Material: | Ceramic |
| Mounting type: | Holder |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121625 |
| UPC: | 00051712796576 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann FWP-63A22F High Speed Fuse
Brand: Bussmann
Part Number: FWP-63A22F
Bussmann High Speed Fuse, Fast Acting, Series: FWP, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 63 A, 700 VAC, 200 kA Interrupt, Class: aR, 45 to 1000 Hz, Ferrule End Terminal, Holder Mount, Cylindrical Body, Single Element, Ceramic, 0.875 in Dia x 2.283 in L Body Size
Additional Description: BUSS-FWP-63A22F 63AMP 700V ac 22 X 58MM FERRULE
Catalog Description: Eaton Bussmann series FWP high speed fuse, 700 Vac, 700 Vdc (UL), 63A, 200 kAIC at 300 Vdc, 50 kAIC at 300 Vdc, Non Indicating, High speed fuse, Ferrule end X ferrule end, Class aR, White, Ceramic
FWP-63A22F Application
Electrical Assemblies, Panels, EOEMs, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starters Applications, Safety and Security Systems, Industrial Facilities and Factories - Facility and Critical PowerFWP-63A22F Item Features
- Excellent cycling capability and DC performance
- Low arc voltage and low energy let-through
- Low wattage loss in a compact size
- Used with finger safe holders/blocks
- https://www.youtube.com/watch?v=YMvqUyoETXk
FWP-63A22F Standards
CSA Certified ,UL Recognized ,CSA Certified ,UL Recognized ,CSA Certified ,UL Recognized ,UL Recognized ,CSA gecertificeerd,CE Marked,RoHS Compliant,RoHS-konform,Uzyskano oznaczenie CE,Zgodny z wymogami RoHS,CE-Kennzeichnung,RoHS-compliant,CE-markeringSKU #2260958Part Number #FWP-63A22FUNSPSC39121625UPC00051712796576
