Part Number # FWP-700A
SKU # 135032
FWP-700A

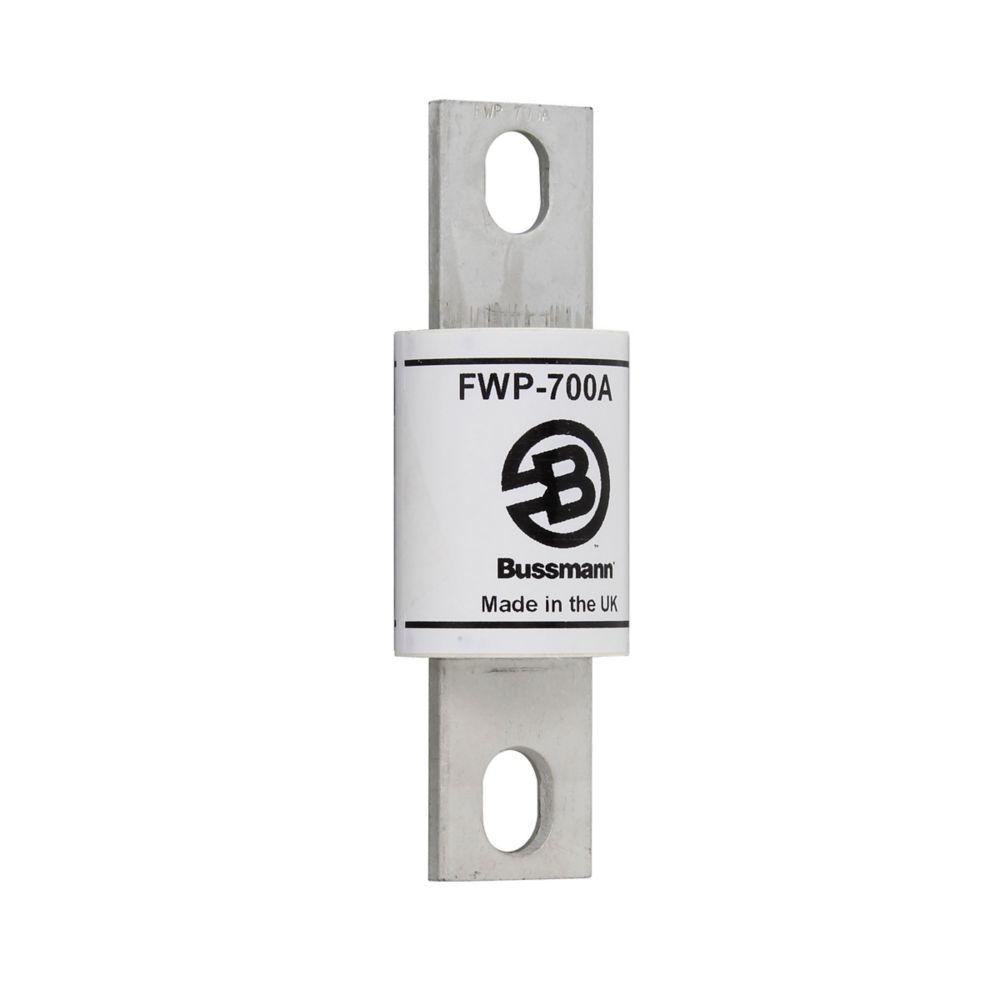

Bussmann FWP-700A High Speed Fuse
Part Number # FWP-700A
SKU # 135032
Bussmann FWP-700A Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | FWP-700A |
| SKU #: | 135032 |
| Amperage Rating: | 700, 700 A |
| Body Type: | Cartridge Blade, Cylindrical |
| Frequency Rating: | 45 to 1000, 45 to 1000 Hz |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 200 kA at 700 VAC, 50 kA at 700 VDC, 50 kA, 50/200 |
| Rejection/Non-Rejection: | Non-Rejection |
| Series: | FWP |
| Terminal Type: | Blade, Blade End, Blade End x Blade End |
| Type: | Fast Acting, Fast Acting Semi-Conductor, Fast Blow North American Style |
| Material: | Ceramic, Fiberglass |
| Mounting type: | Stud |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121625 |
| UPC: | 00051712796057 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann FWP-700A High Speed Fuse
Brand: Bussmann
Part Number: FWP-700A
Bussmann High Speed Fuse, Fast Acting Semi-Conductor, Series: FWP, Indicating/Non-Indicating: Non-Indicating, 700 A, 700 VAC, 50 kA Interrupt, 45 to 1000 Hz, Blade End Terminal, Stud Mount, Cylindrical Body, Ceramic, 2 in Dia x 6.63 in L Body Size
Additional Description: BUSS-FWP-700A 700AMP 700V AC SEMI-COND FUSE
Catalog Description: Eaton Bussmann series FWP high speed fuse, 250 Vac/dc, 700A, 200 kAIC Vac, 50 kAIC at 700 Vdc, None, High speed fuse, Blade end X blade end, Stud
FWP-700A Application
Critical Power, Electrical Assemblies, Panels and EOEMs, Industrial Facilities and Factory Facilities, Safety and Security Systems, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starter ApplicationsFWP-700A Item Features
- Excellent DC performance
- Low arc voltage and low energy let-through
- Low wattage loss in a compact size
- Used with finger safe holders/blocks
- Superior cycling capability
- Low arc voltage, excellent DC performance, superior cycling capability
- https://www.youtube.com/watch?v=YMvqUyoETXk
FWP-700A Standards
CE Marking|CSA Certified|RoHS Compliant|UL ListedSKU #135032Part Number #FWP-700AUNSPSC39121625UPC00051712796057
Image provided may only be a representation of final product and may include optional equipment
