Part Number # GDA-100MA
SKU # 7802
GDA-100MA
Bussmann GDA-100MA Fast Acting Fuse
Part Number # GDA-100MA
SKU # 7802
Bussmann GDA-100MA Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | GDA-100MA |
| SKU #: | 7802 |
| Interrupt Rating: | 1500 A |
| Response Time: | 60 min, 30 min, 10 ms, 3 s, 3 ms, 300 ms, 20 ms |
| Series: | GDA |
| Type: | Small Dimension |
| Mounting type: | Clip/Holder |
| UNSPSC: | 39121611 |
| UPC: | 00051712431170 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann GDA-100MA Fast Acting Fuse
Brand: Bussmann
Part Number: GDA-100MA
Bussmann Fast Acting Fuse, Small Dimension, Series: GDA, Non-Indicating, Non-Rejection, 100 mA, 250 VAC, 32 VDC, 1500 A Interrupt, 50 Hz Frequency, 60 min, 30 min, 10 ms, 3 s, 3 ms, 300 ms, 20 ms Response, Ferrule Terminal, Clip/Holder Mounting, Cylindrical Body, Single Element, Ceramic, 5.2 mm Dia x 20 mm H Body
Additional Description: BUSS-GDA-100MA (N) BUSS SMALL DIMENSION FUSE NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton GDA Series Fast-acting fuse, 0.100A, 250 Vac, 32 Vdc (self certified)
GDA-100MA Application
Electronic CircuitsGDA-100MA Item Features
- Fast acting for maximum protection
- High break capacity for use in higher fault energy electronic circuitry
- Silver plated brass end caps
- 60 min minimum at 1.5 In, 30 min maximum at 2.1 In, 10 ms minimum and 3 s maximum at 2.75 In, 3 ms minimum and 300 ms maximum at 4 In, 20 ms maximum at 10 In response time
- 1500 A at 250 VAC interrupt rating
- https://www.youtube.com/watch?v=YMvqUyoETXk
GDA-100MA Standards
UL Guide JDYX2, File No. E19180 Recognized|CSA File No. 53787|SEMKO File No. 413779, File No. 512433|IMQ File No. EB405|CCC File No. 2005010207155691|IEC 60127-2SKU #7802Part Number #GDA-100MAUNSPSC39121611UPC00051712431170

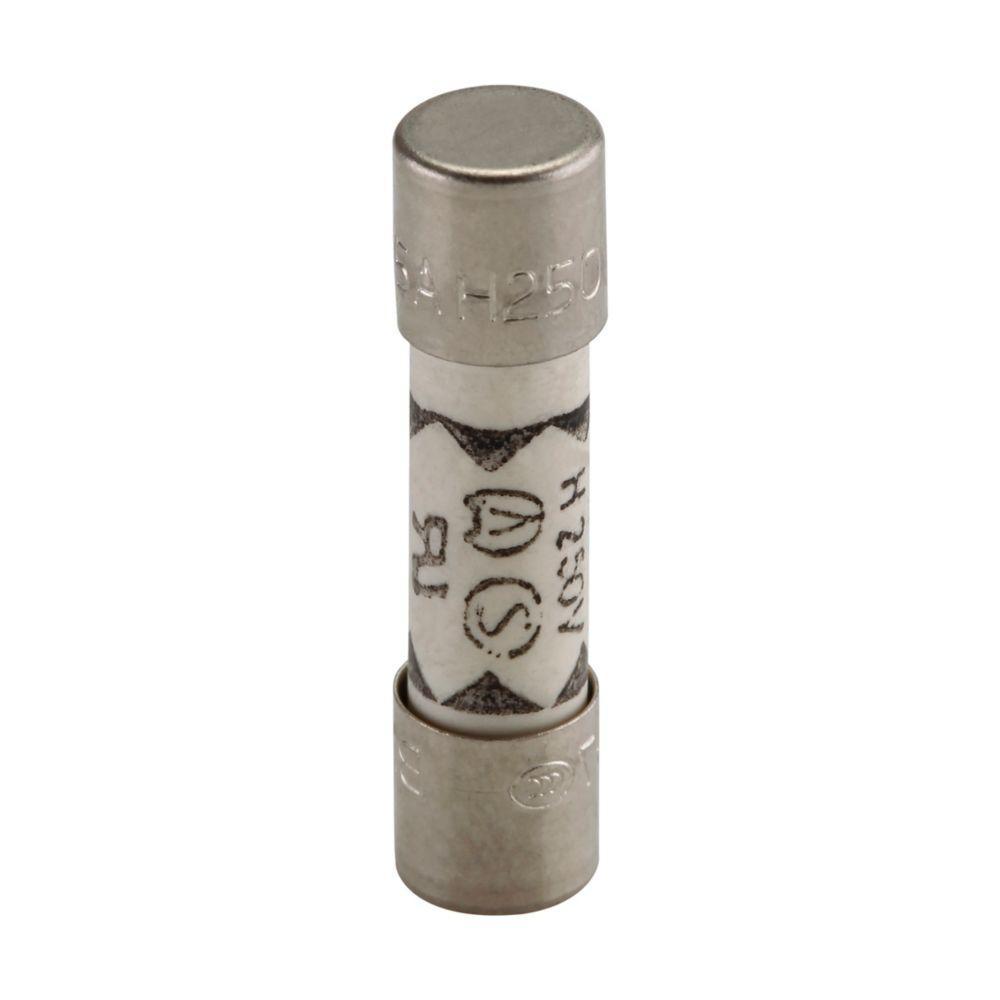

Image provided may only be a representation of final product and may include optional equipment
