Part Number # GDC-4A
SKU # 2247274
GDC-4A

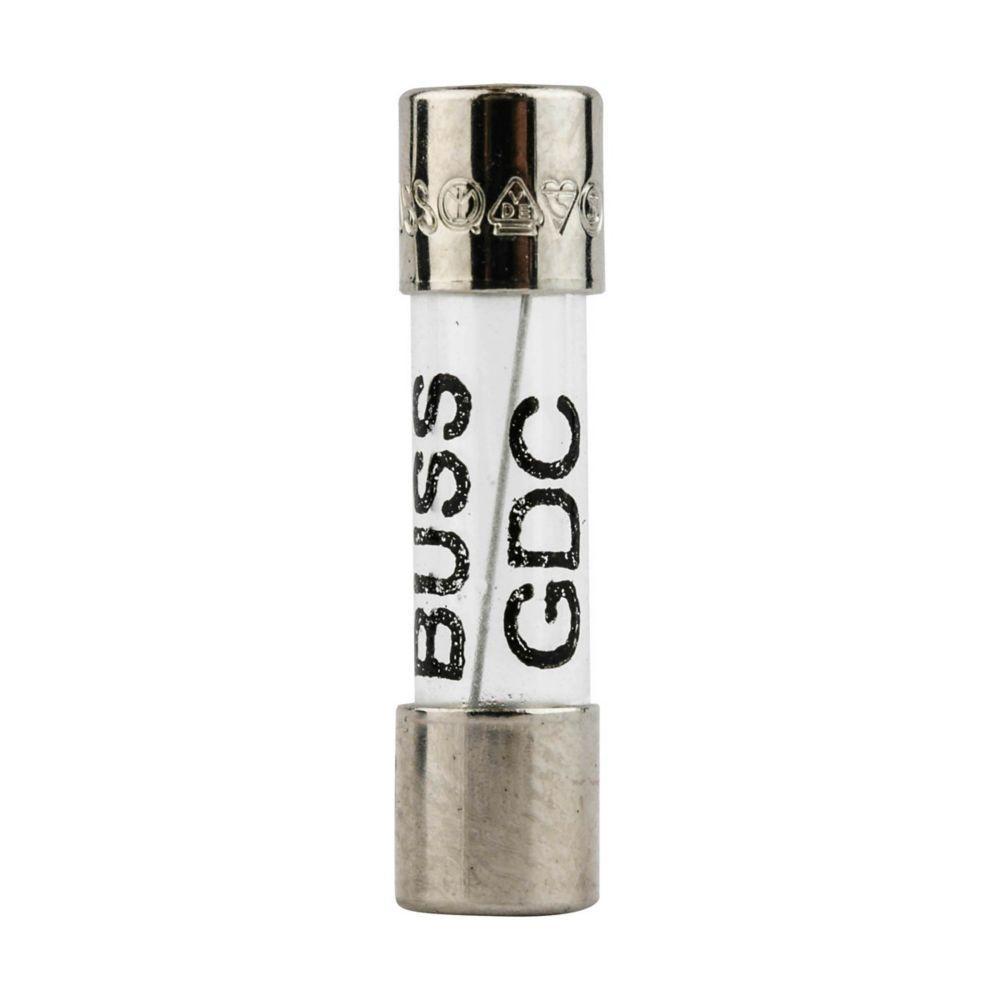

Bussmann GDC-4A Time Delay Fuse
Part Number # GDC-4A
SKU # 2247274
$35.95 / 5Each
Typical price:$73.05 / Each
Bussmann GDC-4A Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | GDC-4A |
| SKU #: | 2247274 |
| Response Time: | 2 min, 600 ms, 10 s, 150 ms, 3 s, 20 ms, 300 ms |
| Series: | GDC |
| UNSPSC: | 39121607 |
| UPC: | 00051712432375 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$35.95 / 5Each
Typical price:$73.05 / Each
Quantity:
- Bussmann Time Delay Fuse, Electronic Small Dimension, Series: GDC, Non-Indicating, Non-Rejection, 4 A, 250 V AC/32 V DC, 40 A Interrupt, 50 Hz, 2 min, 600 ms, 10 s, 150 ms, 3 s, 20 ms, 300 ms Response, Ferrule Terminal, Clip/Holder Mount, Cylindrical Body Type, Single Element, Glass, 5.2 mm Dia x 20 mm H Body Size
GDC-4A Application
Electronic CircuitsGDC-4A Item Features
- Time delay, low breaking capacity
- Glass tube, nickel plated brass end caps
- 40 A at 250 VAC interrupt rating
- 2 min maximum at 2.1 In, 600 ms minimum and 10 s maximum at 2.75 In, 150 ms minimum and 3 s maximum at 4 In, 20 ms minimum and 300 ms maximum at 10 In
- https://www.youtube.com/watch?v=YMvqUyoETXk
GDC-4A Standards
IEC 60127-2|cULus Guide JDYX2/JDYX8, File No. E19180 Recognized|IMQ File No. E1921, CA03.00530|MITI/JET File No. JET1641-31003-1005SKU #2247274Part Number #GDC-4AUNSPSC39121607UPC00051712432375
Image provided may only be a representation of final product and may include optional equipment
